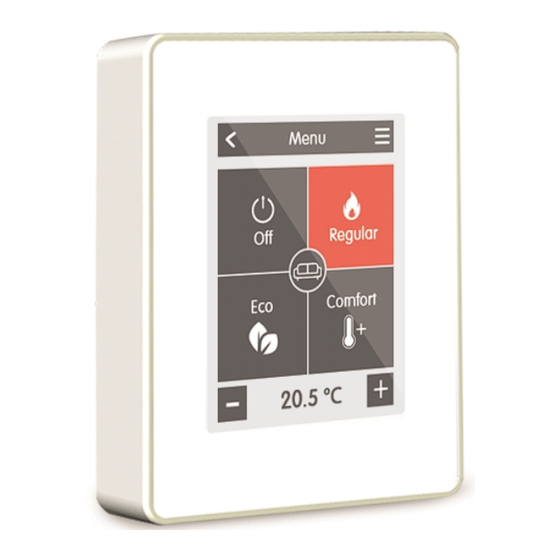

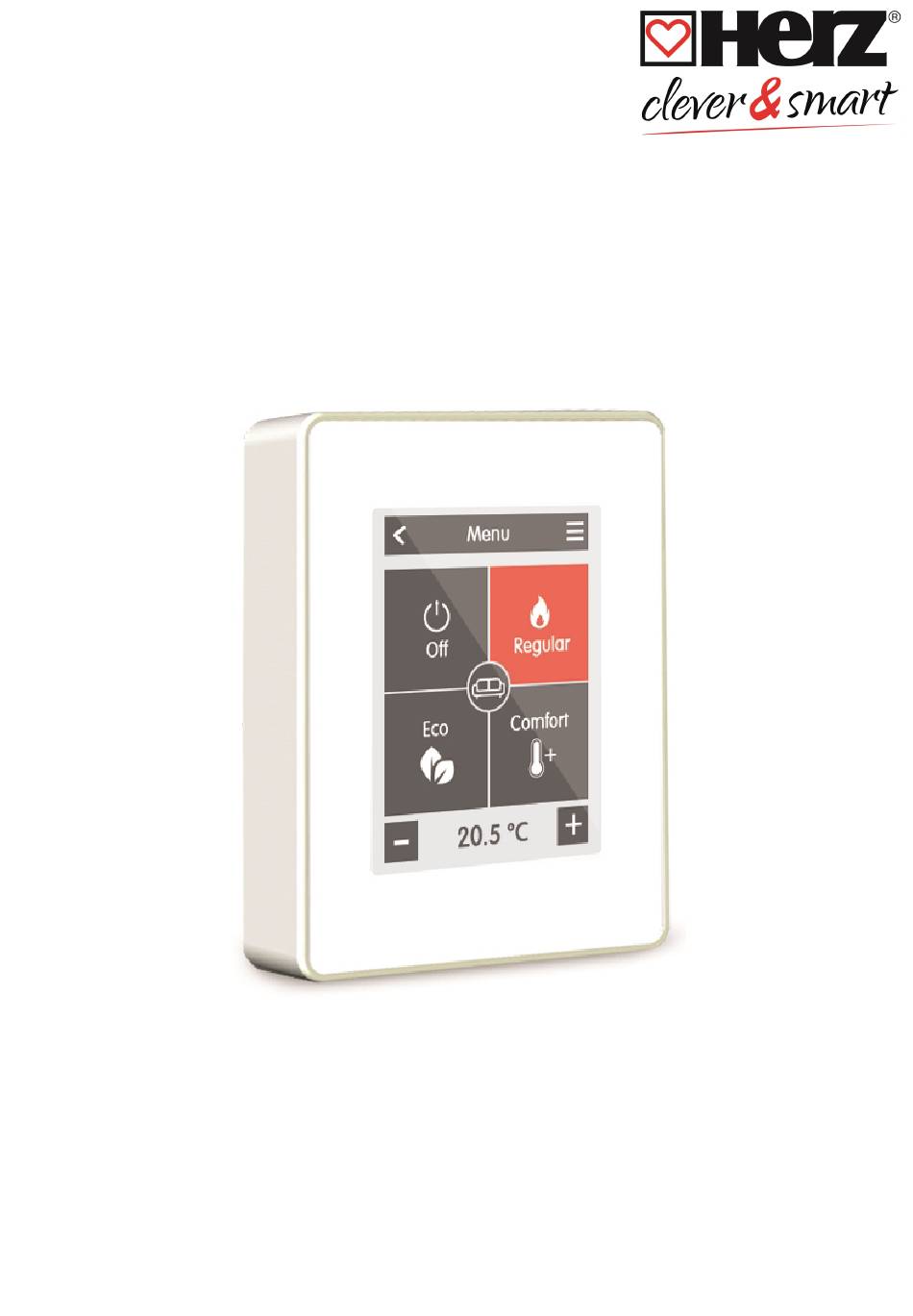

- Page 1 Installation and operating instruction HERZ clever&smart Room Controller 3 F810 21 Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
HERZ clever&smart Room Controller CONTENT Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description HERZ clever&smart Room Controller Technical Data Scope of Supply Installation HERZ clever&smart Room Controller installation Operation Room Overview Operating Mode... -
Page 3: Safety Instructions
HERZ clever&smart Room Controller Safety Instructions EG-Conformity By affixing the CE mark to the unit the manufacturer declares that the HERZ clever&smart Room Controller conforms to the following relevant safety regulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU EU RoHS Directive 2011/65/EU EU WEEE Directive 2012/19/EU (Reg.nr. -
Page 4: Warranty And Liability
HERZ clever&smart Room Controller Warranty and Liability The Unit has been manufactured and tested with regard to high quality and safety requirements. The warranty and liability shall not include, however, any injury to persons or material damage that is attributable to one or more of the following causes:... -
Page 5: Description Herz Clever&Smart Room Controller
HERZ clever&smart Room Controller 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. Terminating resistor (120 Ohm) pre-installed on one of the two CAN High/CAN Low connections, operating tool, switch HERZ clever&smart Room Controller installation guide... -
Page 6: Installation
When wall mounting, make sure that the cables are kept as short as possible (max. 40 mm for direct wall mounting), as unnecessary vein loops in the HERZ clever&smart Room Controller housing can lead to problems. When mounting on a switch box, make sure that the cables are kept as short as possible (strip cables max. - Page 7 Power supply 24 VDC, ensure correct polarity or it may cause damage to the unit! For the pin assignment of the CAN bus line on the HERZ clever&smart Control Box, please refer to the corresponding instructions for use or operating manual.
-
Page 8: Operation
Room temperature Outdoor temperature Current room temperature. Displayed as soon as an outdoor sensor is used or an outdoor sensor is activated on a HERZ clever&smart Control Box menu "Expert > Control Box > Heating circuit > Sensor outdoor". Multiroom selection... -
Page 9: Operating Mode
HERZ clever&smart Room Controller Operating Mode Overview > Operating Mode Menu Back/ Forward Navigate to the main menu Navigate back to the overview. Room Displays the selected space. Operating Modes The operating mode shown in colour is currently active and can be changed by selecting another mode. -
Page 10: Set Operation Hours
HERZ clever&smart Room Controller Set Operation Hours Overview > Operating Mode > Menu > Timer Setting of individual heating and cooling times for the selected room. Menu Operating Modes Opens the copy function. The function Selection of the operating mode to... -
Page 11: Expert Menu
HERZ clever&smart Room Controller Expert Menu Overview > Operating Mode > Menu > Expert Select Language Set the device language Date & Time Setting the time and date and automatic summertime/wintertime Settings changeover Parameterisation of the heating system Service Values... -
Page 12: Settings
Assigning rooms to heating zones switching outputs on the HERZ clever&smart Control Box. This menu Interface Mode is only visible if this HERZ Switch between full and restricted clever&smart Room Controller was menu. Only the reference temperature set as the "Configurator" ("Expert >... -
Page 13: Devices
HERZ clever&smart Room Controller Devices Overview > Operating mode > Menu > Expert > Settings > Devices Add Device Starts the search for new available devices in the network Description Shows the detected type of the unit Device icon Shows the type of connected device... -
Page 14: Rooms
HERZ clever&smart Room Controller Rooms Overview > Operating mode > Menu > Expert > Settings > Rooms Add Room Adding rooms Room 2 Setting the location, sensors and actuators of the respective room Overview > Operating mode > Menu > Expert > Settings > Room 2... -
Page 15: Sensors
HERZ clever&smart Room Controller Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Temperature Icon Already selected sensor CAN ID of the Control Box + serial number Temperature sensor selection in the... -
Page 16: Service Values
HERZ clever&smart Room Controller Service Values Overview > Operating mode > Menu > Expert > Service values Message Log Display of the error memory CAN Bus Status CAN bus status display System Update Enables an update of all Room Controller and Control Boxs... -
Page 17: Support
CAN high and CAN low connections for terminating the CAN bus? No additional function can be assigned to Is the selected function already assigned to another output? Is the output already assigned to another function? the analogue outputs V1/V2 of the HERZ Room Controller Clima WiFi. Notes... - Page 18 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Herz Armaturen Ges.m.b.H. Richard-Strauss-Straße 22 1230 Vienna, Austria +43 (0) 1 616 26 31 - 0 office@herz.eu...
