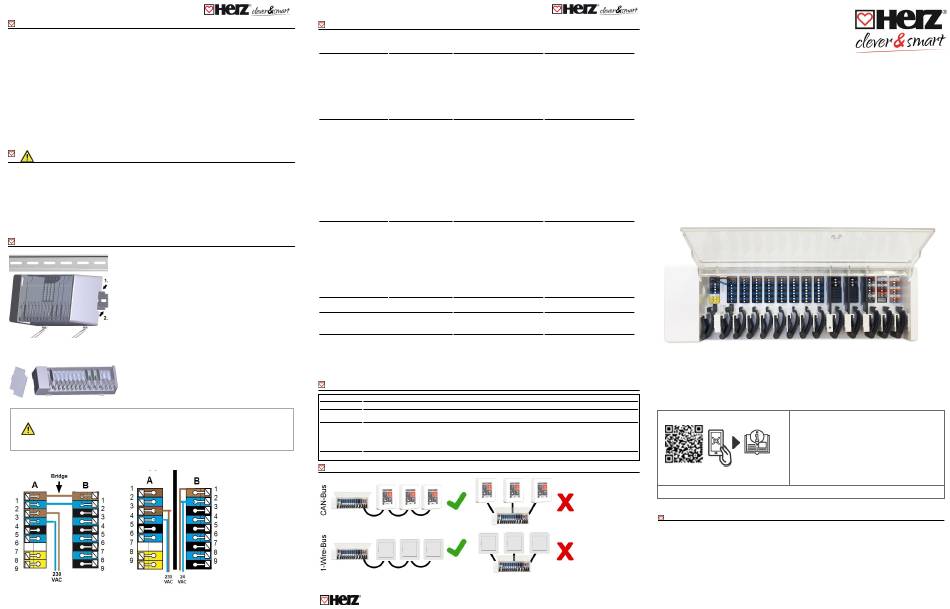

Herz clever&smart Control Box Heating Instruction Manual

HERZ clever&smart Control Box Heating
Description

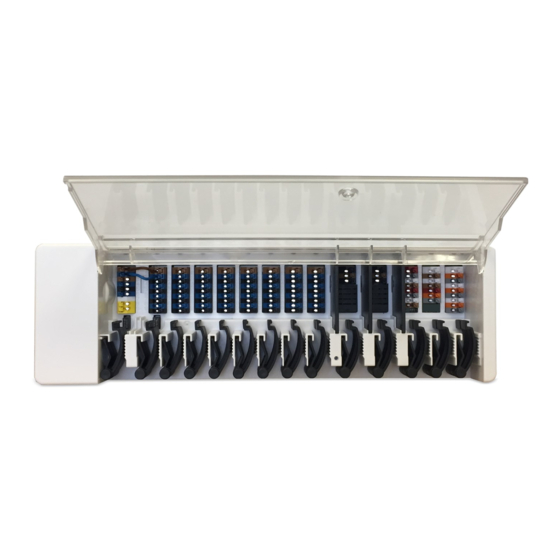

The HERZ clever&smart Control Box Heating is a universal heating and individual room controller for surface heating
systems. In combination with HERZ clever&smart Room Controller, HERZ clever&smart Room Sensor or HERZ
clever&smart LEDcontroller, this enables efficient use and function control of your surface heating with intuitive
operation. The inputs and outputs can be freely assigned via HERZ clever&smart Room Controller so that a wide
variety of heating systems can be implemented.
Important characteristics of the HERZ clever&smart Control Box Heating:
Control of 8 heating zones with 1 - 4 thermostatic radiator valves each
l
Measurement of room temperature and humidity in combination with HERZ clever&smart Room Controller, HERZ
l
clever&smart LEDcontroller or HERZ clever&smart Room Sensor
optionally weather compensated via an external temperature sensor
l
optional control of heating circuit pump and mixer (PWM oder 0-10V) possible
l
2 separate CAN bus interfaces for building network and private floor or apartment network
l
connectable with other HERZ products via CAN bus
l
Control of mixers, valves and energy generators via 0-10V / PWM
l
2 additional floating changeover contacts (terminals J and K) for flexible assignment with additional functions
l
innovative strain relief and coloured terminal strip
l
Up to 20 1-wire temperature sensors can be connected (incl. a maximum of 8 LEDcontrollers)
l
Safety Instructions
General
By no means does the controller replace the safety appliances on site!
l
Temperature values which are set too high can lead to scalding or damage to the system. Scalding protection must
l
be provided by the customer!
The temperature sensor cables must be routed separately from mains voltage cables, and must not, for example,
l
be routed in the same cable duct!
Wall Installation
Install the controller only in dry areas and under the ambient conditions described in "Specifications".
l
Low-voltage cables such as temperature sensor cables must be routed separately from mains voltage cables. Feed
l
temperature sensor cables only into the left-hand side of the unit, and mains voltage cables only into the right-hand
side.
Wall Installation
Fix the DIN rail horizontally to the wall using screws.
Installation
1. Place the Control Box on the upper edge of the DIN rail with the
locking catch on top. 2. Engage the device by pressing it down.
Ensure that the locking catches engage completely and that the
device is firmly seated on the rail.
Disassembly
Remove the Control Box from the DIN rail by inserting two
screwdrivers into the eyelets and pulling them down-wards.
Separation walls and cover
The separation walls and the cover can be removed for easier
connection of the cables. They must then be rein-stalled in order to
safely separate areas carrying mains voltage from areas carrying low
voltages.
Open the cover (90 ° degree) and then pull it out of the attach-ment
laterally.
If the terminal blocks (B-I) are to be supplied with a voltage other than the mains voltage,
proceed as follows:
1. Remove existing bridges A1 - B1 and A2 - B2
2. It is absolutely necessary to insert a separating wall between A - B.
3. Connect the power supply to B1 (L) and B2 (N).
4. Observe max. switching power of relay and fuse (4 AT)
Heating zones with 230 VAC actuators
Heating zones with e.g. 24 VAC actuators (separation wall)
(bridge)
HERZ clever&smart Control Box Heating
Technical Data
HERZ clever&smart
Model Individual room control system for surface heating
Control Box Heating
Electrical specifications
Power supply 230 VAC (+/- 5 %), 50-60 Hz
Power consumption /
0,5 - 2,5 W/ 0,5 W
standby
(Pos. A, left) 2 A slow blow 250 V Fuse protection for terminal area A and
Internal fuse 1 1
electronics
Internal fuse 2 1 (Pos. B, right) 4 A slow blow 250 V Fuse protection for terminal area B - I
Protection Class IP 20
Protection class /
II / II
overvoltage category
Inputs/Outputs
Inputs Quantity Measuring range / design
1-Wire temperature sensor < 20 pieces (incl. max. 8
- 55 °C ... 125 °C (3 pole version)
powered LED controllers)
PWM inputs 2 (N2, N5)
Outputs
Switching relay outputs 11
Relay heat pump 1 230 VAC, 4A, (AC1 920 VA, AC3 185W)
Relay actuator 8 230 VAC, 4A, (AC1 920 VA, AC3 185W)
Relay additional function 2 Potential-free max. 4A
PWM output 3 (N1, N4, N8) for 10 kΩ working resistance 1 kHz, level 10 V
of which 0-10 V / PWM
2 (N1, N4)
switchable
total max. 12 W for external devices e.g. HERZ clever&smart Room
+ Voltage output 24 VDC 3
Controller or mixer motor
Max. cable length
up to 50 m parasitic, up to 100 m powered,
1-Wire Sensors
Use twisted pair cable (LIYCY 2 x 2 x 0.75 mm²)
Especially when using HERZ clever&smart LEDcontroller, ensure
sufficient conductor cross-section to avoid impermissible voltage drop.
< 3 m; for ≥ 3 m, use a shielded twisted pair cable (2 x 2 x 0.22 mm²).
CAN Isolate shielding and connect it to the protective conductor of only one of
the devices. Max. cable length of the complete system 200 m.
0-10 V/PWM < 3 m
24 VDC < 30 m
mechanical relay < 30 m
Interface
Field bus 2x CAN bus, separate building CAN bus and private CAN bus
Permissible Ambient Conditions
for controller operation 0 °C - 40 °C, max. 85 % rel. humidity at 25 °C
for transport/storage 0 °C - 60 °C, no moisture condensation permitted
Other Specifications and Dimensions
Housing design multi-part ABS
Installation methods DIN rail mounting or wall mounting on DIN rail
Overall dimensions 95 mm x 303 mm x 57 mm
Light diode 14 x LED green
Real Time Clock RTC with 24 hour power reserve
Operation via HERZ clever&smart Room Controller
LED status
LED A Lights up, if mains voltage is present and relay A is switched.
LED B - K Lights up, if relay B - K is switched
Lights up, if the private CAN bus is active.
LED L
Flashes at 1 Hz (60 x / minute) if there is an error in the private CAN bus.
Lights up if the building CAN bus and the 1-wire bus are active.
Flashes at 1 Hz (60 x / minute) if there is an error in the building CAN.
LED M Flashes at 3 Hz (180 x / minute) if there is an error in the 1-Wire connection. EXCEPTION: If the building CAN
bus remains unused, a flashing (1 Hz (60 x / minute)) of LED M is normal and does NOT mean that there is a
error.
LED N Lights up, if outputs V1, V2 or V3 are active.
System structure
Herz Armaturen Ges.m.b.H. | Richard-Strauss-Straße 22 | 1230 Vienna, Austria | +43 (0) 1 616 26 31 - 0 | office@herz.eu |
www.herz-armaturen.at | 3F81011-EN-08/2023
Instruction Manual
HERZ clever&smart Control Box Heating
3 F810 11
Scope of delivery
Detailed instruction
HERZ clever&smart Control Box Heating
l
2 spare fuses, 1 x 2 AT, 1 x 4 AT
l
additional separation wall
l
DIN rail H= 35 mm L= 280 mm
l
2 screws 3.5 x 35 mm and 2 dowels S6
l
HERZ clever&smart Control Box Heating
l
Instruction Manual
SCAN ME
> www.herz-armaturen.at/solutions/clever-and-smart/manuals
General notes
This manual contains basic instructions and important information about safety, installation and operation. Before
commissioning and operation, the installer/specialist and the operator of the system have to read the manual
completely. It is an automatic electric temperature controller for household and similar applications. In addition,
observe the accident prevention regulations applicable in the respective countries, the applicable standards and
regulations and the installation and operating instructions for additional system components. Installation, electrical
connection, commissioning and maintenance may only be carried out by specialists who possess the appropriate
training. Users: Make sure that the specialist gives you detailed information on the function and operation of the
controller.
