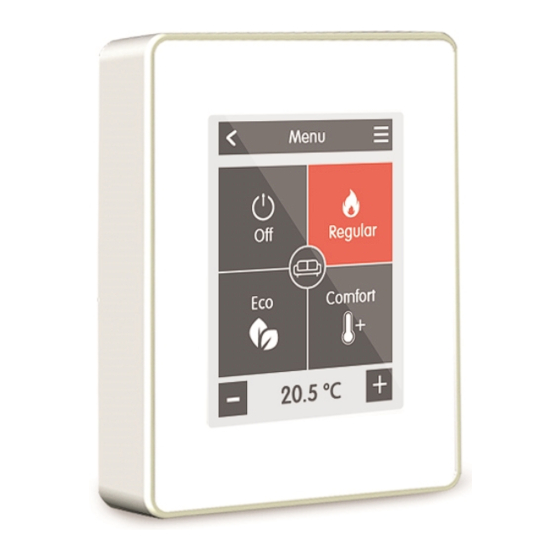

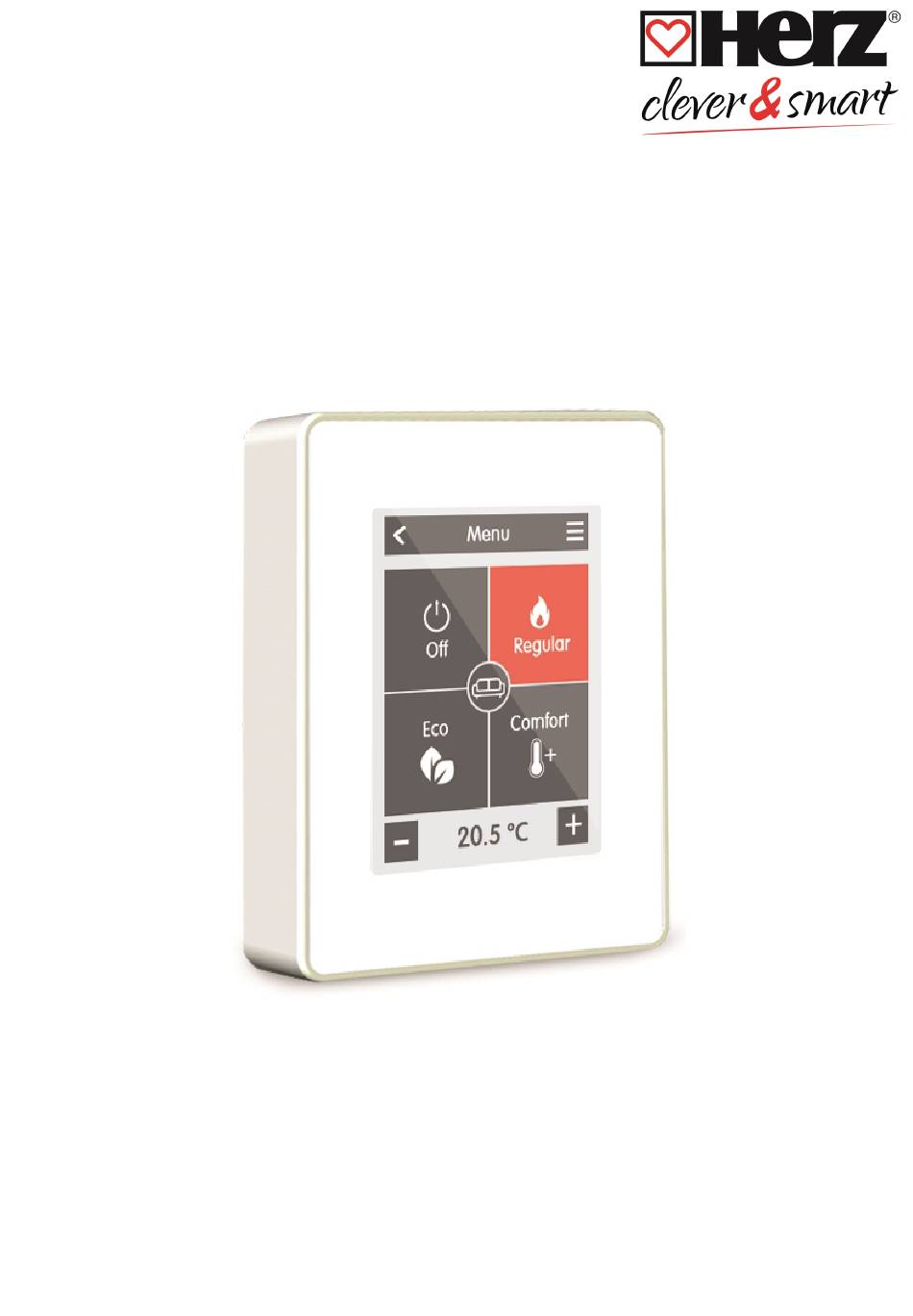

- Page 1 Installation and operating instruction HERZ clever&smart Room Controller WiFi 3 F810 23 Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
HERZ clever&smart Room Controller WiFi installation Operation Room Overview Operating Mode Menu Set Operation Hours Set Operation Hours Example Expert Menu Settings Devices Rooms Sensors WiFi Access Point WiFi Sensor Service Values Connecting HERZ clever&smart App to the HERZ clever&smart Room Controller WiFi Support Notes... -
Page 3: Safety Instructions
HERZ clever&smart Room Controller WiFi Safety Instructions EG-Conformity By affixing the CE mark to the unit the manufacturer declares that the HERZ clever&smart Room Controller WiFi conforms to the following relevant safety regulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU EU RoHS Directive 2011/65/EU EU WEEE Directive 2012/19/EU (Reg.nr. -
Page 4: Warranty And Liability
HERZ clever&smart Room Controller WiFi Warranty and Liability The Unit has been manufactured and tested with regard to high quality and safety requirements. The warranty and liability shall not include, however, any injury to persons or material damage that is attributable to one or more of the following causes:... -
Page 5: Description Herz Clever&Smart Room Controller Wifi
HERZ clever&smart Room Controller WiFi 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. Terminating resistor (120 Ohm) pre-installed on one of the two CAN High/CAN Low connections, operating tool, switch HERZ clever&smart Room Controller WiFi installation guide... -
Page 6: Installation
When wall mounting, make sure that the cables are kept as short as possible (max. 40 mm for direct wall mounting), as unnecessary vein loops in the HERZ clever&smart Room Controller WiFi housing can lead to problems. When mounting on a switch box, make sure that the cables are kept as short as possible (strip cables max. - Page 7 Power supply 24 VDC, ensure correct polarity or it may cause damage to the unit! For the pin assignment of the CAN bus line on the HERZ clever&smart Control Box, please refer to the corresponding instructions for use or operating manual.
-
Page 8: Operation
HERZ clever&smart Room Controller WiFi Operation Room Overview Displays the room temperature and outdoor temperature after activating the start screen. Room icon °C Selecting a room icon takes you to the room temperature Room temperature settings. Current room temperature. Outdoor temperature... -
Page 9: Operating Mode
HERZ clever&smart Room Controller WiFi Operating Mode Overview > Operating Mode Menu Back/ Forward Navigate to the main menu Navigate back to the overview. Room Displays the selected space. Operating Modes The operating mode shown in colour is currently active and can be changed by selecting another mode. -
Page 10: Set Operation Hours
HERZ clever&smart Room Controller WiFi Set Operation Hours Overview > Operating Mode > Menu > Timer Setting of individual heating and cooling times for the selected room. Menu Operating Modes Opens the copy function. The function Selection of the operating mode to... -
Page 11: Expert Menu
HERZ clever&smart Room Controller WiFi Expert Menu Overview > Operating Mode > Menu > Expert Select Language Set the device language Date & Time Setting the time and date and automatic summertime/wintertime Settings changeover Parameterisation of the heating system Service Values... -
Page 12: Settings
Zones switching outputs on the HERZ Assigning rooms to heating zones clever&smart Control Box. This menu is only visible if this HERZ clever&smart Room Controller was Display Brightness set as the "Configurator" ("Expert > Adjust the display brightness Settings >... -
Page 13: Devices
If no WLAN is available, devices can be added to the network via the menu 'Expert -> Settings -> Devices - > Add device'. Add a HERZ clever&smart Room Sensor WiFi or a HERZ clever&smart LEDcontroller WiFi to your network. - Page 14 HERZ clever&smart Room Controller WiFi...
-
Page 15: Rooms
HERZ clever&smart Room Controller WiFi Rooms Overview > Operating mode > Menu > Expert > Settings > Rooms Add Room Adding rooms Room 2 Setting the location, sensors and actuators of the respective room Overview > Operating mode > Menu > Expert > Settings > Room 2... -
Page 16: Sensors
HERZ clever&smart Room Controller WiFi Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Temperature Icon Already selected sensor CAN ID of the Control Box + serial number Temperature sensor selection in the... -
Page 17: Wifi
Activate WiFi function WiFi status Information about the WiFi status and Select Network the device address (which is needed Scan for available networks and select to connect to the HERZ clever&smart the network App). SSID Manage Access Manually entering the WLAN name Allow up to 5 users to access the unit via HERZ clever&smart App by... - Page 18 HERZ clever&smart Room Controller WiFi DNS/ DNS 2 Entering the DNS address Connecting the HERZ clever&smart Access Point Room Controller WiFi to a WPS- Settings for routing and the WPS enabled router Repeater WiFi Sensor Settings for the LED display and the...
-
Page 19: Access Point
WLAN router. If there is no router, the communication takes place via the access point of the HERZ clever&smart Room Controller. WiFi Sensor Overview > Operating Mode > Menu > Expert > Settings > WiFi > WiFi Sensor... -
Page 20: Service Values
Connect HERZ clever&smart Room Controller WiFi with the WLAN network: Expert Settings WiFi Choose Network Enter the selected e-mail address in the access list in HERZ clever&smart Room Con- troller WiFi when logging in to the account: Expert Settings WiFi "Manage access". -
Page 21: Support
CAN high and CAN low connections for terminating the CAN bus? No additional function can be assigned to Is the selected function already assigned to another output? Is the output already assigned to another function? the analogue outputs V1/V2 of the HERZ Room Controller Clima WiFi. Notes... - Page 22 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Herz Armaturen Ges.m.b.H. Richard-Strauss-Straße 22 1230 Vienna, Austria +43 (0) 1 616 26 31 - 0 office@herz.eu...
