EGO STX4500 Operator's Manual

EGO STX4500 Operator's Manual

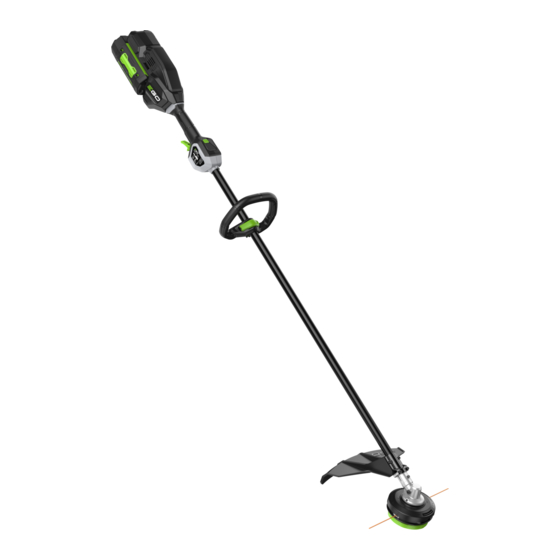

56 volt lithium-ion commercial cordless line trimmer
Hide thumbs Also See for STX4500:

Advertisement

COMMERCIAL
OPERATOR'S MANUAL
56 VOLT LITHIUM-ION COMMERCIAL
CORDLESS LINE TRIMMER
MODEL NUMBER STX4500
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.
MNL_EGO_STX4500_AV01.01_230607

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STX4500 and is the answer not in the manual?

Questions and answers

Summary of Contents for EGO STX4500

  • Page 1 COMMERCIAL OPERATOR’S MANUAL 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER MODEL NUMBER STX4500 WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_STX4500_AV01.01_230607...
  • Page 2 19. Latch 1. Speed Indicator 2. Bluetooth Indicator 4. Battery-status ® Indicator 18. Battery-release SPEED 3. Speed Mode Button Button 8. Shoulder Strap 5. Rear Handle 24. Sealing Bolt 6. Carrying 7. Loop Handle Eyelet 17. Trigger Switch 16. Lock-off Lever 9.
  • Page 3 Quick-release Lever Loop Safety Barrier Bar Handle (only for use with brush cutter head) Clamping Block Wing Nut...
  • Page 4 Line Trimmer Guard Brush Cutter Guard...
  • Page 5 Speed Battery- Indicator status SPEED Indicator Bluetooth ® Indicator Speed Mode Button...
  • Page 6 15 cm...
  • Page 7: Safety Instructions

    15 m. side shields. least 15 m. 45cm The Max. cutting width of Cutting Width line trimmer 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 8: Electrical Safety

    Do not operate machines in explosive atmospheres, the machine. Carrying machines with your finger on such as in the presence of flammable liquids, the switch or energizing machines that have the switch on invites accidents. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 9 Never service damaged battery packs. Service ◾ Use the machine, accessories and machine bits of battery packs should only be performed by the etc. in accordance with these instructions, taking manufacturer or authorized service providers. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 10 This reduces the risk of loss of control, slipping damage repaired before further operation is attempted. Do not operate with a broken guard or spool. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 11: Specifications

    ◾ Always maintain good visibility of the material being cut. Blade thrust is more likely to occur in areas where it is difficult to see the material being cut. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 12 (Fig. D3). serious personal injury. 6. Mount the quick-release lever and tighten the wing 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 13: Operation

    When the machine is equipped with the brush cutter head, be carefully to choose the correct guard. OPERATION WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 14: Attaching/Detaching The Battery Pack

    The battery-status indicator and the speed indicator will illuminate when the machine WARNING: You should not use the single-shoulder is started OR the speed mode button is pressed. strap and double-shoulder strap simultaneously. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 15 Battery Electronics Error Protection When the battery pack electronics error occurs, the battery-status indictor will flash red/green alternately and the machine will shut off in 3 seconds. Replace the battery pack or contact EGO customer service center. Machine Overload Protection This machine has built-in overload circuit protection.
  • Page 16: Line Replacement

    (Fig. N2); Press the lower cover assembly until it snaps into place with a distinct click sound. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 17: Maintenance

    Wipe off any moisture with a soft dry injury, it is essential to take the following precautions: cloth. ◾ Avoid contact with hard or solid foreign objects such as stones, rocks or pieces of metal. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 18: Storing The Machine

    If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 19: Troubleshooting

    Grass wraps around ◾ ◾ Cutting tall grass at ground Cut out the weeds into several sections from top to trimmer head and level. ground level. motor housing 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
  • Page 20: Warranty Policy

    The warranty applies to the original purchaser and applies only to purchases made from authorised EGO Dealers, which can be confirmed on the website store locator. For avoidance of doubt, 3rd party online stores such as eBay, Gumtree, Amazon, etc. are excluded.
  • Page 21 STX3800, HTX7500, CSX3000, PPX1000, PSX2500, PTX5100, BHX1001, STX4500, 5 years 2 years BCX4500, EDX2000, HTX5300-P, HTX5300-PA, LBPX8000 Commercial Backpack Battery: BAX1501 3 years 2 years Commercial Charger: CHX5500E 3 years 2 years 56 VOLT LITHIUM-ION COMMERCIAL CORDLESS LINE TRIMMER — STX4500...
