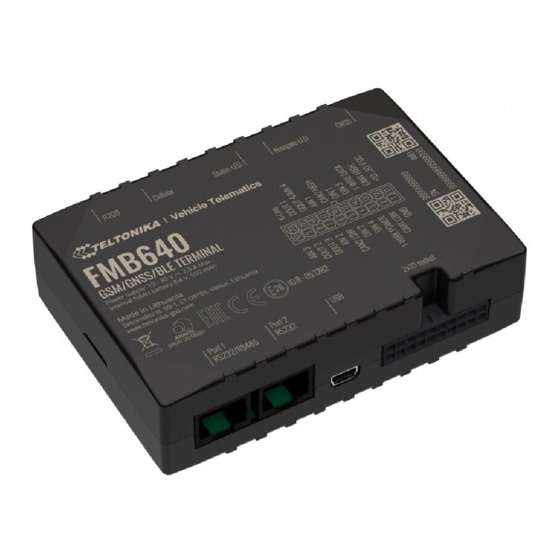

FMB640 Thermograph
Main Page
>
EOL Products
Contents
1 Introduction
2 Supported Thermographs
3 RS-232 Interface
Introduction
With an increasing demand for cold-chain supply chains, Teltonika is offering the ability to monitor
real-time information from freezer trailer thermographs. Each thermograph has an RS232
communication line where FMB640 devices can connect via COM1/COM2 port of the device. The
solution is easy to install and configure. This allows you to monitor the main information of the
freezer trailer such as Temperature, Fridge door status, Alarms, etc., and generate events according
to your needs. For more information please refer to the installation manual below.
NOTE: this feature is available from FW ver. 01.02.23.Rev.00
Supported Thermographs
FMB640 can be connected to Euroscan, DataCold600, Transcan2, TouchPrint thermographs.
Refer to the table below to see which freezers use which thermograph:
Freezer Type Euroscan DataCold600 Transcan2 TouchPrint/TouchLog
Carrier
+
ThermoKing
+
RS-232 Interface
RS-232 supports full-duplex communication which means the data can be both sent and received at
the same time as they use separate transmission lines. Most of the modes are the same as for
>
FMB640
>
FMB640 Manual
Thermograph Type
+
-
-
+
> FMB640 Thermograph
-
+
Advertisement
Related Manuals for Teltonika FMB640
Summary of Contents for Teltonika FMB640
-
Page 1: Table Of Contents
5.4 TK Touchprint/Touchlog I/O Introduction With an increasing demand for cold-chain supply chains, Teltonika is offering the ability to monitor real-time information from freezer trailer thermographs. Each thermograph has an RS232 communication line where FMB640 devices can connect via COM1/COM2 port of the device. The solution is easy to install and configure. -
Page 2: Installation Guide
FMB640. When entering Sleep or Deep sleep RS-232 will be powered off. FMB640 RS-232 connection diagram is shown in the figure below: Installation guide TouchPrint/TouchLog TouchPrint pinout: No configuration is necessary. If the equipment does not receive information from the thermographer, the speed of the port accessing the configuration menu: Keep the blue and red buttons pressed at the same time. -
Page 3: Carrier Datacold 600
AVL ID 10695 10696 10697 10698 10699 10700 10701 10702 10703 Configuration: No configuration is necessary. See ThermoKing Configuration. Carrier Datacold 600 To properly use DataCold 600 with FMX640 these steps must be followed: In FMX640 RS232 settings DataCold mode is selected and Baudrate set to 38400 Partner mode enabled on DataCold 600 To enable Partner mode on DataCold 600: Press and hold the green button for 4 seconds... -
Page 4: Euroscan
10464 10465 10466 10467 Configuration Make sure the FMB640 device is configured to receive data from “Transcan2 Reefer”, "Touchprint Reefer", "Euroscan: or "DataCold Reefer". To do this, enter the configurator window, select the RS232 \ RS485 section displayed in the screenshots below, and configure accordingly (COM1/COM2... -
Page 5: Datacold Reefer
Baudrate: Default) DataCold Reefer To configure "DataCold Reefer" I/O parameters, please select "Reefer IO": Data sending parameters (AVL ID) used for "DataCold Reefer" are these: 10040 - 10649. For more in-depth information, please refer to Reefer IO data sending parameters. TK Transcan2 Reefer To configure "Transcan2 Reefer"... -
Page 6: Tk Touchprint/Touchlog I/O
Euroscan IO data sending parameters. more in-depth information, please refer to TK Touchprint/Touchlog I/O To configure "Touchprint Reefer" I/O parameters select "TK Touchprint IO": Data sending parameters (AVL ID) used for "Touchprint Reefer" are these: 10695 - 10703. For more in-depth information, please refer to Touchprint IO data sending parameters.
