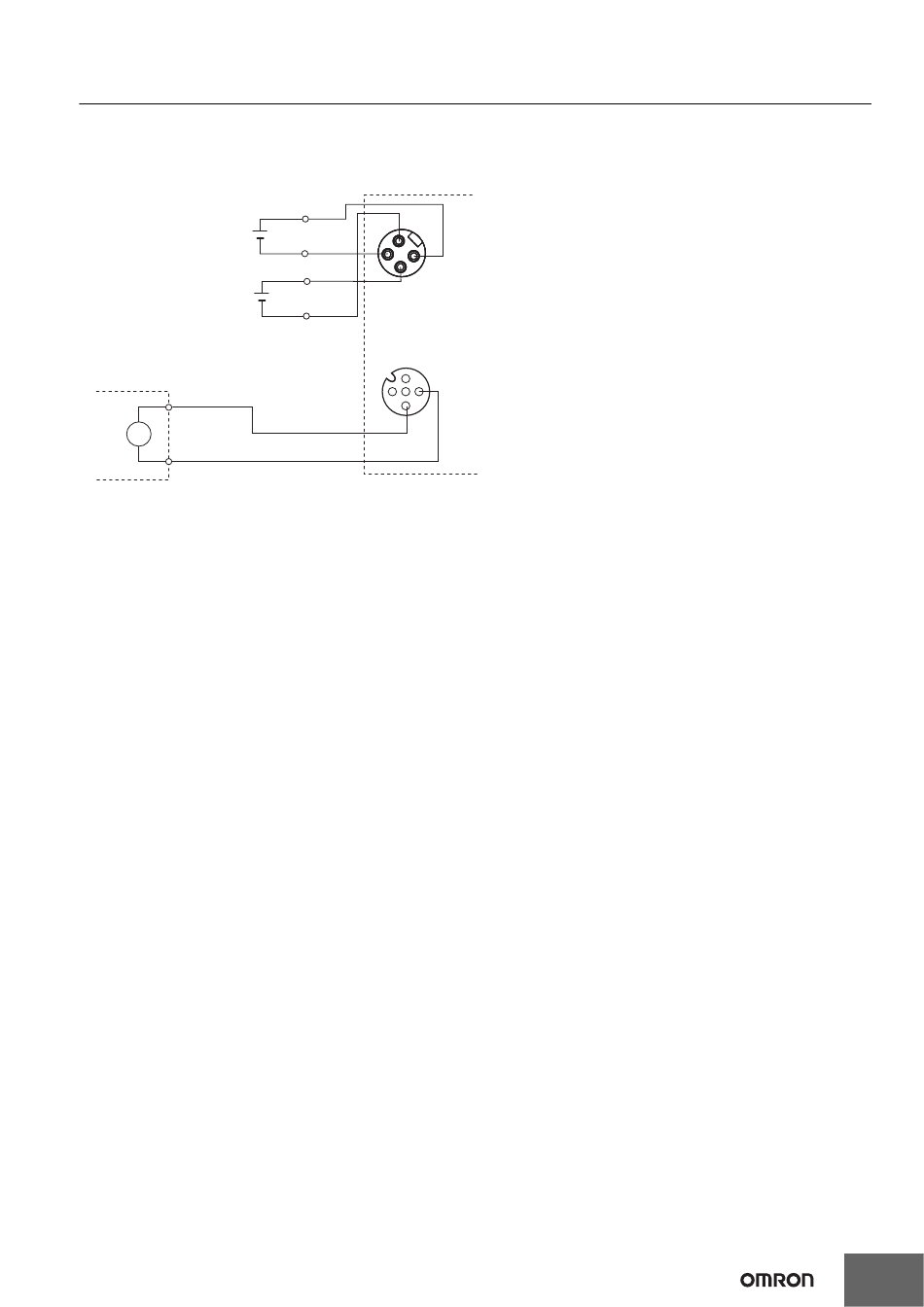

Wiring Example for Non-IO-Link Output Devices
A wiring example between the IO-Link Master Unit and a non-IO-Link output device is shown below.
In this example, the port is used in the following communications modes.
Pin 4: SIO (DO) Mode, pin 2: Disabled
Unit/input power supply
Output power supply
L
Non-IO-Link output device
U/IN P+
4
U/IN P-
2
3
OUT P+
Power supply connector (input)
1
OUT P-
IO-Link Master Unit
2
I/O connector
3
1
4
C/Q black
L- blue
NXR-ILM08C-ECT
