- Page 1 Original Instructions Version 3 – June 2023 230V 7KG SDS MAX BREAKER 81077...
-
Page 2: Preface
1.1 Product Reference 1.3 Understanding the Safety Content of This Manual User Manual for: Draper Expert 230V SDS Max Breaker, 7kg, 1,050W WARNING! – Situations or actions that may result in personal injury or death. Stock No: 81077 CAUTION! –... -
Page 3: Table Of Contents
2. Contents 8. Maintenance and Troubleshooting 1. Preface 8.1 General Maintenance 1.1 Product Reference 8.2 Gearbox Care 1.2 Revisions 8.3 Troubleshooting 1.3 Understanding the Safety Content of This Manual 8. Maintenance and Troubleshooting 1.4 Copyright © Notice 9. Spares, Returns and Disposal 2. Contents 10. -
Page 4: Product Introduction
Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. -
Page 5: Health And Safety Information
4. Health and Safety Information Important: Read all the Health and Safety instructions − Use of a cord suitable for outdoor use reduces the before attempting to adjust, operate, maintain or repair risk of electric shock. this product. • If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) 4.1 General Power Tool Safety Warnings protected supply. -
Page 6: Additional Safety Information For This Breaker
4. Health and Safety Information Power tool use and care Hammer safety warnings • Do not force the power tool. Use the correct power • Wear ear protectors. tool for your application. − Exposure to noise can cause hearing loss. ... -
Page 7: Connection To The Power Supply
If the power supply cord is damaged, it must be replaced by Draper Tools, an authorised service agent or similarly qualified personnel in order to avoid a hazard. The damaged or incomplete plug, when cut from the cable, shall be disabled to prevent connection to a live electrical outlet. -
Page 8: Identification And Unpacking

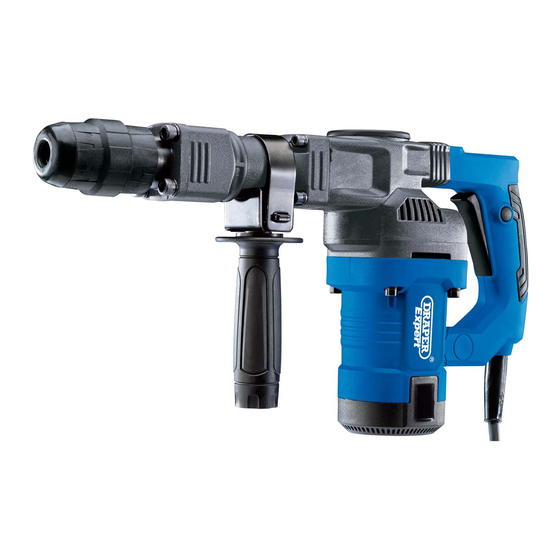

5. Identification and Unpacking 5.1 Product Overview Auxiliary handle SDS MAX chuck Dust protection cap Switch lock button Gearbox access cover Trigger switch Main handle Power cable and plug – 8 –... -
Page 9: What's In The Box
If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. (A) 1 × Breaker (not shown) (D) 1 ×... -
Page 10: Preparation Instructions
6. Preparation Instructions Important: Read and understand all the safety c. Manoeuvre the locking bar (11) out of the instructions listed in this manual before making any U-bracket (12) and remove the U-bracket from the adjustments to this product. ALWAYS ensure that the tool shaft. -
Page 11: Inserting And Removing Bits
6. Preparation Instructions 6.2 Inserting and Removing Bits 6.3 Checking the Work Surface WARNING! Before beginning any chiselling The keyless chuck accommodates SDS MAX drill bits and operation, carefully check the work surface for chisels (Ø18mm). the presence of hidden electric cables, gas and WARNING! If the tool has been recently used, water pipes and any other dangerous or ALWAYS ensure that the installed bit has... -
Page 12: Operating Instructions
7. Operating Instructions 7.2 The Trigger Switch Important: Before attempting to use this product, read and understand all the safety information and The tool must be connected to an active power supply instructions listed in this manual. Ensure that the before use. -
Page 13: Appropriate Materials
7. Operating Instructions 7.4 Appropriate Materials Important: This product is intended for work with masonry ONLY, including, brickwork, blockwork, concrete, hard earth and stone. It is NOT suitable for chiselling into wood, metal or plastic; other more suitable tools that afford a greater level of control are available. 7.5 Using the Tool DO NOT force the bit into position;... -
Page 14: Maintenance And Troubleshooting
8. Maintenance and Troubleshooting 8.2 Gearbox Care Important: Read and understand all the health and safety information before attempting to maintain or This product includes a greased gearbox. The grease repair this product. should be changed at the same time that the carbon WARNING! ALWAYS ensure that the tool is brushes are replaced to ensure that the gearbox remains switched off, disconnected from the power... -
Page 15: Troubleshooting
The motor brushes are being worn in. This is normal; no action is required. brushes. If the issue cannot be resolved, contact Draper Tools for details of your nearest authorised repair agent. – 15 –... -
Page 16: Spares, Returns And Disposal
Draper Tools Product Helpline for details of your nearest authorised agent. Draper Tools will endeavour to hold any spare parts, if applicable, for seven years from the date that it sells the final matching stock item. -
Page 17: Warranty
This warranty period covers parts and labour for 24 months from the date of Your Draper Tools guarantee is not effective until you can purchase. Where tools have been hired out, the warranty produce, upon request, a dated receipt or invoice to period covers 90 days from the date of purchase. -
Page 18: Explanation Of Symbols
11. Explanation of Symbols Class II construction Read the instruction manual (Double insulated) WEEE – Warning! Waste Electrical & Electronic Equipment Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Do not abandon in the environment European conformity Wear suitable googles and breathing UK Conformity Assessed... -
Page 19: Notes
Notes – 19 –... - Page 20 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
