Skil CR5429B-00 Owner's Manual

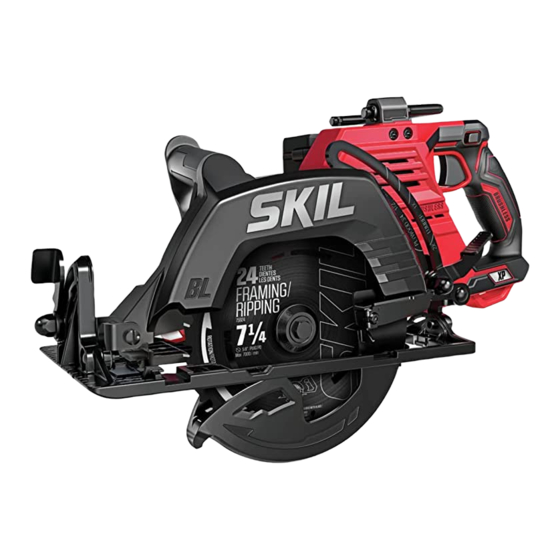

2x20v brushless circular saw
Hide thumbs Also See for CR5429B-00:
Table of Contents

Advertisement

Quick Links

Download this manual
Model CR5429B
2X20V Brushless Circular Saw
Model BY519603
20V Lithium Battery with Fuel Gauge
Model QC5359B
20V Dual Port Charger
CR5429B-20
Click on the the tool to get to the relevant manual

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the CR5429B-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skil CR5429B-00

Summary of Contents for Skil CR5429B-00

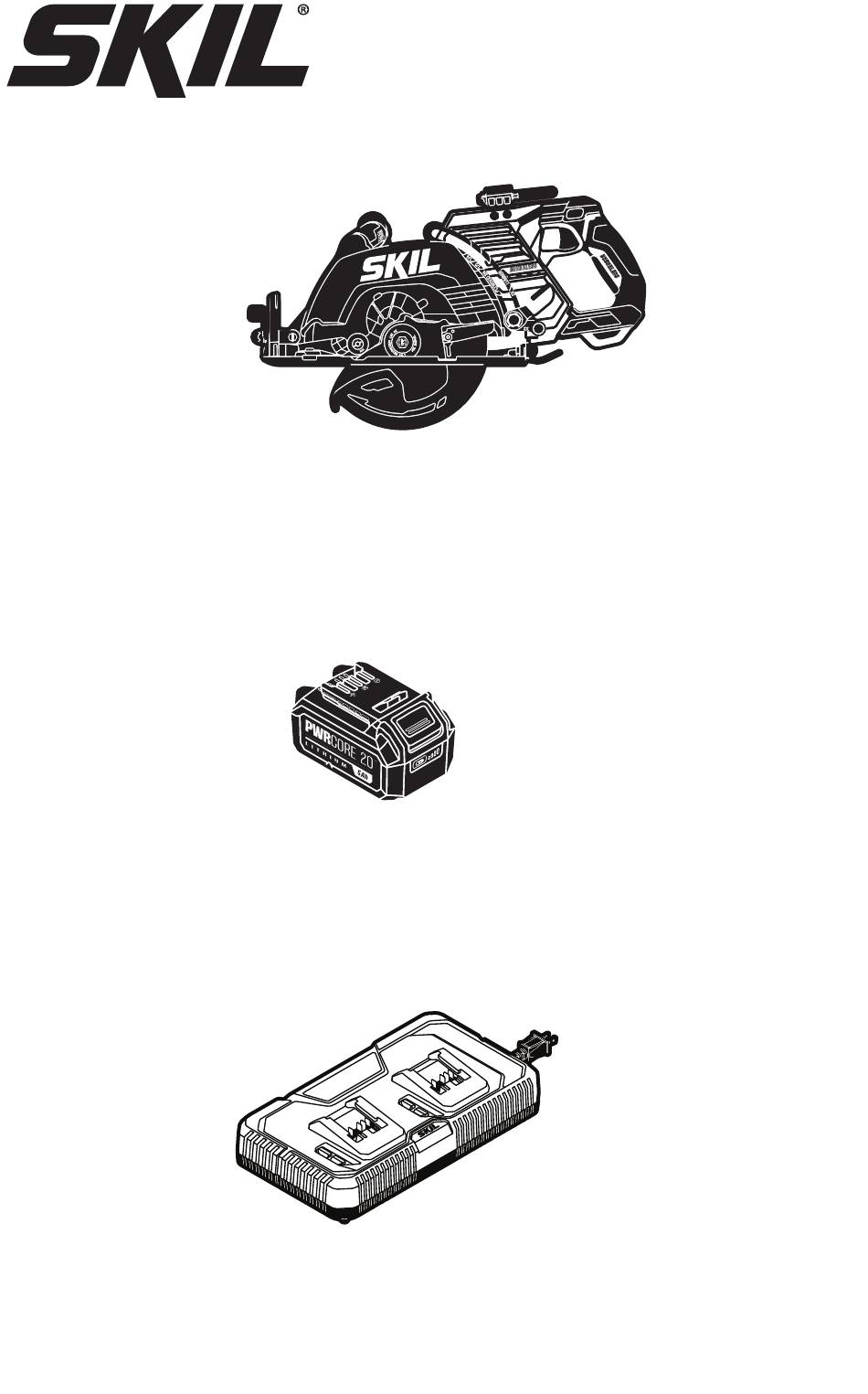

  • Page 1 CR5429B-20 Click on the the tool to get to the relevant manual Model CR5429B 2X20V Brushless Circular Saw Model BY519603 20V Lithium Battery with Fuel Gauge Model QC5359B 20V Dual Port Charger...
  • Page 2 Owner’s Manual Model CR5429B-00 2X20V Brushless Circular Saw WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. For Customer Service 1-877-SKIL-999 www.skil.com Pour le service à la clientèle...

  • Page 3: Table Of Contents

    Limited Warranty of SKIL Cordless Tools . . . . . . . . . . . . . . . . .

  • Page 4: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings, instructions, illustrations and specifications WARNING provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE . The term “power tool”...
  • Page 5 Dress properly. Do not wear loose clothing or jewelry. Keep your hair, and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 6: Safety Instructions For Circular Saws

    Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 7 When restarting a saw in the workpiece, center the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted. Support large panels to minimize the risk of blade pinching and kickback.

  • Page 8: Symbols

    SYMBOLS Safety Symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
  • Page 9 SYMBOLS (CONTINUED) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Name Designation/Explanation Volts Voltage (potential) Amperes...
  • Page 10 Symbol Name Designation/Explanation Wear eye protection symbol Alerts user to wear eye protection Alerts user to always operate with two Always operate with two hands hands Do not use the guard for cut-off Alerts user not to use the guard for operations cut-off operations...
  • Page 11 SYMBOLS (CERTIFICATION INFORMATION) IMPORTANT: Some of the following symbols for certification information may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Designation/Explanation This symbol designates that this tool is listed by Underwriters...

  • Page 12: Get To Know Your Circular Saw

    GET TO KNOW YOUR CIRCULAR SAW Brushless Circular Saw Fig. 1 Auxiliary Handle Calibrated Depth Bracket Calibrated for Standard Lumber Sizes Upper Guard Lock-off Button Trigger Switch Main Handle Blade Depth-adjustment Lever Lower Guard Depth-of – cut Marks Outer Washer Blade Bolt Lower-guard Lift Lever...

  • Page 13: Specifications

    SPECIFICATIONS Rated Voltage 40V (2 x 20V) d.c. No-load Speed 5300/min (RPM) Bevel Capacity 0 – 53° Blade Diameter 7-1/4" (184 mm) Blade Arbor Hole 5/8" (16 mm) Max. Cutting Depth at 0° Bevel 2-9/16'' (65mm) Max. Cutting Depth at 45° Bevel 1-7/8'' (47mm) Max.

  • Page 14: Assembly

    ASSEMBLY If any parts are damaged or missing, do not operate this product until WARNING the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury. Do not attempt to modify this tool or create accessories not WARNING recommended for use with this tool.
  • Page 15 Attaching the Blade (Fig . 3) This tool is intended for cutting wood only. Use only the correct saw WARNING blades for wood-cutting operations. Do not use any abrasive wheels. Use only 7-1/4” saw blades rated 5300/min (RPM) or greater. NEVER WARNING use a blade that is so thick that it prevents the outer blade washer from engaging with the flat side of the spindle.

  • Page 16: Adjustments

    ADJUSTMENTS Detach the battery packs from the tool before performing any WARNING assembly, adjustments, or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Depth-of–Cut Adjustment (Fig . 4a & 4b) Your tool is equipped with a depth-of-cut adjustment lever, located beside the upper guard. To set the depth of cut: a.
  • Page 17 Bevel Adjustment (Fig . 6) a. Remove the battery packs from the circular saw. b. Loosen the bevel-adjustment lever at the front of the saw. Tilt the saw foot and align the bevel indicator to the desired angle on the calibrated quadrant, and then tighten the bevel-adjustment lever.
  • Page 18 Wrench Usage The wrench provided has several functions (Fig. 8a): 1. 1/2” wrench is used to loosen/tighten the blade bolt. 2. 9/16” wrench is used to loosen/tighten the bevel/depth levers when levers are over-tightened or additional tightening is needed. 3. Blade diamond arbor knock out (wedge feature). Storage is provided on the tool (Fig.
  • Page 19 Saw Hook (Fig . 10) Fig. 10 Your tool is equipped with a hook. Use the hook to hang the saw from a rafter or beam, or other similar secure structure for temporary storage during work breaks. Recommended lumber size to support the saw with the hook: 2x4. To use, lift up the hook until it snaps into the open position.

  • Page 20: Operating Instructions

    Corrosive or conductive fluids, such as seawater, certain industrial chemicals, bleach or bleach-containing products, etc. can cause a short circuit. This cordless circular saw must be used only with the battery packs and chargers listed below: Battery Pack Charger 2.5Ah SKIL SKIL SC535801 QC536001 SKIL SKIL...
  • Page 21 Intended Use This tool is designed to support all wood-cutting applications: general cuts, cross cuts, rip cuts, and plunge cuts. Only use the tool with wood or wood-like materials. NOTICE: The tool is not designed for metal or masonry cutting. Dust and chips from those materials will impact lower guard function.
  • Page 22 Cutting Large Sheets (Fig . 14) Fig. 14 Large sheets and long boards can sag or bend, depending on support. If you attempt to cut without leveling and properly supporting the piece, the blade will tend to bind, causing KICKBACK and extra load on the motor. Support the panel or board close to the cut.

  • Page 23: Maintenance

    Preventive maintenance performed by unauthorized personnel may WARNING result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a SKIL Factory Service Center or Authorized SKIL Service Station. General Maintenance When servicing, use only identical replacement parts.

  • Page 24: Troubleshooting

    3. Burned out switch. 3. Have the switch replaced by an Authorized SKIL Service Center or Service Station. Blade does not come up 1. Low battery charge. 1. Recharge the battery to speed.
  • Page 25 LIMITED WARRANTY OF SKIL CONSUMER TOOLS 5 YEAR LIMITED WARRANTY Chervon North America, Inc. ("Seller") warrants to the original purchaser only, that all SKIL consumer TOOLS will be free from defects in material or workmanship for a period of five years from date of purchase, if original purchaser registers the product within 30 days from purchase.
  • Page 26 WARNING: To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. For Customer Service 1-877-SKIL-999 www.skil.com Pour le service à la clientèle Servicio al cliente...
  • Page 27 Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Limited Warranty of SKIL Battery Pack . . . . . . . . . . . . . 20-21...

  • Page 28: Safety Instructions

    SAFETY INSTRUCTIONS Read all safety warnings, instructions, WARNING illustrations and specifications. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE . The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 29 Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
  • Page 30 Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition . Be aware of possible hazards when not using your battery tool or when changing accessories . Do not place battery tools or their batteries near fire or heat. Charge battery pack within the required temperature range.
  • Page 31 Do not let gasoline, oils, petroleum-based products, etc . come in contact with plastic parts . They contain chemicals that can damage, weaken or destroy plastic. Do not touch the uninsulated portion of output connector or uninsulated battery terminal . There is a risk of electric shock. Replace battery pack if a substantial drop in operating time per charge is observed .

  • Page 32: Symbols

    Symbols Safety Symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
  • Page 33 CAUTION, used with the safety alert symbol, indicates a hazardous situation CAUTION which, if not avoided, will result in minor or moderate injury. Damage Prevention and Information Messages These inform the user of important information and/or instructions that could lead to equipment or other property damage if they are not followed.
  • Page 34 SYMBOLS (CONTINUED) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Name Designation/Explanation Volts Voltage (potential) Amperes...
  • Page 35 Symbol Name Designation/Explanation Speed, torque or position 1,2,3,… Selector settings settings. Higher number I,II,III, means greater speed Infinitely variable Speed is increasing from 0 selector with off setting Action in the direction of Arrow arrow Type or a characteristic of Alternating current current Type or a characteristic of...
  • Page 36 Symbol Name Designation/Explanation Always wear safety goggles Wear eye protection or safety glasses with side symbol shields and a full face shield when operating this product. SYMBOLS (CERTIFICATION INFORMATION) IMPORTANT: Some of the following symbols for certification information may be used on your tool. Please study them and learn their meaning.
  • Page 37 Symbol Designation/Explanation This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards. This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards. This symbol designates that this tool complies to NOM Mexican Standards.

  • Page 38: Get To Know Your Battery

    41°F(5°C) ~ 104°F(40°C) Charging Temperature Recommended 32°F (0°C) ~104°F (40°C) Storage Temperature The batteries listed above can only be WARNING charged with SKIL SC535801, QC536001 chargers . Note: Use of chargers or battery packs not sold by SKIL will void the warranty.

  • Page 39: Operating Instructions

    OPERATING INSTRUCTIONS To reduce the risk of fire, personal injury, WARNING and product damage due to a short circuit, never immerse your charger or battery pack in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
  • Page 40 Defect Indicator flashes a second time, try charging a different battery pack. a. If a different battery pack charges normally, have the first defective battery pack serviced by an Authorized SKIL Service Station. b. If a different battery pack also indicates “defective,” the charger may be defective.
  • Page 41 If the first and third LED on the fuel gauge rapidly flash green when the battery-indicator button is depressed, this indicates that the battery is too hot. Cool the battery pack under air flow. To Attach/Detach Battery Pack Follow the instructions in the Owner’s Manual for the individual SKIL tool.

  • Page 42: Maintenance

    . We recommend that all tool service be performed by a SKIL Factory Service Center or Authorized SKIL Service Station. General Maintenance When servicing, use only identical re- WARNING placement parts .

  • Page 43: Battery Care

    Storage Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive agents. BATTERY CARE When batteries are not in tool or charger, WARNING keep them away from metal objects . example, to protect terminals from shorting DO NOT place batteries in a tool box or pocket with nails, screws, keys, etc.

  • Page 44: Battery Disposal

    Please call 1-800-8-BATTERY for information on Li-ion battery recycling and disposal bans/ restrictions in your area, or return your batteries to a SKIL Service Center for recycling. Chervon North America’s involvement in this program is part of our commitment to preserving our environment and conserving our natural resources.
  • Page 45 Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete product, transportation prepaid, to any SKIL Factory Service Center or Authorized Service Station. For Authorized SKIL Power Tool Service Stations, please visit www.Registermyskil.com or call 1-877-SKIL-999...
  • Page 46 THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL DEALER OR IMPORTER. © Chervon North America, 1203 E. Warrenville Rd, Naperville, IL 60563. 01/19...
  • Page 47 20V Dual Port Charger To reduce the risk of injury, the user must read and understand the Owner’s Manual before using this product. Save these instructions for future reference. For Customer Service 1-877-SKIL-999 www.skil.com Pour le service à la clientèle Servicio al cliente...
  • Page 48 Limited Warranty of SKIL Consumer Tools . . . . . . . . . . . . . . . . .

  • Page 49: Charger Safety Instructions

    Before each use, check the battery charger, cable and plug . If damage is detected, do not use the battery charger . Never open the battery charger yourself, take it to a SKIL Factory Service Center, or qualified serviceman only using original spare parts .

  • Page 50: Extension Cords

    Do not store battery pack in charger . Battery pack stored in charger over a long period of time could lead to battery pack damage and fire. Unplug charger from outlet before storage, attempting any maintenance or cleaning . Such preventive safety measures reduce the risk of electric shock or fire. Keep the battery charger clean by blowing compressed air on charger vents and wiping the charger housing with a damp cloth .

  • Page 51: Fcc Caution

    FCC CAUTION 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 52: Symbols

    SYMBOLS Safety Symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
  • Page 53 SYMBOLS (CONTINUED) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Name Designation/Explanation Volts Voltage (potential) Amperes...
  • Page 54 Symbol Name Designation/Explanation Wear eye protection symbol Alerts user to wear eye protection Alerts user to always operate with two Always operate with two hands hands Do not use the guard for cut-off Alerts user not to use the guard for operations cut-off operations...
  • Page 55 SYMBOLS (CERTIFICATION INFORMATION) IMPORTANT: Some of the following symbols for certification information may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Designation/Explanation This symbol designates that this tool is listed by Underwriters Laboratories.

  • Page 56: Get To Know Your Charger

    This charger will only charge the battery packs listed in the table WARNING above . Other types of batteries may burst causing personal injury and damage. NOTE: Use of chargers or battery packs not sold by SKIL will void the warranty.

  • Page 57: Important Charging Notes

    Check the battery pack terminals for dirt. Clean with a cotton swab and alcohol, if necessary. d. If proper charging still does not occur, take or send the tool, battery pack, and charger to your local SKIL Service Center. Please refer to the Customer Service information on the cover of this manual.

  • Page 58: Operating Instructions

    OPERATING INSTRUCTIONS To reduce the risk of fire, personal injury, and product damage due to WARNING a short circuit, never immerse your charger or battery pack in fluid or allow a fluid to flow inside them . Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc.
  • Page 59 Check to see if the charger self- inspection can be activated when the charger is plugged in again or plugged into a different outlet. If it still fails, have the charger serviced by an Authorized SKIL Service Station. Battery Pack Error If the charger detects a problem, the red Error Indicator will begin flashing.

  • Page 60: Maintenance

    Preventive maintenance performed by unauthorized personnel may WARNING result in misplacing of internal wires and components which could cause serious hazard . We recommend that all tool service be performed by a SKIL Factory Service Center or Authorized SKIL Service Station. General Maintenance WARNING When servicing, use only identical replacement parts .

  • Page 61: Limited Warranty Of Skil Consumer Tools

    LIMITED WARRANTY OF SKIL CONSUMER TOOLS 2 YEAR LIMITED WARRANTY Chervon North America, Inc. (“Seller”) warrants to the original purchaser only, that all SKIL consumer BATTERIES AND CHARGERS will be free from defects in material or workmanship for a period of two years from date of purchase.
