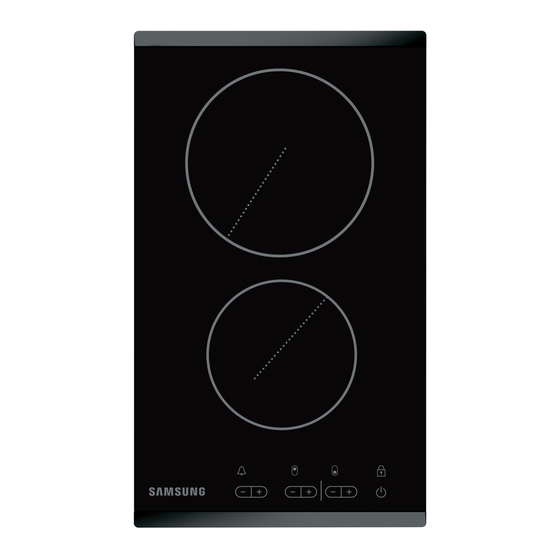

- Page 1 Ceramic Glass Hob User manual CTR432NB02 CTR432NB02_XSP_DG68-00315C-00_EN.indd 1 2017-07-24 6:00:32...
-
Page 2: Table Of Contents
Contents Contents Hob use Using this manual Initial cleaning The following symbols are used in this User Manual: Using suitable cookware Model name & serial number Using the touch buttons Safety instructions Switching the appliance on Temperature control Disposing of the packaging material Switching the appliance off Proper disposal of your old appliance Switching a cooking zone off... -
Page 3: Using This Manual
Using this manual Safety instructions Please take the time to read this owner’s manual, paying particular attention to the The safety aspects of this appliance comply with all accepted technical and safety safety information contained in the following section, before using your appliance. standards. - Page 4 Safety instructions Accessible parts may become hot during use. Young children This appliance can be used by children aged from 8 years and should be kept away. above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have A steam cleaner is not to be used to clean the product.
- Page 5 Do not use the hob to heat aluminium foil, products wrapped CAUTION in aluminium foil or frozen foods packaged in aluminium Be sure the appliance is properly installed and grounded by a cookware. qualified technician. Liquid between the bottom of the pan and the hob can produce The appliance should be serviced only by qualified service steam pressure.
-
Page 6: Disposing Of The Packaging Material
Safety instructions Always keep the control panels clean and dry. Disposing of the packaging material Never place combustible items on the hob, it may cause fire. WARNING All materials used to package the appliance are fully recyclable. Sheet and hard There is the risk of burns from the appliance if used carelessly. -
Page 7: Installing The Hob
Installing the hob Connecting to the outlet WARNING Be sure the new appliance is installed and grounded only by qualified personnel. Before connecting, check that the nominal voltage of the appliance, that is, the Please observe this instruction. The warranty will not cover any damage that may voltage stated on the rating plate, corresponds to the available supply voltage. -
Page 8: Installing Into The Countertop
Installing the hob Installing into the countertop NOTE • Make a note of the serial number on the appliance rating plate prior to installation. This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the underside of the appliance. -
Page 9: Parts And Features
Parts and features Control panel Cooking zones Timer button Timer indicator Heat settings and residual heat indicator Lock button Single cooking zone 1790 W (183 mm) Timer setting buttons Single cooking zone 1190 W (148 mm) Heat setting buttons Control panel On/Off button Components Installation Brackets... -
Page 10: The Key Features Of Your Appliance
Parts and features The key features of your appliance Digital displays The four display fields are assigned to the four cooking zones. • Ceramic glass cooking surface: The appliance has a ceramic glass cooking They show the following information: surface and four rapid - response cooking zones. The hob’s powerful radiant •... -
Page 11: Residual Heat Indicator
Hob use Other reasons why a cooking zone will switch itself off Initial cleaning • All cooking zones will immediately switch themselves off if liquid boils over Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass and lands on the control panel. -
Page 12: Using The Touch Buttons
Hob use Switching the appliance on Energy saving tips NOTE Touch the Lock button for You can save valuable energy by observing the following points. approximately 3 seconds. • Always position pots and pans before switching on the cooking zone. •... -
Page 13: Switching The Appliance Off
Switching the appliance off Using the child safety lock You can use the child safety lock to safeguard against unintentionally turning on To completely switch off the appliance, use a cooking zone and activating the cooking surface. The Lock button can be used the On/Off button. -
Page 14: Timer
Hob use Timer To display the time remaining for any of the cooking zones, use the Timer button. The corresponding control indicator will begin to blink slowly. The settings There are two ways to use the timer: are reset using the Timer setting buttons ( ). -
Page 15: Locking And Unlocking The Control Panel
Locking and unlocking the control panel Suggested settings for cooking specific foods The figures in the table below are guidelines. The heat settings required for At any stage during the cooking process, the control panel, with the exception of various cooking methods depend on a number of variables, including the quality the On/Off button, can be locked in order to prevent the settings from being of the cookware being used and the type and amount of food being cooked. -
Page 16: Cleaning And Care
Cleaning and care Stubborn soiling To remove food that has boiled over WARNING and stubborn splashes, use a glass Cleaning agents must not come into contact with a heated ceramic glass surface: scraper. All cleaning agents must be removed with adequate amounts of clean water after Place the glass scraper at an angle to cleaning because they can have a caustic effect when the surface becomes hot. -
Page 17: To Avoid Damaging Your Appliance
To avoid damaging your appliance Problem dirt Remove burnt-on sugar, melted plastic, • Do not use the hob as a work surface or for storage. aluminium foil or other materials with • Do not operate a cooking zone if there is no pan on the hob or if the pan is a glass scraper immediately and while empty. -
Page 18: Warranty And Service
Warranty and service Warranty and service FAQs and troubleshooting What should I do if, after the cooking zones have been switched off, residual warmth is not indicated in the display? A fault may result from a minor error that you can correct yourself with the help Check for the following possibility: of the following instructions. -
Page 19: Service
Technical data Service Technical data Before calling for assistance or service, please check the section FAQs and Width 288 mm troubleshooting on page 18. Appliance dimensions Depth 505 mm If you still need help, follow the instructions below. Height 50 mm Is it a technical fault? Width 273 mm... - Page 20 NEW ZEALAND 0800 726 786 www.samsung.com/nz/support CHINA 400-810-5858 www.samsung.com/cn/support www.samsung.com/hk/support (Chinese) HONG KONG 3698 4698 www.samsung.com/hk_en/support (English) INDIA 1800 40 SAMSUNG (1800 40 7267864) (Toll-Free) www.samsung.com/in/support 09612300300 BANGLADESH www.samsung.com/in/support 08000300300 (Toll free) 021-56997777 INDONESIA www.samsung.com/id/support 08001128888 JAPAN 0120-363-905 www.samsung.com/jp/support...
