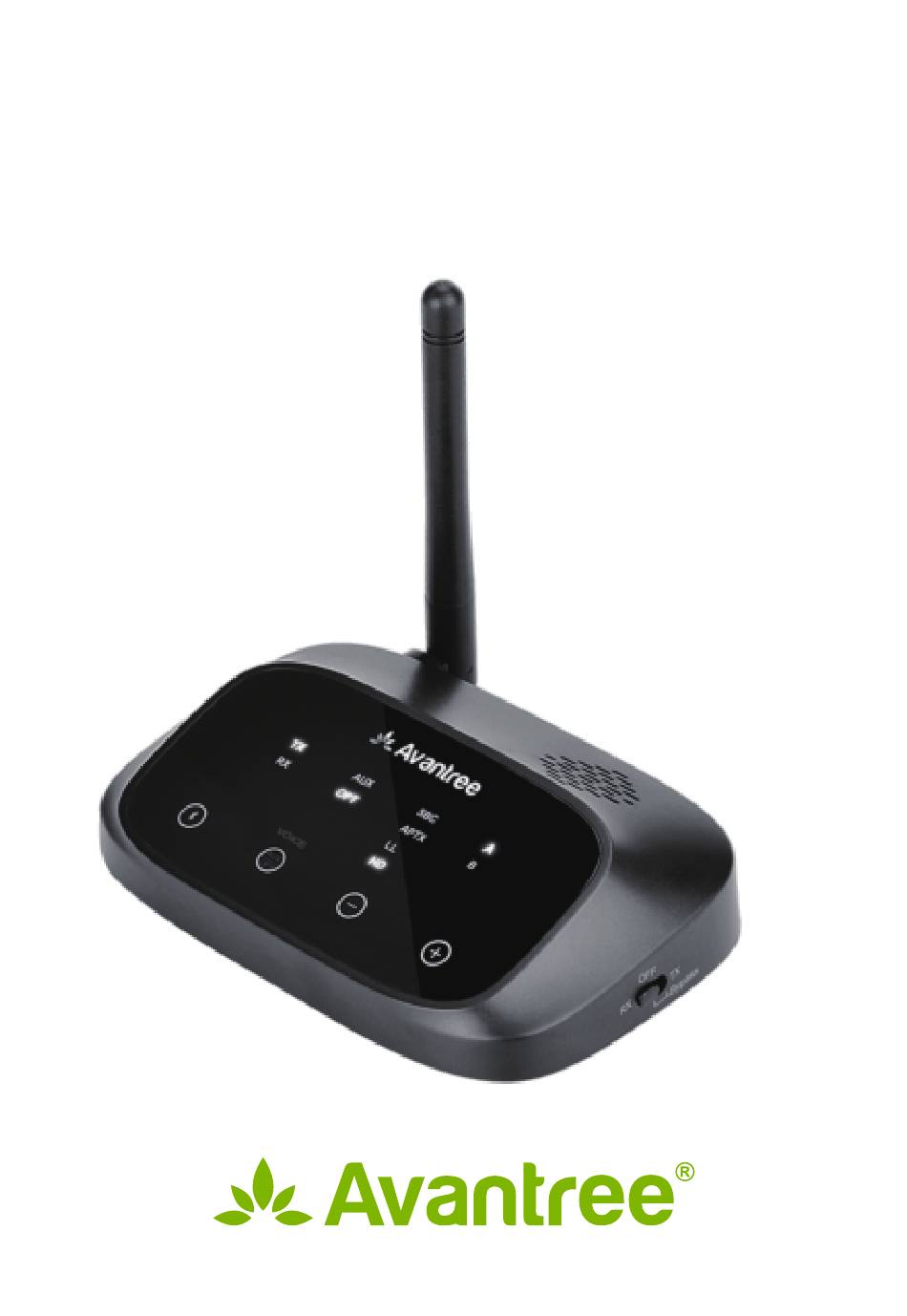

- Page 1 Avantree Oasis Plus User Manual Model No.: BTTC-500P-GRY...
- Page 3 User Manual OASIS PLUS User Manual Bedienungsanleitung Guide de démarrage rapide Guida di avvio rapido Guía de inicio rápido 取扱説明書...
- Page 4 OASIS PLUS User Manual Video Guide Prefer to watch a video tutorial? Scan the QR code below or visit avantree.com/oasis-plus/video for a step-by-step guide. VIDEO GUIDE Book an Appointment You can also book a 1-on-1 setup appointment with one of our support agents at...
-
Page 5: Table Of Contents
OASIS PLUS User Manual Table of Contents Box Contents Product Introduction Product Overview Button Functions LED Indicators Use for TV Watching (Transmitter Mode) Connecting to TV OPTION 1: Optical port (recommended) OPTION 2: AUX 3.5mm port OPTION 3: RCA port... -
Page 6: Box Contents
OASIS PLUS User Manual Box Contents Oasis Plus - Bluetooth Digital Optical Audio Cable transmitter AUX 3.5mm Audio Cable AUX 3.5mm to RCA Adapter Micro USB Power Cable... -
Page 7: Product Introduction

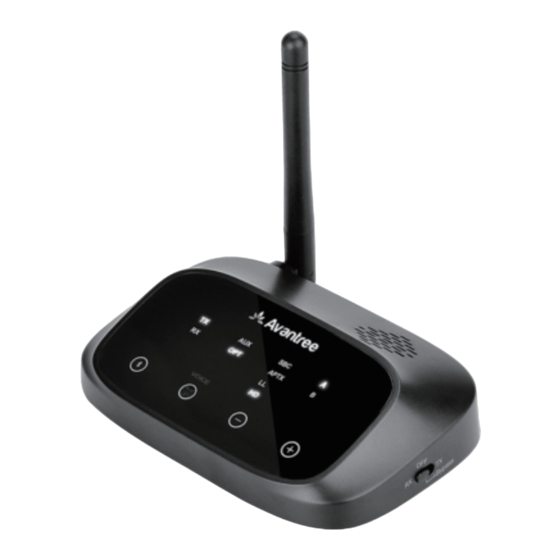

OASIS PLUS User Manual Product Introduction Product Overview Audio signal indicators Voice prompt speaker Audio codec indicators Mode indicators Device connection indicators Mode switch APTX VOICE ON/OFF Low latency (LL) / High-def (HD) priority switch Volume control buttons PAIR Audio input swap / Voice... -
Page 8: Button Functions
OASIS PLUS User Manual Button Functions Button Functions Switch to “TX” position to turn the Oasis Plus on & place it into transmitter mode Switch to “RX” position to turn the Oasis Plus on & place it into receiver mode Bypass Switch to "OFF"... -
Page 9: Led Indicators
OASIS PLUS User Manual LED Indicators No. Indicator Status Solid white light by "TX" / TX: Transmitter mode; "RX" RX: Receiver mode & white Alternate green Pairing ashes by "TX" / "RX" Flashing white light by Reconnecting to last-used "TX" / "RX"... -
Page 10: Use For Tv Watching (Transmitter Mode)
TRANSMITTER MODE Use for TV Watching Connecting to TV The Oasis Plus must be connected to a power source via the provided power cable in order to function. Plug the transmitter into either: 1. A TV’s USB power port (we recommend this so that they auto power ON / OFF in tandem with your TV), OR 2. -
Page 11: Option 1 Optical Port (Recommended)
OASIS PLUS User Manual OPTION 1 Optical port (recommended) STEP 1 Plug the provided optical audio cable into the TV’s “optical OUT” or “OPT OUT” port, then plug the other end into the transmitter’s optical port in the “TX INPUT FROM TV” section. -
Page 12: Option 2 Aux 3.5Mm Port
User Manual OASIS PLUS OPTION 2 AUX 3.5mm port STEP 1 Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the transmit- ter’s AUX 3.5mm port in the “TX INPUT FROM TV” section. -
Page 13: Option 3 Rca Port
User Manual OASIS PLUS OPTION 3 RCA port STEP 1 Plug the red & white RCA connectors into the TV’s “AUDIO OUT” ports, then use the provided RCA to AUX adapter to plug the other end into the transmitter’s AUX 3.5mm port in the “TX INPUT FROM TV”... -
Page 14: Connecting Your Headphones
OASIS PLUS User Manual TRANSMITTER MODE Connecting Your Headphones Now that your Oasis Plus is all set up, you can connect your headphones to the transmitter. STEP 1 First, power everything on. STEP 2 For rst time use, the Oasis Plus will enter PAIRING MODE automatically. - Page 15 NOTE 2: Some smart TVs will automatically scan for and try to pair with any Bluetooth devices in its vicinity. If your TV prompts you to connect your Bluetooth headphones or the Oasis Plus, please "DENY" the request so that your device can properly pair with the transmitter.
-
Page 16: Setting Up Your Tv
User Manual OASIS PLUS TRANSMITTER MODE Setting Up Your TV FOR OPTICAL CONNECTIONS ONLY If you connected to your TV via the optical OUT or “OPT OUT” port, you’ll need to con gure your TV settings before you’ll receive audio. -
Page 17: Adding A Second Pair Of Headphones
Visit avantree.com/oasis-plus/video you’d prefer to watch a video guide on this process. STEP 1 Pair your rst pair of headphones to the Oasis Plus by following the steps in the “Connecting Your Headphones” section(Page 12). STEP 2 Once your rst device is successfully connected, put your Oasis Plus into PAIRING MODE once again by pressing &... -
Page 18: Reconnecting Your Headphones
NOTE: If you paired your headphones with a di erent Bluetooth device, turn Bluetooth OFF on said device(s). Airpods in particular will always prioritize iPhones for automatic pairing, so you'll need to turn your iPhone's Bluetooth OFF when pairing your Airpods with the Oasis Plus. -
Page 19: Listening With A Soundbar (Bypass Function)
OASIS PLUS User Manual TRANSMITTER MODE Listening with a Soundbar The Oasis Plus’s pass-through function allows you to listen through both headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Slide to the “TX / BYPASS” or "OFF" position. -
Page 20: Use As Wireless Audio Receiver (Receiver Mode)
User Manual RECEIVER MODE Use as Wireless Audio Receiver The Oasis Plus’s receiver (RX) mode allows you to receive audio from a Bluetooth enabled source (such as a phone) and output it through a non Bluetooth compatible speaker or similar. - Page 21 “Avantree Oasis Plus” from the Bluetooth menu. MY DEVICES Avantree Oasis Plus Ⅱ STEP 6 Keep the Oasis Plus & your device close together and wait for 5-10s. Once connected, the “RX” indicator and the device connection indicator’s “A” will turn a solid white.
-
Page 22: Speci Cations
OASIS PLUS User Manual Speci cations Bluetooth version v5.0 Supported pro les A2DP, AVRCP aptX-HD, aptX-LL, FastStream, Audio codecs aptX, SBC Operating range Up to 164ft / 50m Input voltage / current DC5.0V / 500Ma-2A Supported sampling rate in ≤48KHz, 16bit... -
Page 23: Faq
Why am I getting audio delay? Both the sender (i.e. the Oasis Plus) and the receiver (i.e. your Bluetooth headphones) must support either aptX Low Latency or FastStream in order to eliminate audio latency. You can check your device's specs to ensure it supports either of these audio codecs. - Page 24 OASIS PLUS User Manual Why aren't I getting sound from my headphones? How do I connect my Oasis Plus to my Samsung / LG smart ..For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/oasis-plus, or you can contact...
-
Page 25: Contact Us
OASIS PLUS User Manual Contact Us Support Tickets avantree.com/submit-a-ticket Support Email support@avantree.com USA / CA +1800 232 2078 (9am-6pm PST, Mon-Fri ) +44 20 8068 2023 (9am-6pm, GMT, Mon-Sat) +49 32221097297 (11am-9pm, CET, Mon-Sat ) + 33 176340312 (11am-9pm, CET, Mon-Sat ) - Page 26 UK Importer: Avantree Limited Watford, WD180 0HQ UK Servicer in Europe: Gizmex GmbH, Sternstr. 67, 40479 Dusseldorf, Germany Tel: 01 – 408 334 8648 support@avantree.com Model No:BTTC-500P-GRY Dispose of the packaging and this product in accordance with the latest provisions. Z-PKQG-TC500P-V7...
