Summary of Contents for Avantree Oasis Plus 2

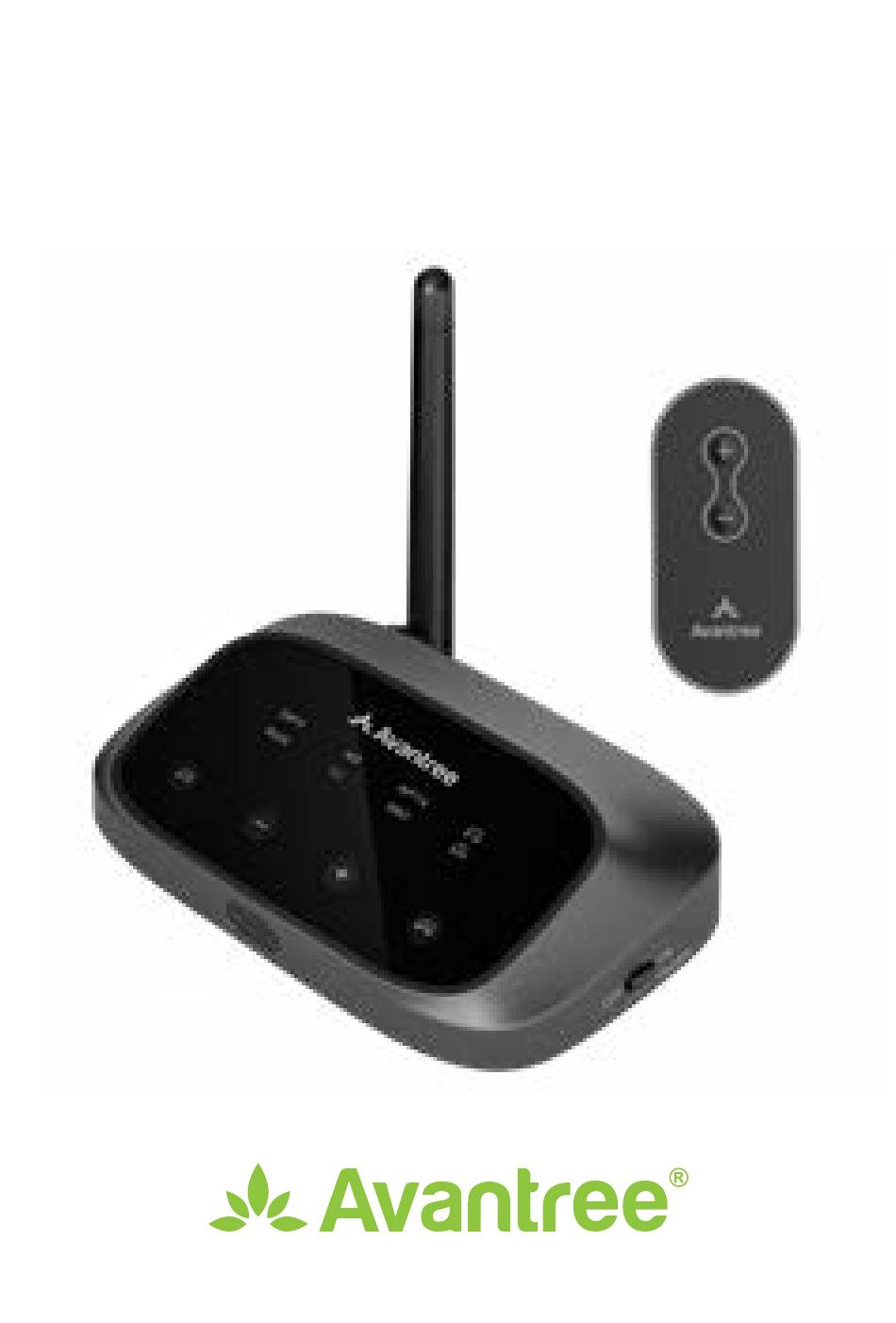

- Page 1 Oasis Plus 2 User Manual Item No.: BTTC-500P-2...
-
Page 2: Table Of Contents
User Manual OASIS PLUS 2 Table of Contents Box Contents 3... -
Page 3: Box Contents

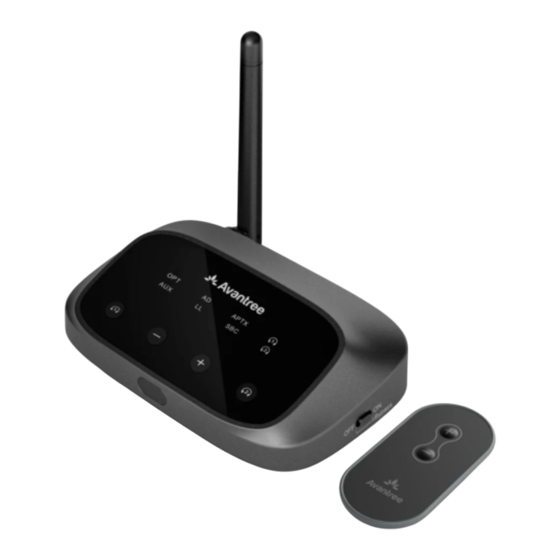

User Manual OASIS PLUS 2 Box Contents OP T APT X AU X Oasis Plus 2 - Bluetooth Digital Optical Transmitter Audio Cable AUX 3.5mm AUX 3.5mm to Audio Cable RCA Adapter Type C Power Remote Cable... -
Page 4: Product Introduction
User Manual OASIS PLUS 2 Product Introduction Product Overview Audio Codec Indicators Audio Signal Device Connection Indicators Indicators ON / OFF OP T APT X Switch Button AU X TV / AVR Switch Button Volume Control Buttons Pair Buttons Volume... -
Page 5: Button Functions
User Manual OASIS PLUS 2 Button Functions Button Functions Switch to ON/OFF to turn it on/off Bypass Switch to TV/AVR mode while connecting via AUX cable AUX only Press once to adjust volume Press & hold both buttons for 7 seconds to clear pairing history Press &... -
Page 6: Led Indicators
User Manual OASIS PLUS 2 LED Indicators Indicator Status Flashing white light by Invalid audio signal "OPT" / "AUX" Solid white light by Valid audio signal "OPT" / "AUX" Audio streaming in the aptX Solid white light by "AD," adaptive, aptX low latency, "LL,"... -
Page 7: Set Up
OASIS PLUS 2 Set Up Connecting to TV The Oasis Plus 2 must be connected to a power source via the provided power cable in order to function. Plug the transmitter into either: 1. A TV’s USB power port (we recommend this so that they auto power ON / OFF in tandem with your TV), OR 2. - Page 8 User Manual OASIS PLUS 2 Optical port (recommended) OPTION 1 Plug the provided optical audio cable into the TV’s “optical OUT” or “OPT OUT” port, then plug the other end into the transmitter’s optical port in the “TX INPUT FROM TV” section.
- Page 9 User Manual OASIS PLUS 2 AUX 3.5mm port OPTION 2 Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the trans- mitter’s AUX 3.5mm port in the “TX INPUT FROM TV” section.
- Page 10 User Manual OASIS PLUS 2 RCA port OPTION 3 Plug the red & white RCA connectors into the TV’s “AUDIO OUT” ports, then use the provided RCA to AUX adapter to plug the other end into the transmitter’s AUX. Output To...
-
Page 11: Connecting Your Headphones
User Manual OASIS PLUS 2 Connecting Your Headphones Now that your Oasis Plus 2 is all set up, you can connect your headphones to the transmitter. STEP 1 First, power everything on. STEP 2 For first time use, the Oasis Plus 2 will enter PAIRING MODE automatically. - Page 12 Bluetooth devices in its vicinity. If your TV prompts you to connect your Bluetooth headphones or the Oasis Plus 2, please "DENY" the request so that your device can properly pair with the transmitter. Avantree Oasis Plus 2 Your permission is require d to connect your device to TV.
-
Page 13: Setting Up Your Tv
User Manual OASIS PLUS 2 Setting Up Your TV ( FOR OPTICAL CONNECTIONS ONLY ) If you connected to your TV via the optical OUT or “OPT OUT” port, you’ll need to configure your TV settings before you’ll receive audio. -
Page 14: Advanced Features
Visit avantree.com/oasis-plus-2/video if you’d prefer to watch a video guide on this process. STEP 1 Pair your first pair of headphones to the Oasis Plus 2 by following the steps in the “Connecting Your Headphones” section(Page 11). -
Page 15: Reconnecting Your Headphones
PAIRING mode. Please refer to your headphones’ / speaker’s user manual for more details if necessary. STEP 4 Keep the Oasis Plus 2 & your second device close together and wait for 5-10s until they connect. Once connected, the connection indicator’s “... -
Page 16: Listening With A Soundbar
Bluetooth OFF when pairing your Airpods with the Oasis Plus 2. Listening with a Soundbar The Oasis Plus 2’s pass-through function allows you to listen through both headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Plug an additional optical or 3.5mm AUX cable into the cor-... -
Page 17: Using The Remote
Facing the remote to the infrared window in front of the Oasis Plus 2 within 4 meters and no obstacles. If your remote runs out of power, you can replace the battery with any CR2025 3V Lithium battery. -
Page 18: Specifications
User Manual OASIS PLUS 2 Specifications Bluetooth version v5.3 Supported profiles A2DP, AVRCP Audio codecs aptX adaptive, aptX-LL, aptX, SBC Operating range Up to 164ft / 50m Input voltage / current DC5.0V / 500Ma-2A Supported sampling rate in ≤48KHz, 16bit... -
Page 19: Faq
-- please refer to avantree.com/oasis-plus-2/sound for more details. Why am I getting audio delay? Both the sender (i.e. the Oasis Plus 2) and the receiver (i.e. your Bluetooth headphones) must support either aptX Low Latency or aptX adaptive in order to eliminate audio latency. - Page 20 User Manual OASIS PLUS 2 Why aren't I getting sound from my headphones? How do I connect my Oasis Plus 2 to my Samsung / LG smart ..For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/oasis-plus-2, or you can...
-
Page 21: Contact Us
Contact Us Support Tickets avantree.com/submit-a-ticket Support Email support@avantree.com Support Numbers US +1 800 232 2078 9am-6pm PST Mon-Fri CA +1 800 232 2078 9am-6pm PST Mon-Fri UK +44 208 068 2023 9am-6pm GMT Mon-Sat DE +49 322 2109 7297 11am-9pm CET... - Page 22 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
