Summary of Contents for Avantree BTTC-318
-

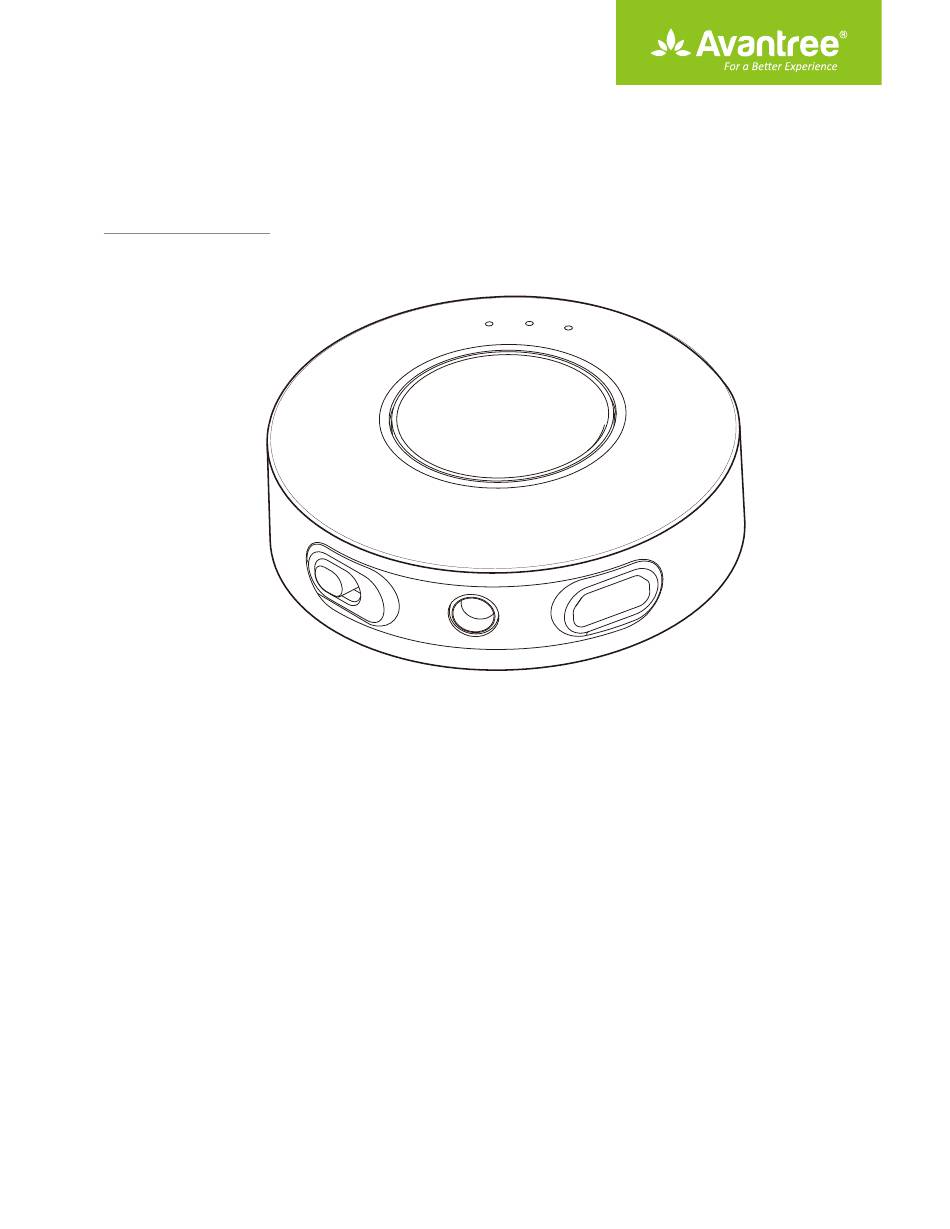

Page 1: Table Of Contents
User Manual Bluetooth Transmitter BTTC-318 Overview ································································································································ LED indicator status ········································································································· Pair and connect to Bluetooth headphones ···················································· ················································································································ Use with your TV Check your TV output options before the set up ···································· ········································································ TV s with AUX 3.5mm audio out ··... -
Page 2: Overview
Overview LED indicator status Status LEDs indication Power On/O BLUE LED on for 1 second Pairing BLUE LED ashes alternately Using the aptX LL WHITE LED ashes TWICE per 5 seconds WHITE LED ashes ONCE per 5 seconds Using the aptX Connected Using the FastStream BLUE... -
Page 3: Pair And Connect To Bluetooth Headphones
Pair and connect to Bluetooth headphones Powering up and turn on the Priva III: Connect it to a TV USB port (now ensure your TV is turned on) or any other USB charger that supports 5V/500mA -2A (e.g. your phone charger) using included Micro USB power cable. Slide on/o switch to“ON” position, BLUE LED will be on for 1 second. -
Page 4: Tv S With Aux 3.5Mm Audio Out
TV s with AUX 3.5mm audio out After pairing the Priva III to your Bluetooth headphones and connecting cables, you should be able to hear sound from your headphones; if not, ensure your TV speaker is set to “Headset”. TVs with RCA audio out (Red/White ports labeled “AUDIO OUT”) After pairing the Priva III to your Bluetooth headphones and connecting cables, you should be able to hear sound... -
Page 5: Tvs With Optical Audio Out
Ensure your TV speaker is set to “External Speaker”. TVs with OPTICAL audio out After pairing the Priva III to your Bluetooth headphones and connecting cables, you should be able to hear sound from your headphones; if not, Ensure your TV speaker is set to “External Speaker”. Ensure TV audio format is set to “PCM”... -
Page 6: Use With Your Av Receiver With 6.35Mm Phone Jack
Use with your AV Receiver with 6.35mm PHONE jack NOTES: Transmitter is NOT compatible with ANY RCA(L/R) ports on back of your AV Receiver, ONLY use the BIG 6.35MM PHONE OUT on front side of your AV Receiver with the 6.35mm to 3.5mm adapter. Do NOT set the volume too high. -
Page 7: Add A 2Nd Pair Of Bluetooth Headphone
Set the “Avantree Priva III” as the “Default Device”. For Skype audio settings, please select “Avantree Priva III” for both Speakers and Microphone. Add a 2nd pair of Bluetooth headphone Step 1: Pair and connect the Priva III to 1st Bluetooth headphone. -
Page 8: Clear Paired History
Step 1: Enter Priva III into pairing mode - press and hold MFB for 1 second until LED ashes BLUE alternately. Step 2: Press and hold MFB button for 5 seconds, BLUE LED is on for 2 seconds, now paired history of Priva III is all cleared. Then Priva III will enter pairing mode automatically. Troubleshooting https://support.avantree.com/hc/en-us/sections/360000234783-Priva-III-BTTC-318-BLK-...
