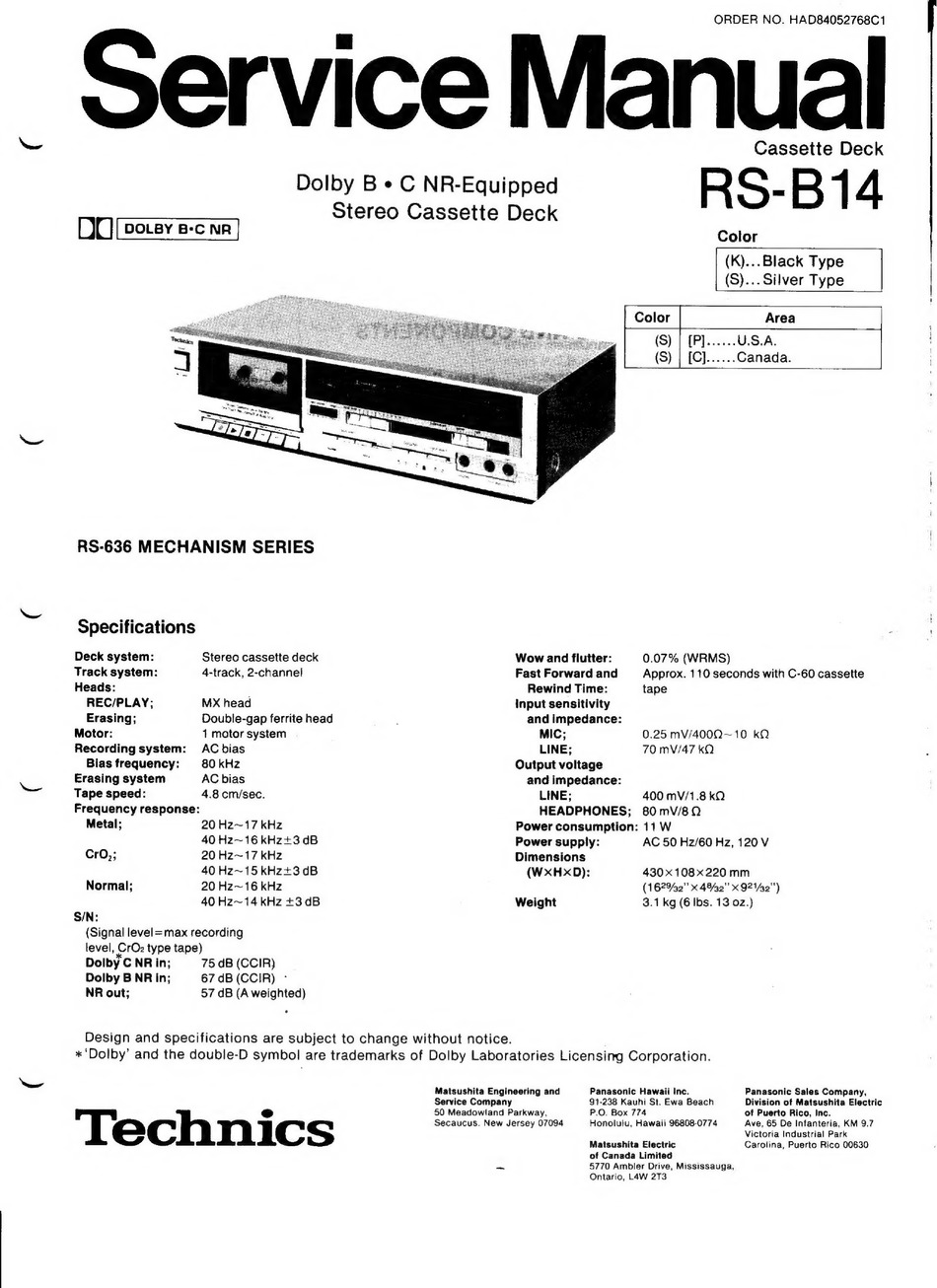

Technics RS-B14 Service Manual

ORDER NO. HAD84052768C1
Service Manual
Cassette Deck
RS-B14
Stereo Cassette Deck DC poer ecc wn]
RS-636 MECHANISM SERIES
Specifications
Deck system:
Track system:
Heads:
REC/PLAY;
Erasing;
Motor:
Recording system:
Bias frequency:
Erasing system
Tape speed:
Frequency response:
Metal;
CrO;;
Normal;
S/N:
Stereo cassette deck
4-track, 2-channel
MX head
Double-gap ferrite head
1 motor system
AC bias
80 kHz
AC bias
4.8 cm/sec.
20 Hz~17 kHz
40 Hz—16 kHz 3 dB
20 Hz~17 kHz
40 Hz~15 kHz X3 dB
20 Hz—16 kHz
40 Hz~14 kHz +3 dB
(Signal level=max recording
level, CrOz type tape)
Dolby C NR in;
Dolby B NR in;
NR out;
75 dB (CCIR)
67 dB(CCIR) :
57 dB (A weighted)
