3.2.6

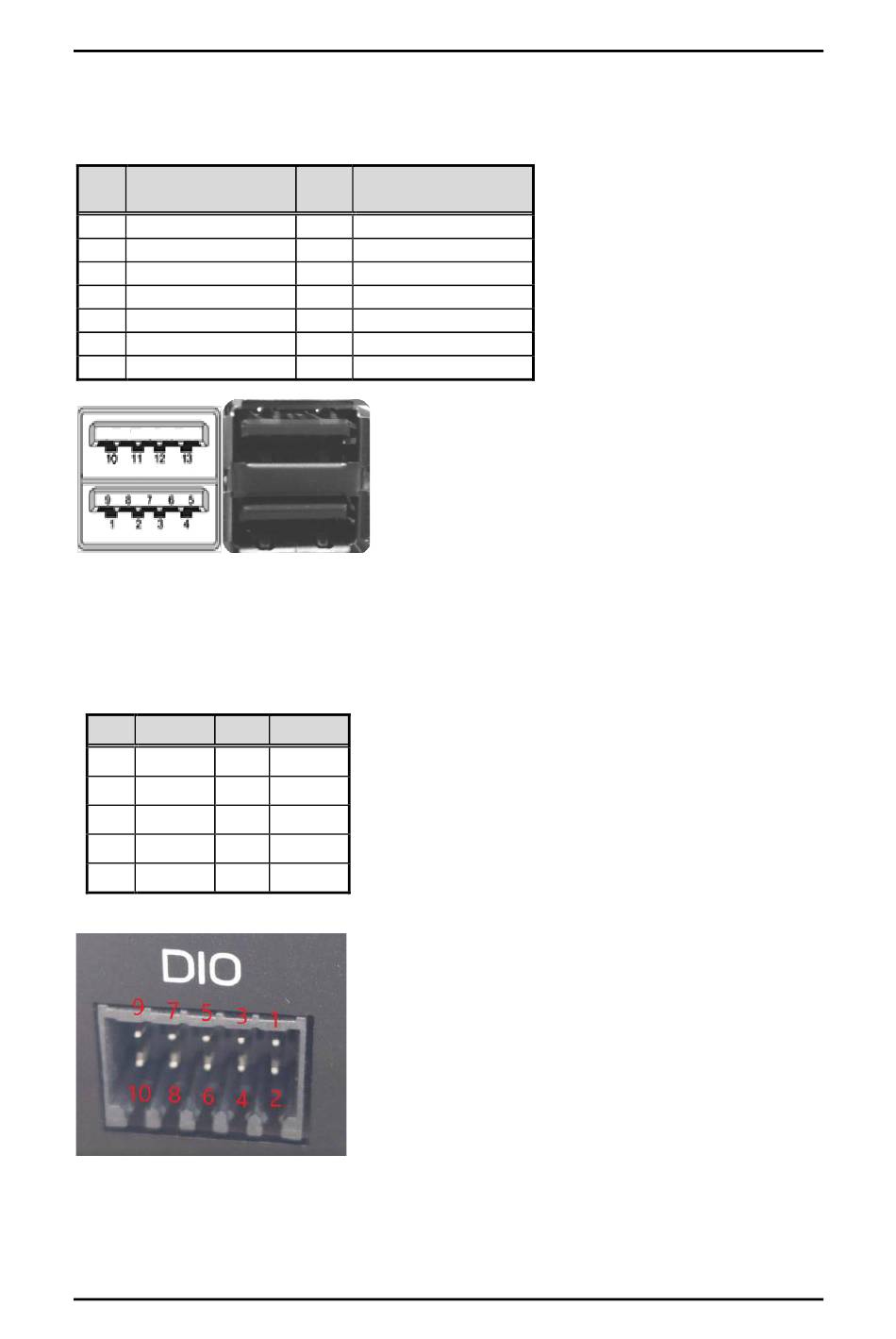

USB 2.0/ USB 3.0 Port Connector (CN7)

The Universal Serial Bus connectors are compliant with USB 3.2 Gen1 and USB 2.0, ideal for
installing. USB peripherals such as scanners, cameras, USB devices, etc.
Pi Signal
n
1 USB VCC (+5V level)
2 USB_Data0-
3 USB_Data0+
4 GND
5 SSRX0-
6 SSRX0+
7 GND
3.2.7

8-CH DI/DO Connector (CN8)

The RSC101 is equipped with a programmable 8-channel digital I/O connector that
meets requirements for the system customary automation control.
Pin Signal Pin
1 +V5S 2
3 DIO0 4
5 DIO1 6
7 DIO2 8
9 DIO3 10
Setting & connector
Pin Signal
8 SSTX0-
9 SSTX0+
10 USB VCC (+5V level)
11 USB #1_D-
12 USB #1_D+
13 GND
Signal
GND
DIO4
DIO5
DIO6
DIO7
