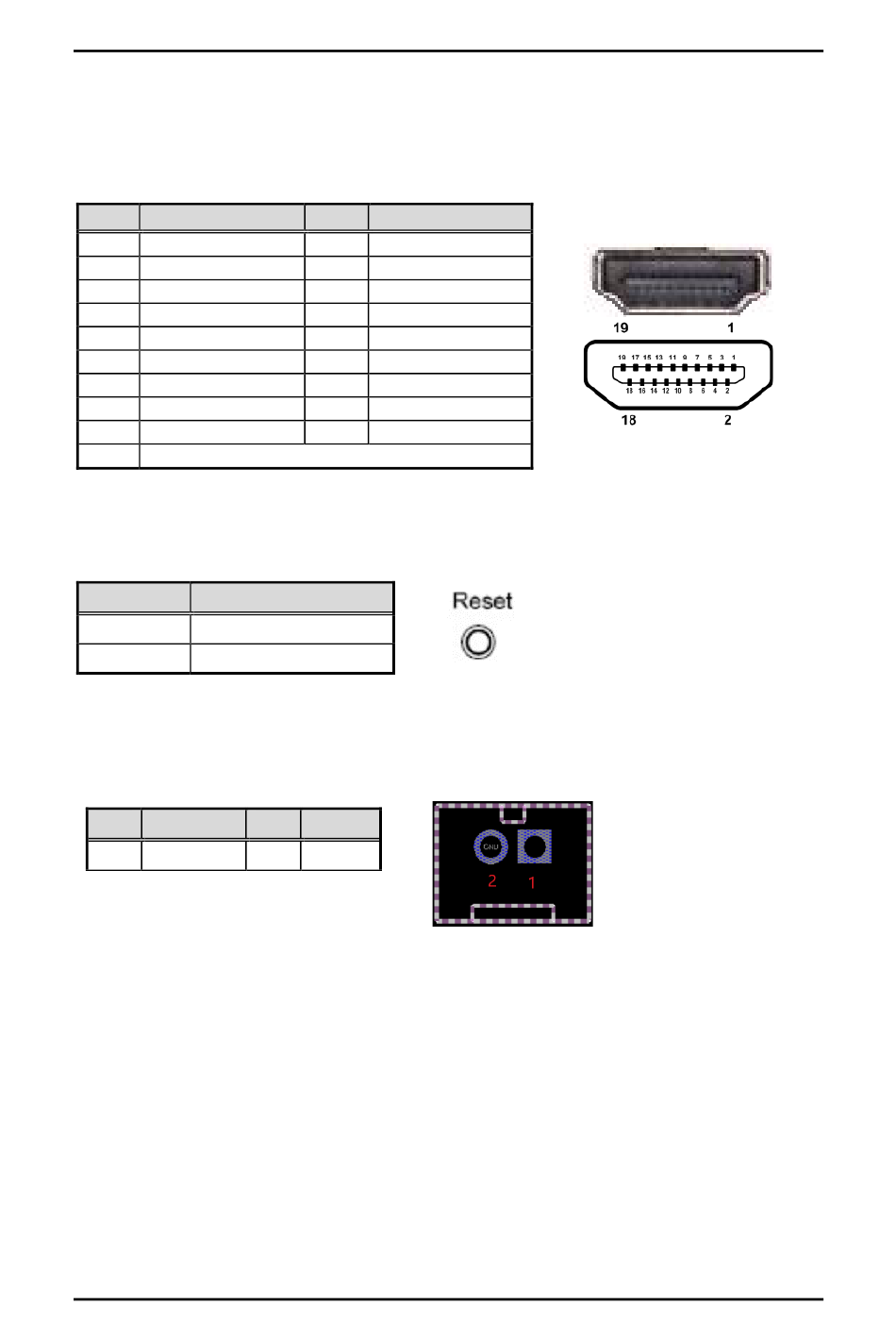

HDMI Connector (CN9)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which
is capable of transmitting high-definition video and high-resolution audio over a single
cable.
Pin Signal
1 HDMI OUT_DATA2+
3 HDMI OUT_DATA2-
5 GND
7 HDMI OUT_DATA0+
9 HDMI OUT_DATA0-
11 GND
13 N.C.
15 HDMI OUT_SCL
17 GND
19 HDMI_HTPLG
3.2.9

Reset Button (RST1)

The Reset button can allow users to reset RSC101 system.
Functions Descriptions
On Reset system
Off Keep system status

3.2.10 Battery Connector (BAT1)

RSC101 includes RTC battery providing power for the internal clock/calendar and for
maintaining system configuration settings.
Pin Signal
1 +BAT_3V
18
Pin Signal
2 GND
4 HDMI OUT_DATA1+
6 HDMI OUT_DATA1-
8 GND
10 HDMI OUT_Clock+
12 HDMI OUT_Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
Pin Signal
2 GND
Setting & connector
