SECTION 2
HARDWARE INSTALLATION
The RSC101 is convenient for your various hardware configurations, such as SSD (Solid State
Drive), WiFi/BT Module, 5G Module and SIM Card. The chapter 2 will show you how to install
the hardware.
Note: To support the IP40 rating, RSC101 must be installed with
waterproof SMA cables and antennas.
2.1
Expansion Module Installation

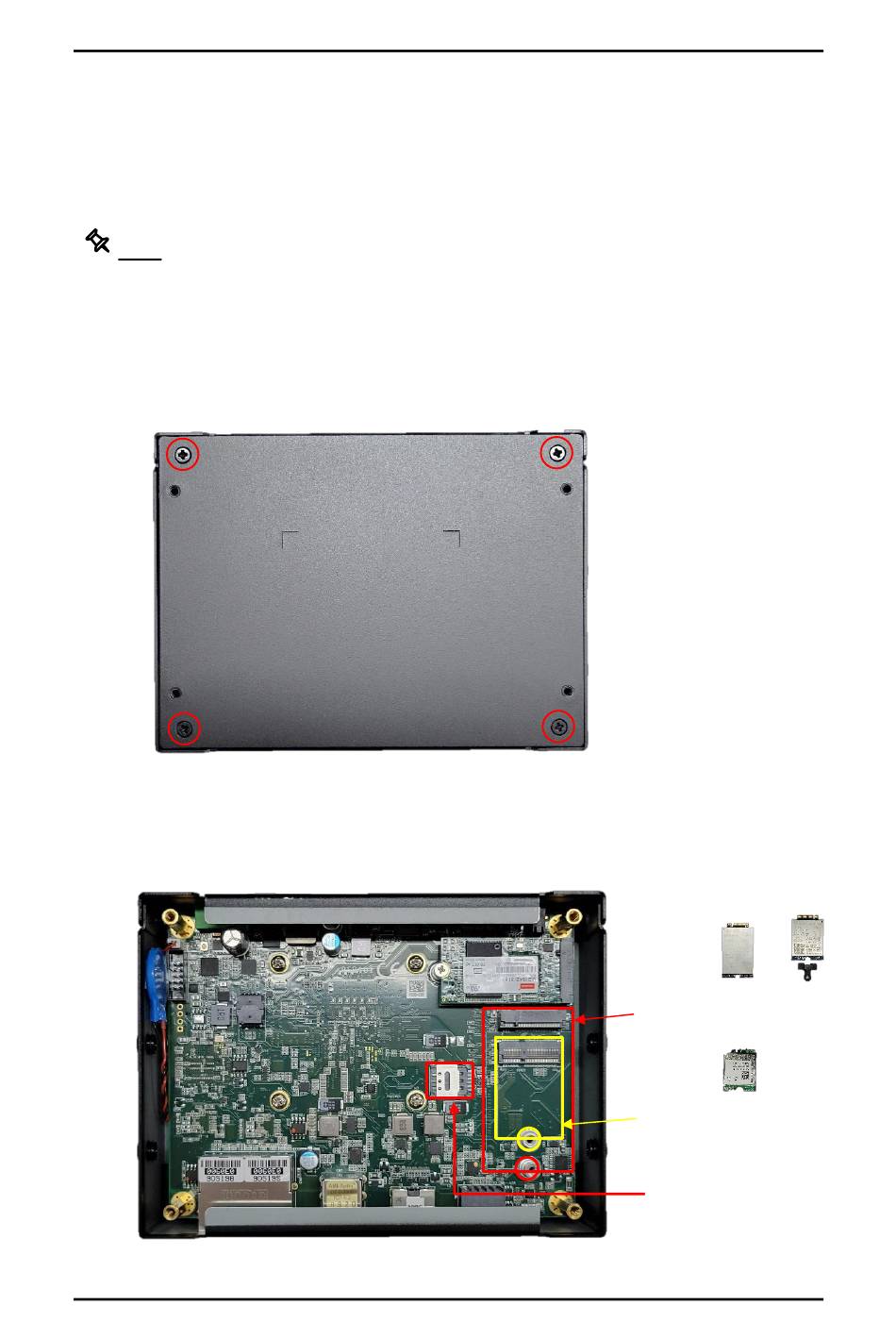

Step 1 Remove the bottom cover by unscrewing the four screws as shown.
Step 2 Locate the M.2 slots as shown. Follow standard procedures for installing
expansion modules. Note the location of the mounting screws .
M.2 Slot for 5G/LTE Module
M.2 Slot for WiFi Module
SIM Socket
Hardware Installation
9
