Summary of Contents for EURO MILAN EMD900FX

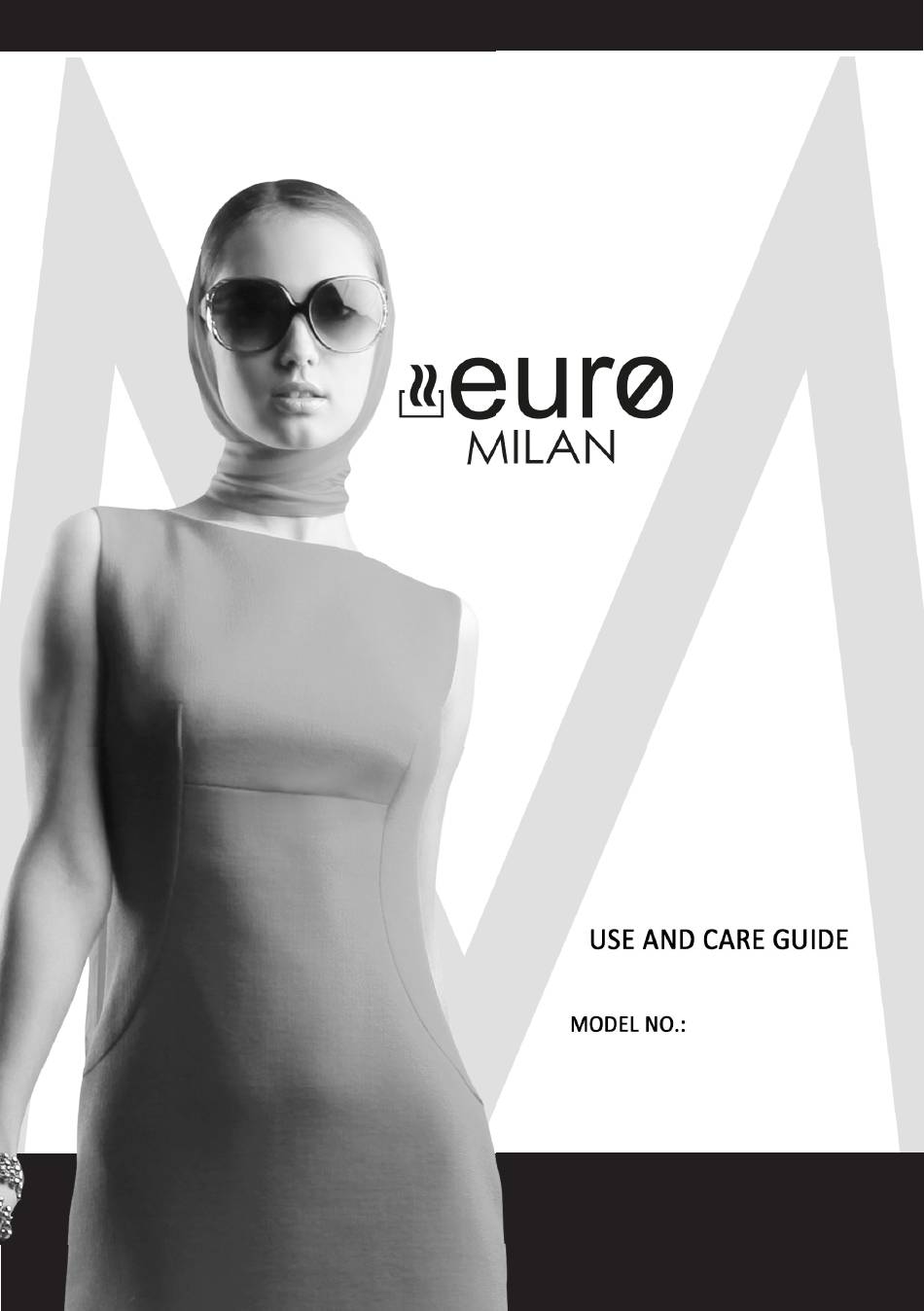

- Page 1 EMD900FX EMD900FAN EMD900FBG EMD900FWH 461308541...
- Page 2 The appliance was designed and made in accordance with the European standards listed below: => EN 30-1-1, EN 30-2-1 and EN 437 plus subsequent amendments (gas) => EN 60 335-1 and EN 60 335-2-6 (electrical) plus relative amendments The appliance complies with the prescriptions of the European Directives as below: =>...
-
Page 3: Table Of Contents
ASSISTANCE AND SPARE PARTS Before this appliance left the factory it was tested and set by specialized, expert personnel in order to guarantee the best functioning results. Any subsequent repairs or adjustments that may be necessary must be done with the maximum of care and attention by authorised personnel. -
Page 4: Important Notes And Precautions For Use
IMPORTANT NOTES AND PRECAUTIONS FOR USE removed from the outer surfaces and You have purchased one of our the various inner parts, thoroughly products for which we thank you. We check that the appliance is in perfect are confident that this new appliance, condition. - Page 5 IMPORTANT NOTES AND PRECAUTIONS FOR USE • Before cooking for the first time, WARNING - Accessible parts may ensure the oven is empty and its door become hot during use. To avoid closed, heat the oven at maximum burns young children should be kept temperature for two hours.
- Page 6 IMPORTANT NOTES AND PRECAUTIONS FOR USE • The appliance is not intended to be panel. operated by means of an external • Switch off the electrical supply before timer or separate remote-control you start cleaning or servicing the system appliance. •...
-
Page 7: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE PRESENTATION customer a good and safe use of the Our cooker is fitted with a fully gas appliance, the cookers have equipped hotplate. This innovative burner hotplate with a safety temperature device, which offers you more scope and versatility automatically turns on in case the in hotplate cooking than ever before. - Page 8 DESCRIPTION OF THE APPLIANCE DESCRIPTION OF THE CONTROLS HOB GAS BURNER KNOB (A) By rotating the knob in an anticlockwise direction, the following symbols appear: = Closed position = “Full on” position = “Reduced rate or Low” position OVEN ELECTRIC THERMOSTAT KNOB (C) By turning the oven knob clockwise we will find the different oven temperature values (from 50°...
- Page 9 DESCRIPTION OF THE APPLIANCE ANALOGIC PROGRAMMER To view the program press and release the knob and the timer show the selected program. GENERAL OPERATION When cooking stops the "END TIME" icon Pushing on the knob, you can: adjust the time, pro- gram the start time and end of cooking, set the alarm flashes and (Minute Minder).
- Page 10 INSTRUCTIONS FOR THE USER HOB: GENERAL NOTES ON SAFETY ABNORMAL OPERATION • When using the burners, do not leave the appliance Any of the following are considered to be abnormal unsupervised. Ensure that children and the infirm operation and may require servicing: do not play with the appliance.
- Page 11 INSTRUCTIONS FOR THE USER HOT SURFACE • Never cover the base of the oven or the oven shelf with aluminium foil or other materials, as this creates a fire hazard. • When grilling always put a little water in the grill pan.
- Page 12 INSTRUCTIONS FOR THE USER OVEN: GENERAL SAFETY INSTRUCTIONS • Do not leave the oven unsupervised during use. Ensure that children and the infirm do not play with the appliance. • Do not spray aerosols in the vicinity of this appliance while it is operating.
- Page 13 INSTRUCTIONS FOR THE USER HOW TO USE THE MULTIFUNCTION OVEN CONVENTIONAL GRILL COOKING (turnspit is only on some selected models) DEFROSTING AT ROOM TEMPERATURE Turn the selector knob to the symbol and place the Turn the selector knob to the symbol and adjust the food you want to defrost inside the oven.
- Page 14 INSTRUCTIONS FOR THE USER TIME AND TEMPERATURE CHART The above table gives guidelines for cooking a range of different foods, individual food, or personal preferences may slightly vary the oven position, temperature and cooking time from those suggested. Please note that: •...
- Page 15 INSTRUCTIONS FOR THE USER USEFUL COOKING TIPS Meat: • If, when cooking meat, the time needed is more than 40 minutes, turn the oven off 10 minutes Cakes and bread: before the end of cooking time to exploit the • Heat the oven for at least 15 minutes before you residual heat (energy saving).
-
Page 16: Instructions For The User
INSTRUCTIONS FOR THE USER OVEN CAVITY CLEANING AND MAINTENANCE Do not spray or wash the thermostat HOT PLATE bulb with acid based products (check the The burner caps and burner heads need to product label before use). be cleaned after each time they are used The manufacturer cannot be held liable for with warm soapy water, rinsed and then any damage caused by incorrect cleaning. - Page 17 INSTRUCTIONS FOR THE USER HOW TO CLEAN THE INNER OVEN DOOR GLASS One of the features of our cookers is that the inner oven door glass can be easily removed for cleaning without the aid of specialized personnel. Just open the oven door and remove the support securing the glass (fig.
-
Page 18: Troubleshooting
TROUBLESHOOTING Some problems can be caused either as the results of simple maintenance operations or by incorrect selection of settings. Prior to contacting a Service Centre please check the following chart. PROBLEM REMEDY The appliance is not working • Make sure the gas cock is open •... - Page 19 INSTRUCTIONS FOR THE INSTALLER POSITION (fig. 14) LEVELLING THE COOKER The appliance should be positioned in good light and • Adjustable feet, to be fitted to the appliance, which free from draughts. Any adjoining wall surface situated allow the height of the cooker to be aligned with other kitchen furniture This can be done by means within 200 mm from the edge of any hob burner must be a suitable non-combustible material for a height of 150...
- Page 20 INSTRUCTIONS FOR THE INSTALLER SECURING THE COOKER TO WALL (fig. 18) COOKER IN FINAL POSITION PULL BOTH SAFETY CHAINS AND SECURE THEM TO THE INSIDE OF Note:- The installation of the chain provided THE CUPBOARD WITH TWO SCREWS ON EACH is for safety reasons, it must be installed as SAFETY CHAIN.
- Page 21 INSTRUCTIONS FOR THE INSTALLER INSTRUCTION FOR STABILIZING THE COOKER The installation of the brackets provided is for safety reasons and must be installed as indicated below. EQUIPMENT QUANTITY n°2 n°2 n°4 WARNING: In order to prevent the cooker tipping forwards in the event of children standing on the oven door or where users put extreme weight on the door when in open position, the stabilising means must be installed by the installer.
- Page 22 INSTRUCTIONS FOR THE INSTALLER (fig.2) Mark it the same dis- tance, (X) on back wall. (fig.3) Drill two holes in the wall for each bracket according to the fig. 2 and fix the bracket. (fig.4) Push back the cooker against the wall. IMPORTANT: After fitting the stablising brackets and pushing the cooker into position, check that the cooker does not tilt forward or sideways Hose Restraint Chain...
- Page 23 INSTRUCTIONS FOR THE INSTALLER permanent deformation and should be able to be GAS CONNECTION inspected along its entire length. Unions compatible This appliance shall be installed only by authorised with the hose fittings must be used and connections personnel and in accordance with the manufacturer’s tested for gas leaks.
- Page 24 INSTRUCTIONS FOR THE INSTALLER ELECTRICAL CONNECTION TAPS (fig. 19) All gas taps are male cone type with only one way of The electrical connection must be carried out in passage. The adjustment screw (V) is on the side of accordance with the current standards and laws the stem.
- Page 25 INSTRUCTIONS FOR THE INSTALLER GAS CONVERSIONS Hot Plate Ignition Failure • Check alignment of burner holes to electrode. • Check aeration sleeve for adjustment for gas type, REPLACING THE INJECTORS Our burners can be adapted to different types of gas location and ambient conditions.
- Page 26 INSTRUCTIONS FOR THE INSTALLER MAINTENANCE Prior to any maintenance work or changing parts, disconnect the appliance from the gas and electricity power sources. Servicing must only be carried out by authorised personnel. REPLACING THE TAPS Proceed in the following way when replacing a tap • Remove pan supports, burner heads.
- Page 27 INSTRUCTIONS FOR THE INSTALLER MAINTENANCE REPLACING THE ELECTRICAL COMPONENT Prior to any maintenance work or changing • The rear protection will have to be removed in parts, disconnect the appliance from the gas order to change the electrical heating elements, and electricity power sources.
- Page 28 TECHNICAL FEATURES BURNER DISPOSITION AND BURNER TECHNICAL DATA TABLE BURNER OPERATING DIAMETER INJECTORS RATING DENOMINATION PRESSURE kPa 1/100 mm MJ/h Large U-LPG 2.75 10.0 Central front Natural 1.00 10.0 Medium U-LPG 2.75 Natural 1.00 Rear Small U-LPG 2.75 Right front Natural 1.00 U-LPG...
-
Page 30: Technical Features
TECHNICAL FEATURES Model cooker EMD900FX - EMD900FAN - EMD900FBG - EMD900FWH... - Page 33 SPACE FOR DATA LABEL 461308541...
