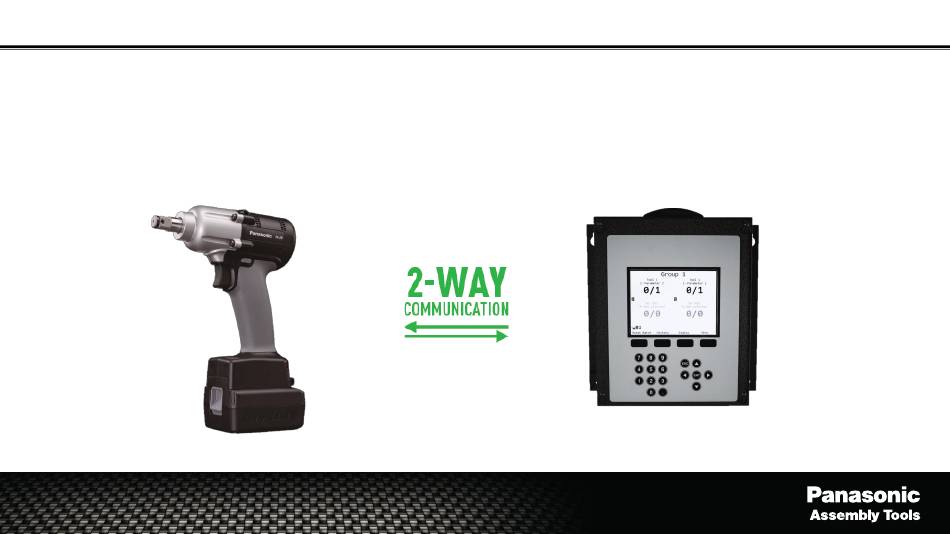

- Page 1 Two-Way Quick Programming Guide...
- Page 2 Two-Way Quick Programming Guide Two-Way communication capable Tool Models: EYFLA7AR, EYFLA8PR/CR/AR, EYFLA9PR/CR, EYFMA2PR/CR, EYFNA1PRT/CRT/,JRT, & EYFPA1JRT (Please refer to the Owner's Manual for further instruction beyond this Quick Guide) These models can operate in both One-Way mode or Two-Way mode.
- Page 3 How to set Programmable Features Num ber Button Setting Mode Tool display Description of Push 1~40: Shut-off Select stage with ＋/－button. Initial setting is 「F」. Torque setting F: Non shut-off Select stage with ＋/－button. Initial setting is 「L1」. Flush (Snug torque) detection mode L1: Stage1 1 time L1: For applications with light load bef ore snug point...
- Page 4 Two-Way Quick Programming Guide Note: The Default setting for the models listed on page 1 is One-Way communication mode. Important: The communication mode must be changed with the remote before learning the tool to the qualifier to initiate Two-Way communication. (See below instructions) To change the tool communication mode from the default “90”...
- Page 5 Two-Way Quick Programming Guide Learning tools to the Qualifier 1. Power up the qualifier. Press the button below, ‘Menu’. 2. Enter the password 1011 (default) using the numeric keypad and press ENT when completed. 3. In the menu, right arrow to “Tools” and press ENT. 4.
- Page 6 Two-Way Quick Programming Guide Learning tools to the Qualifier continued To the right, is an example of 2 tools learned to the Qualifier. • One tool is in One-Way mode “90” • The other tool is in Two-Way mode “91” Note the difference in illustration 1 •...
- Page 7 Two-Way Quick Programming Guide Editing the Parameters for each tool Tools can only be learned to Parameters 1-16. • Parameters 17-100 are assignable to any of the tools 1-16. • Go to “Parameters”, from the main menu. Select the parameter location you want then press “edit” (Assembly Manager software is available on our Website and can also be used...
- Page 8 Two-Way Quick Programming Guide Programing multiple Parameters to a single tool 1. Go to parameters tab (page 4) 2. Select 17 and above parameters 3. Go down to “tools:” to assign the tool. 4. Enter the number on the keypad 5.
