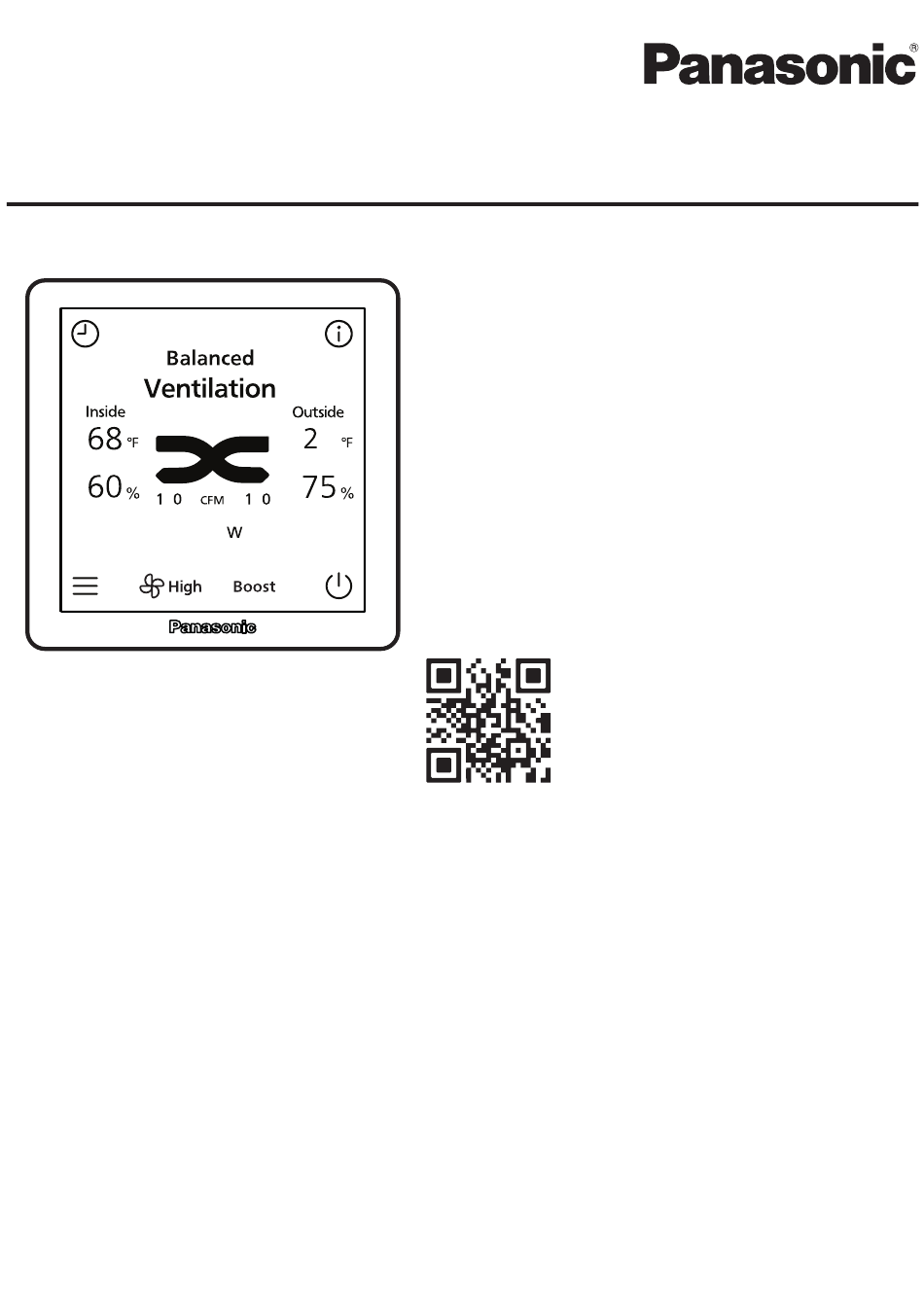

FV-SC16VEC1
Model No.
4
• The display will vary based on the
connected model.
APPLICABLE PRODUCTS:
•FV-16VEC1T
•FV-16VEC1S
READ AND SAVE THESE INSTRUCTIONS
Thank you for purchasing this Panasonic product. Read these instructions carefully before
attempting to install, operate or service the Panasonic product. Carefully read the "IMPORTANT SAFETY
INFORMATION". Failure to comply with instructions could result in personal injury or property damage. Explain
to users how to operate and maintain the product after installation and this manual should be presented to
users. Retain this manual for future references.
INSTALLATION AND OPERATING INSTRUCTIONS
3
4
30
•FV-13VEC1T
•FV-13VEC1S
CONTENTS
IMPORTANT SAFETY INFORMATION --------------------2
SUPPLIED ACCESSORIES---------------------------------3
DIMENSIONS------------------------------------------------4
INSTALLATION----------------------------------------------5
DISPLAY DESCRIPTION --------------------------------- 10
OPERATION ----------------------------------------------- 11
TROUBLESHOOTING ------------------------------------ 15
SPECIFICATIONS ----------------------------------------- 16
SERVICE --------------------------------------------------- 16
• Scan QR code for more resources
•FV-15VE1T
•FV-15VE1S
Wall Control
•FV-12VE1T
•FV-12VE1S
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panasonic FV-SC16VEC1
Summary of Contents for Panasonic FV-SC16VEC1
-
Page 1: Table Of Contents
Thank you for purchasing this Panasonic product. Read these instructions carefully before attempting to install, operate or service the Panasonic product. Carefully read the “IMPORTANT SAFETY INFORMATION”. Failure to comply with instructions could result in personal injury or property damage. Explain to users how to operate and maintain the product after installation and this manual should be presented to users. -
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION For Your Safety To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions. Explanation of symbol word panels The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. -
Page 3: Supplied Accessories
CAUTION Please wear appropriate personal protective equipment. Where appropriate, use the special-purpose or dedicated parts, such as the provided mounting fixtures, otherwise personal injury may result. Inspect all wiring connections ensuring they meet the correct current capacity. Disconnect power by switching off wall control first, then main switch and unplug the power plug before working on unit. -
Page 4: Dimensions
DIMENSIONS Unit: Inches (mm) 1/32 (13.5) 3 3/8 (86) 1 1/2 (36) 2 1/2 (60) 1 3/4 (42.6) PART NAME Screen Terminal Back cover Recessed cut out LED Light... -
Page 5: Installation
SDoC Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102 Customer Call Center: 1-866-292-7299 (USA) or 1-800-669-5165 (Canada) This device complies with Part 15 of the FCC Rules. - Page 6 Insert wires into the corresponding terminals deeply through the wire holders. Make sure the screw of the terminal securely fastens the copper wire and the copper wire is not exposed. Firmly connect the removable terminal block into terminal block. WALL CONTROL ERV TERMINAL REMOVE BACK COVER Remove the back cover with a small flat screwdriver.
- Page 7 WALL PERFORATIONS Temporarily put the back cover on the wall, mark terminal hole and screw position. Ensure that there is no obstructions behind location of that would interfere with hole and clear of any electrical lines. Remove the back cover, cut the terminal hole, drill the screw holes (Ø5/32 inches (Ø4mm)) and introduce the wall anchors.
-
Page 8: Advanced Settings
INSTALL WALL CONTROL SCREEN Carefully connect the cable to the plate. Fix the screen to the back cover. ADVANCED SETTINGS NOTE This section is only for configuration of the installer. Tap power icon to turn ON the unit. To access this interface, touch the MENU. Then you must press the setting “Gear icon”... - Page 9 Here, you can adjust more specific parameters according to what is required. Air volume The air volume adjustment can be made according to the configuration restrictions. •Press “Set” button to apply the modifications. These are the actual air volume. After setting up, please check the actual air volume to match the set air volume.
-
Page 10: Display Description
Duct configuration Auto-balance mode Activates or deactivates the automatic adjustment Please refer to the ERV unit manual for the of airflow based on the needs of the space. duct configuration explanation. DISPLAY DESCRIPTION Status Mode Each time you tap, Display the operation the mode changes. -
Page 11: Operation
OPERATION Displays the different operating modes of the ERV. Allows access to user settings and advanced settings. Ventilation Reduces the pressure state that allows the entry of fresh air and prevents the accumulation of contaminants. Display differs depending on supply and exhaust air volume. When “Supply”... -
Page 12: User Settings
USER SETTINGS In this section, various aspects can be found for modification at the user's discretion. Brightness Units Language Allow changing units for Language selection: English, Modifies the brightness temperature and fan speed. French and Spanish. control of the device. LED On / Off Humidity control Supply-only limits... - Page 13 Touch to change ON or OFF (Standby). Touch to change High / Low. Touch to change Boost ON/OFF.
- Page 14 Touch to change ON or OFF, the time can be programmed from 10 minutes to 12 hours. Once the time is programmed, press the “Set” button to apply the settings. Touch to check the current status. ICON OPERATION STATUS Frost prevention mode operation Humidity control operation Automatic runtime operation Intermittent runtime operation...
-
Page 15: Troubleshooting
Scan the QR code to get Indicates the remaining days Press the button to reset to change the filter showing more information about the countdown for the next the product. the next display. maintenance. TROUBLESHOOTING •If product is malfunctioning, a fault code will display. Please reference the following codes below. FAULT CODE PROBLEM ACTION... -
Page 16: Specifications
The unit should be serviced by qualified technicians only. Your product is designed and manufactured to ensure a minimum of maintenance. Should your unite require service or parts, call Panasonic Call Center at 1-866-292-7299 (USA) or 1-800-669-5165 (Canada). Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102 www.panasonic.com...
