DESCRIPTION
Demo circuit DC1723A features the
(micromodule) step-down converter that can deliver up to
2A of output current. DC1723A is designed for a 5V, 2A
output from a 7.5V to 58V input at 400kHz. The wide input
range of the LTM8050 allows a variety of input sources
such as automotive batteries and industrial supplies. At
light loads, the LTM8050 enters Burst Mode
to maintain high efficiency and low output ripple over a
broad current range. The user adjustable features of the
LTM8050 such as output voltage, switching frequency,
soft-start, and power good can be changed on DC1723A
PERFORMANCE SUMMARY
PARAMETER
Minimum Input Voltage, V
IN
Maximum Input Voltage, V
IN
Output Voltage, V
OUT
Maximum Output Current
Switching Frequency
Efficiency

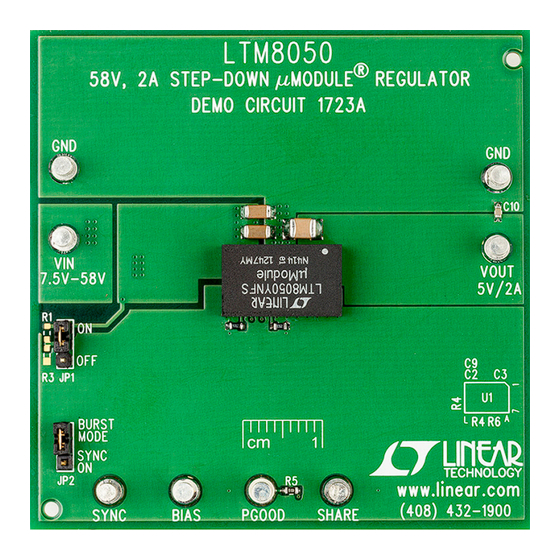

BOARD PHOTO
LTM
8050, a μModule
®
®
operation
®
Specifications are at T
CONDITIONS
V
= 5V
OUT
V
= 5V
OUT
R4 = 93.1k
R6 = 97.6k
V
= 12V, I
= 2A
IN
OUT

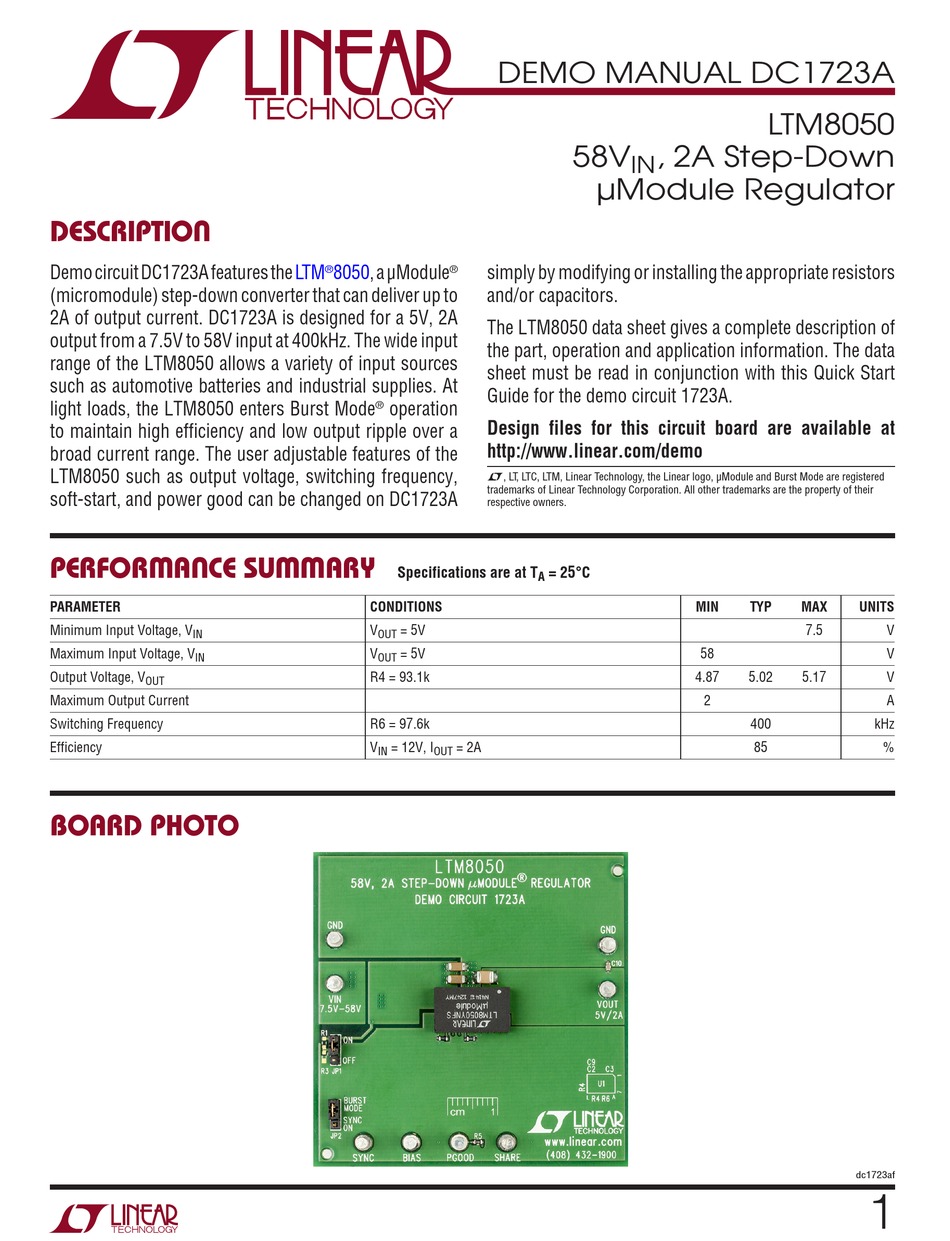

DEMO MANUAL DC1723A
58V
, 2A Step-Down
IN
µModule Regulator
simply by modifying or installing the appropriate resistors
and/or capacitors.
The LTM8050 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this Quick Start
Guide for the demo circuit 1723A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule and Burst Mode are registered
trademarks of Linear Technology Corporation. All other trademarks are the property of their
respective owners.
= 25°C
A
LTM8050
MIN
TYP
MAX
UNITS
7.5
58
4.87
5.02
5.17
2
400
kHz
85
dc1723af
1
V
V
V
A
%
