5A TO 10A LOAD STEP [4A/DIV]

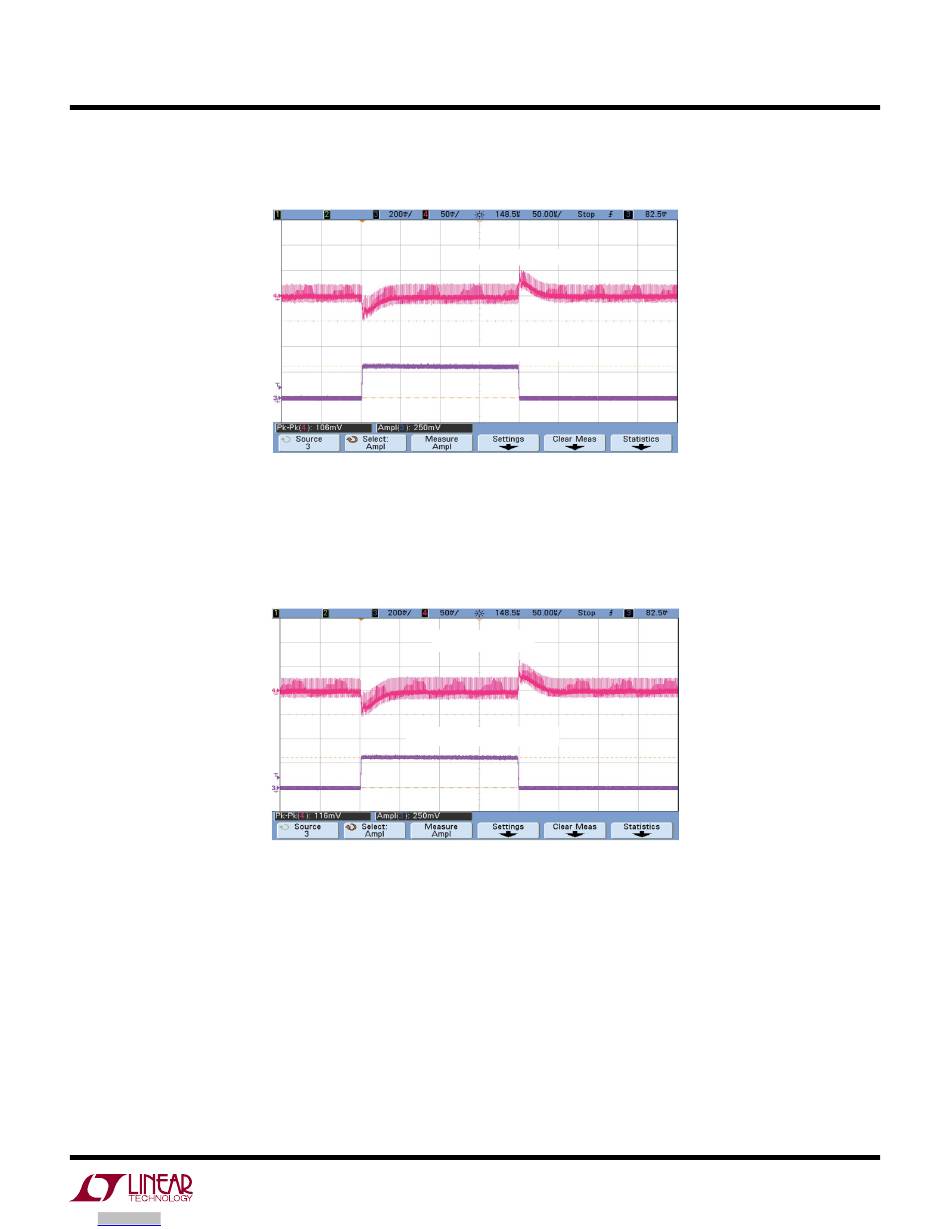

Figure 4. Measured Channel 1 5A to 10A Load Transient
(V
= 12V,V
= 1.2V)
IN
OUT1
1V OUTPUT [50mV/DIV]
5A TO 10A LOAD STEP [4A/DIV]
Figure 5. Measured Channel 2 5A to 10A Load Transient
(V
= 12V,V
= 1V)
IN
OUT2
DEMO MANUAL DC2147A
1.2V OUTPUT [50mV/DIV]
dc2147af
