Demonstration circuit 2043B is a lead-acid battery balancer
featuring the
LTC
3305. The LTC3305 balances up to four
®
lead-acid batteries connected in series and incorporates all
voltage monitoring, gate drive and fault detection circuitry.
The LTC3305 employs an auxiliary battery or an alternative
storage means to transfer charge to or from each individual
battery within the stack. There are two operating modes,
TIMER mode and CONTINUOUS mode, selected by the
MODE pin. In TIMER mode, once the balancing operation
is complete, the LTC3305 goes to a low power state for
a programmed time and then periodically rebalances the

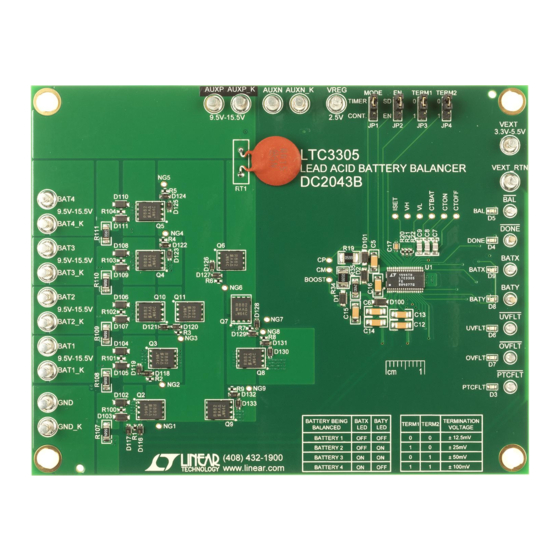

BoarD photo

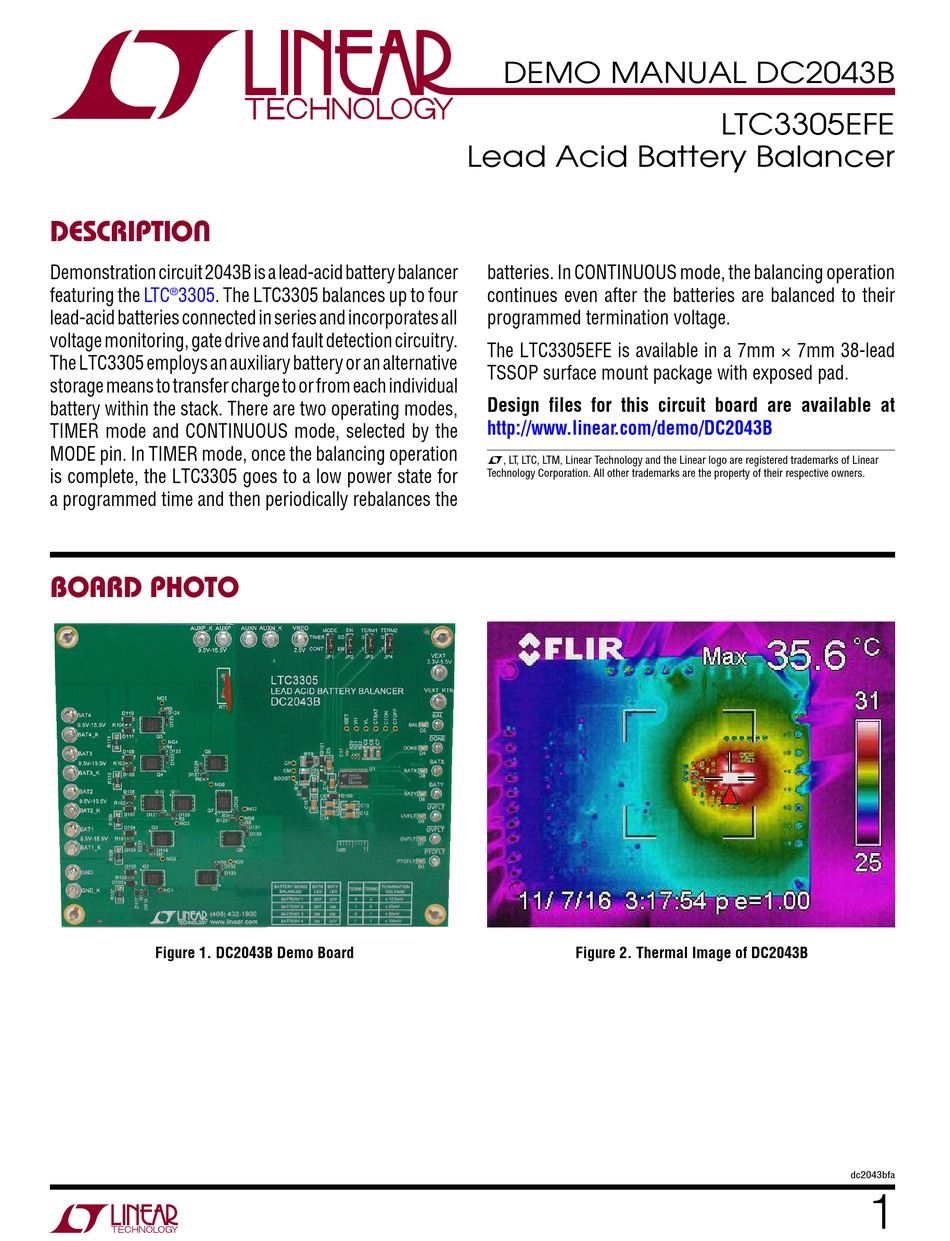

Figure 1. DC2043B Demo Board
DEMO MANUAL DC2043B
Lead Acid Battery Balancer
batteries. In CONTINUOUS mode, the balancing operation
continues even after the batteries are balanced to their
programmed termination voltage.
The LTC3305EFE is available in a 7mm × 7mm 38-lead
TSSOP surface mount package with exposed pad.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2043B
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Figure 2. Thermal Image of DC2043B
LTC3305EFE
dc2043bfa
1
