Installations and Operation:

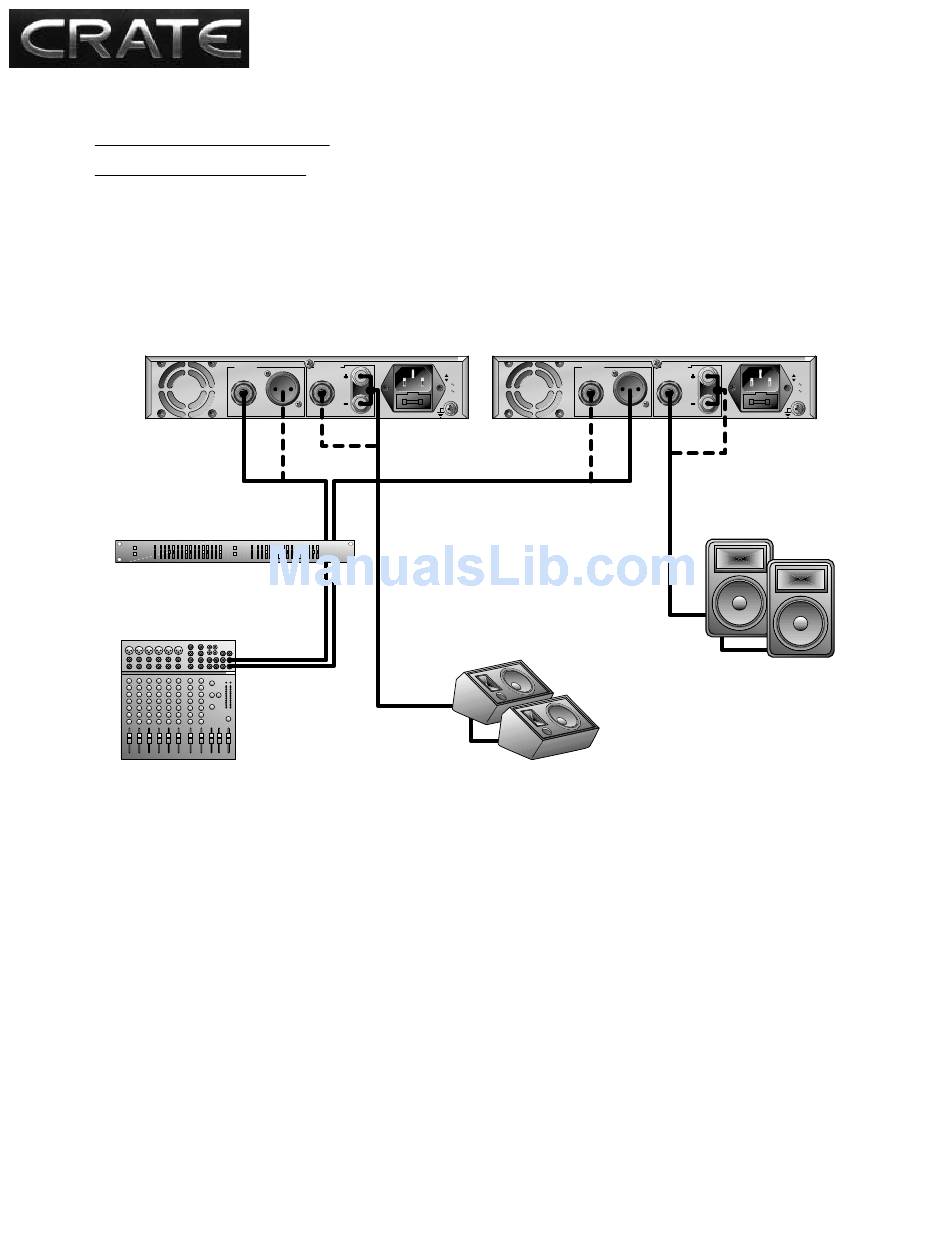

Stereo Operation (Two Amplifiers):
Connect one SPA100 between the output of your house speaker signal source and your house speaker(s). Connect another SPA100
between the output of your monitor signal source and your monitor speaker(s). The minimum impedance for the speaker(s) is 4 ohms
for each amplifier.
MONITOR AMP
LINE
INPUTS
GRAPHIC EQ
(LS2-215, LS2-231)
MIXING CONSOLE
(CSX12, CMX62, etc.)
MONITOR OUT
MONO/SUM OUT
1 / 2 - R a c k P o w e r A m p l i f i e r
SPEAKER
USE ONLY
250V FUSE
OUTPUTS
110-120
220-240
115V 60Hz
FUSE: T3AA, 250V
230V 50Hz
FUSE: T2A, 250V
4 OHMS MIN
CH.2 CH.1
OUT OUT
CH.2 CH.1
IN IN
8 OHM MONITOR SPEAKERS
(UFM12. UFM15, etc.)
SPEAKER AMP
LINE SPEAKER
INPUTS OUTPUTS
4 OHMS MIN
8 OHM SPEAKERS
(PE12, PE15, etc.)
STAGE
MONITORS
USE ONLY
250V FUSE
110-120
220-240
115V 60Hz
FUSE: T3AA, 250V
230V 50Hz
FUSE: T2A, 250V
HOUSE
SPEAKERS
9
