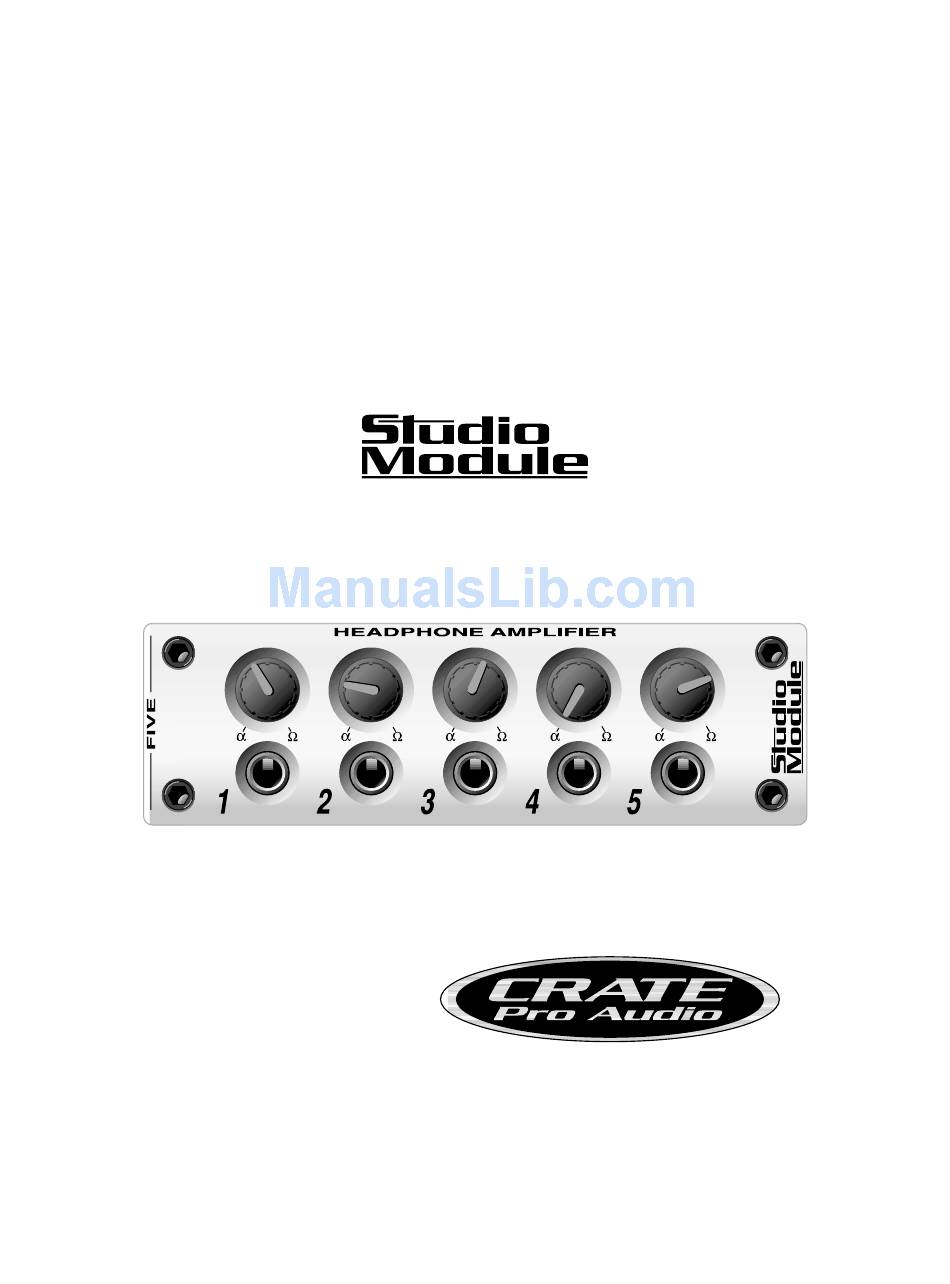

- Page 1 User’s Guide for the C R AT E P R O A U D I O SM5-HP Five Channel Headphone Amplifier...
-
Page 2: Table Of Contents
Introduction ......... .3 A Description of the SM5-HP ......3 The Front Panel . -
Page 3: Introduction
Manufactured in the United States, using only the finest componenets, the SM5-HP takes up only one-third of a sin- gle rack space! In order to achieve maximum performance from your SM5-HP and to better under- stand its applications, please read this user’s guide prior to its use. -
Page 4: The Front Panel
3. Power Supply Jack: Plug the small metal barrel connector of the AC power adapter here. 4. Cord Cinch: Use this clip to secure the cable of the power pack to the chassis of the SM5-HP. 5. Left (Stereo) Jack: This stereo (T/R/S) 1/4” jack feeds a stereo signal (such as from a Headphones Output jack) or the left channel of a stereo signal (such as from a tape deck line out) into the SM5-HP (see page 6). -
Page 5: Connecting The Ac Power Supply
(See the sticker on the power adapter for voltage requirements.) NOTE: Since the SM5-HP is “always on” when the power pack is plugged in to a live outlet, it is advised that you unplug the power pack (or turn off the AC source) when not using the unit for extended time periods. -
Page 6: Applications
Stereo Headphone Jack Connect the Headphones output jack of a mixing board (or other source) to the Left/Stereo jack of the SM5-HP using a shielded stereo (T/R/S) 1/4” signal cable. Applications: Connecting to the Stereo Outputs of a Recorder Connect the left and... -
Page 7: Connecting To A Mono Monitor Jack
Connect the Monitor output jack of a mix- ing board (or other source) to the Right/Mono jack of the SM5-HP using a shielded mono (T/S) 1/4” signal cable. The signal at the head- phones will be mono, with the same signal on both sides of the phones. -
Page 8: Technical Specifications
SM5-HP Technical Specifications: Power Output, 1–5 channels driven 32 ohms 570mW 50 ohms 400mW 100 ohms 200mW 200 ohms 100mW 300 ohms 67mW 600 ohms 34mW Maximum Gain 12dB Frequency Response 8Hz – 50kHz THD + Noise .09% @ 200 ohms (100mW)
