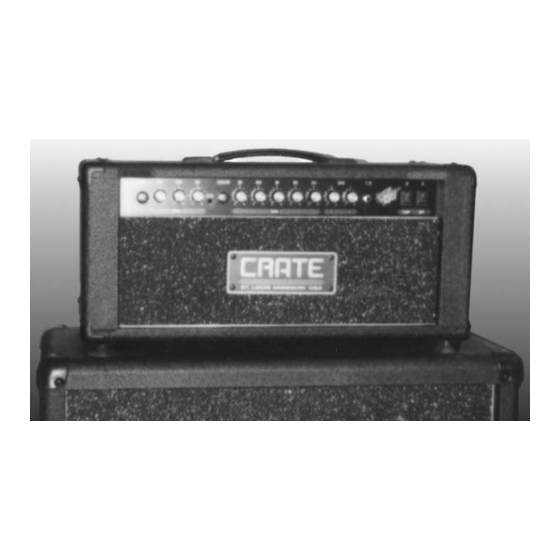

- Page 1 VC-50H Vintage Club Amplifier Owner’s Manual...
- Page 2 You are now the proud owner of one of the newest and most versatile tube amplifiers available for the guitar, the VC-50H. This remarkable amplifier offers tremendous flexibili- ty and portability with two separate channels and silent switching for a uniquely rich palette of tonal variety and simplicity of control over your sound.
-
Page 3: Table Of Contents
VC-50H Vintage Club Amplifier TABLE OF CONTENTS: Features ........3 The Front Panel Controls and Their Use . -
Page 4: The Front Panel Controls And Their Use
VC-50H Vintage Club Amplifier Input Volume Treble Bass Ch. Sel. Channel A The Front Panel Controls and Their Use: 1. INPUT: This jack accepts a high impedance signal from a guitar, bass, keyboard, etc. 2. CHANNEL A VOLUME: This control sets the level of Channel A. -
Page 5: The Rear Panel
EXTENSION jack if using more than one cabinet. Connecting to the Effects Loop Jack: external effects into the VC-50H just prior to its power amp stage. When using Crate’s STP201, STP202 or STP203 stereo-to-mono Y-cord, connect its 1/4” stereo plug into the amp’s Insert jack, its “send”... -
Page 6: Some Suggested Settings
VC-50H Vintage Club Amplifier Some Suggested Settings: SPARKLING CLEAN Input Volume Treble Bass Channel A WARM & CLEAN Input Volume Treble Bass Channel A BLUESY DIRT Input Volume Treble Bass Channel A Input Volume Treble Bass Channel A CRUNCH RHYTHM... -
Page 7: System Block Diagram
VC-50H Vintage Club Amplifier System Block Diagram: CHANNEL A: FIRST GAIN INPUT CHANNEL B: SECOND GAIN FOOTSWITCH INSERT CHANNEL A TONES & VOLUME VOL. TREB. BASS TONE PRE- EMPHASIS GAIN THIRD FOURTH GAIN & FIFTH GAIN STAGE REVERB PHASE POWER... -
Page 8: Technical Specifications
VC-50H Vintage Club Amplifier TECHNICAL SPECIFICATIONS: Output Power Rating Input Impedance Maximum Signal Accepted Signal To Noise Ratio Gain Tone Control Range Line Out Level Tube Types Power Requirements Size and Weight To keep this amplifier looking its best, avoid abrasive cleaners. Wipe the cabinet clean using a slightly dampened cloth.
