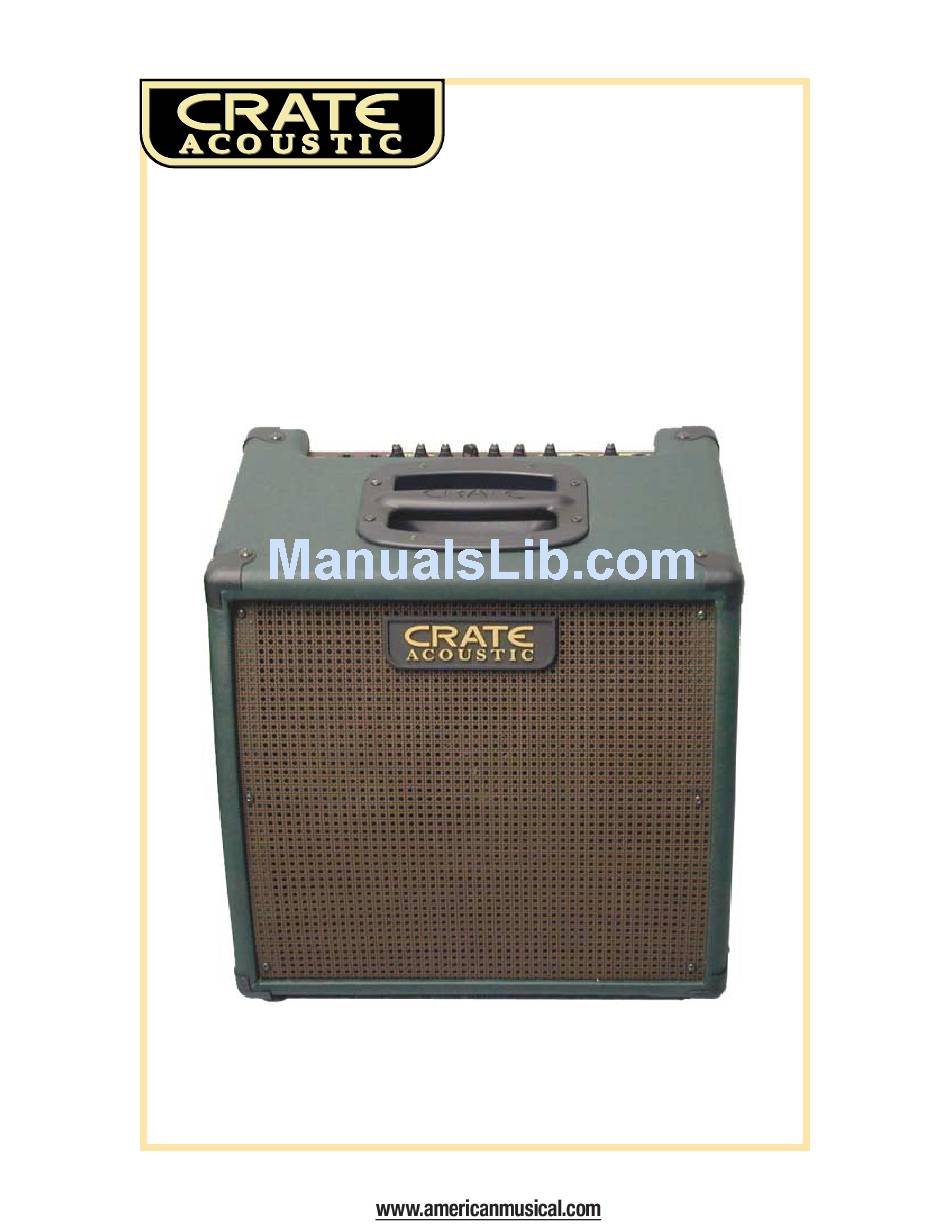

- Page 1 CA30D Acoustic Amplifier User’s Guide...
-
Page 2: Table Of Contents
CA30D Acoustic Amplifier Table of Contents: Introduction..........3 The Front Panel. -
Page 3: Introduction
Line Out jack. An 8” Polypropylene cone coaxial speaker delivers smooth clear sound with excellent projection and fidelity. Your CA30D is Musician Made in the U.S.A., using only the best com- ponents. Extensive testing at the hands (and ears) of skilled technicians and musicians insures you that this amplifier is the absolute best it can be. -
Page 4: The Front Panel
CA30D Acoustic Amplifier The Front Panel: 1: Power. Use this switch to apply power to 8: Mid. This serves as the midrange control the amplifier: the amp is on when the top for both channels. Adjust this control to of the switch is depressed, off when the get the best projection and midrange bottom of the switch is depressed. -
Page 5: Connecting To The Insert Jack
External Effect “Chaining” Amplifiers: The Line Out jack (#2) on one CA30D can be connected to the Insert jack of another, to chain the amps together as shown below. (This frees up the Input jacks of the second amplifier.) Use a shielded cable terminated with 1/4” tip/sleeve connectors as shown. -
Page 6: The Dsp Section
CA30D Acoustic Amplifier The DSP Section: The CA30D features Crate’s DSP Digital Signal Processing. Use the Effects Mode control (#5) to select which type of effect will be applied to the amp’s output signal. Use the Effects Level control (#4) to adjust the level of the effect. -
Page 7: System Block Diagram
CA30D Acoustic Amplifier System Block Diagram: CH. 1 INPUT MODE GAIN EFFECTS LEVEL CH. 2 INPUT MID CONTOUR HIGH GAIN TWEETER POWER WOOFER INSERT LINE Declaration Of Conformity #33, Effective 01-01-2001 Manufacturer’s Name: SLM Electronics Production Facility: 1901 Congressional Drive, St. Louis, MO 63146, USA... -
Page 8: Technical Specifications
230VAC, 50/60Hz, 50VA Size and Weight: 13”H x 15”W x 12”D, 30 lbs. Crate continually develops new products, as well as improves existing ones. For this reason, the specifications and information in this manual are subject to change without notice. www.crateamps.com ©2004 SLM Electronics...
