Installations and Operation:

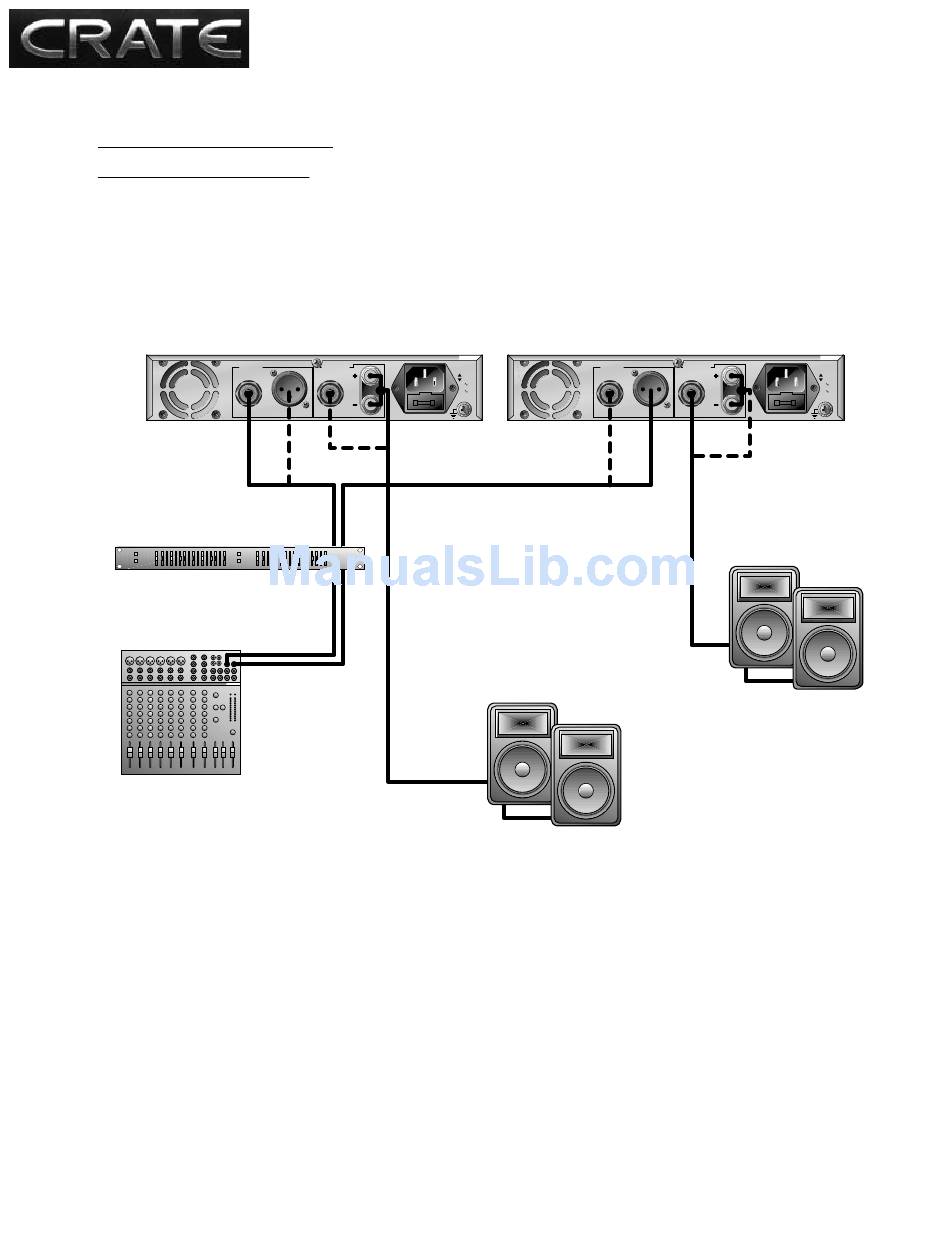

Stereo Operation (Two Amplifiers):

Connect one SPA100 between the left channel output of your stereo signal source and your left channel speaker(s). Connect anoth-
er SPA100 between the right channel output of your stereo signal source and your right channel speaker(s). The minimum impedance
for the speaker(s) is 4 ohms for each amplifier.
MIXING CONSOLE
(CSX12, CMX62, etc.)
8
SPA100
LEFT SIDE AMP
LINE SPEAKER
INPUTS OUTPUTS
4 OHMS MIN
GRAPHIC EQ
CH.2 CH.1
(LS2-215, LS2-231)
OUT OUT
CH.2 CH.1
IN IN
LEFT OUT
RIGHT OUT
1 / 2 - R a c k P o w e r A m p l i f i e r
USE ONLY
250V FUSE
110-120
220-240
115V 60Hz
FUSE: T3AA, 250V
230V 50Hz
FUSE: T2A, 250V
8 OHM SPEAKERS
(PE12, PE15, etc.)
RIGHT SIDE AMP
LINE SPEAKER
INPUTS OUTPUTS
4 OHMS MIN
8 OHM SPEAKERS
(PE12, PE15, etc.)
LEFT
SIDE
USE ONLY
250V FUSE
110-120
220-240
115V 60Hz
FUSE: T3AA, 250V
230V 50Hz
FUSE: T2A, 250V
RIGHT
SIDE
