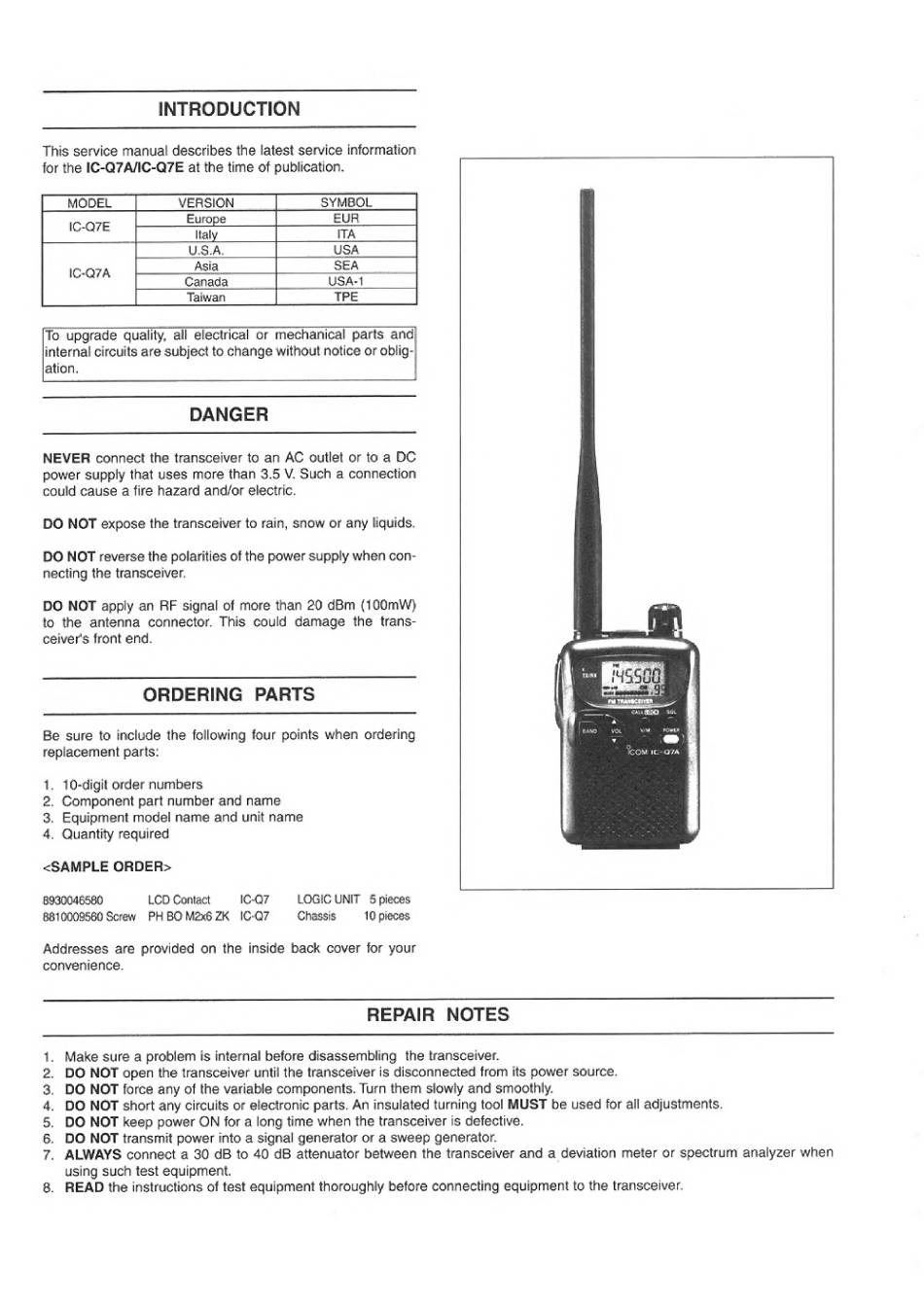

Icom IC-Q7A Service Manual page 2

INTRODUCTION
MODEL VER SION SYMBOL
| eee =
ლოძის
To upgrade quality, all electrical or mechanical parts and
internal circuits are subject to change without notice or oblig-
ation.
DANGER
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 3.5 V. Such a connection
could cause a fire hazard and/or electric.
ORDERING PARTS
1. 10-digit order numbers
2. Component part number and name
SAMPLE ORDER:
8930046580 LCD Contact IC-Q7 LOGIC UNIT 5 pieces
8810009560 Screw PH BO М2х6 ZK .1C-Q7 Chassis 10 pieces.
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
Make sure a problem is internal before disassembling the transceiver.
DO NOT open the transceiver until the transceiver is disconnected from its power source.
DO NOT force any of the variable components. Turn them slowly and smoothly.
DO NOT keep power ON for a long time when the transceiver is defective.
DO NOT transmit power into a signal generator or a sweep generator.
READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.
