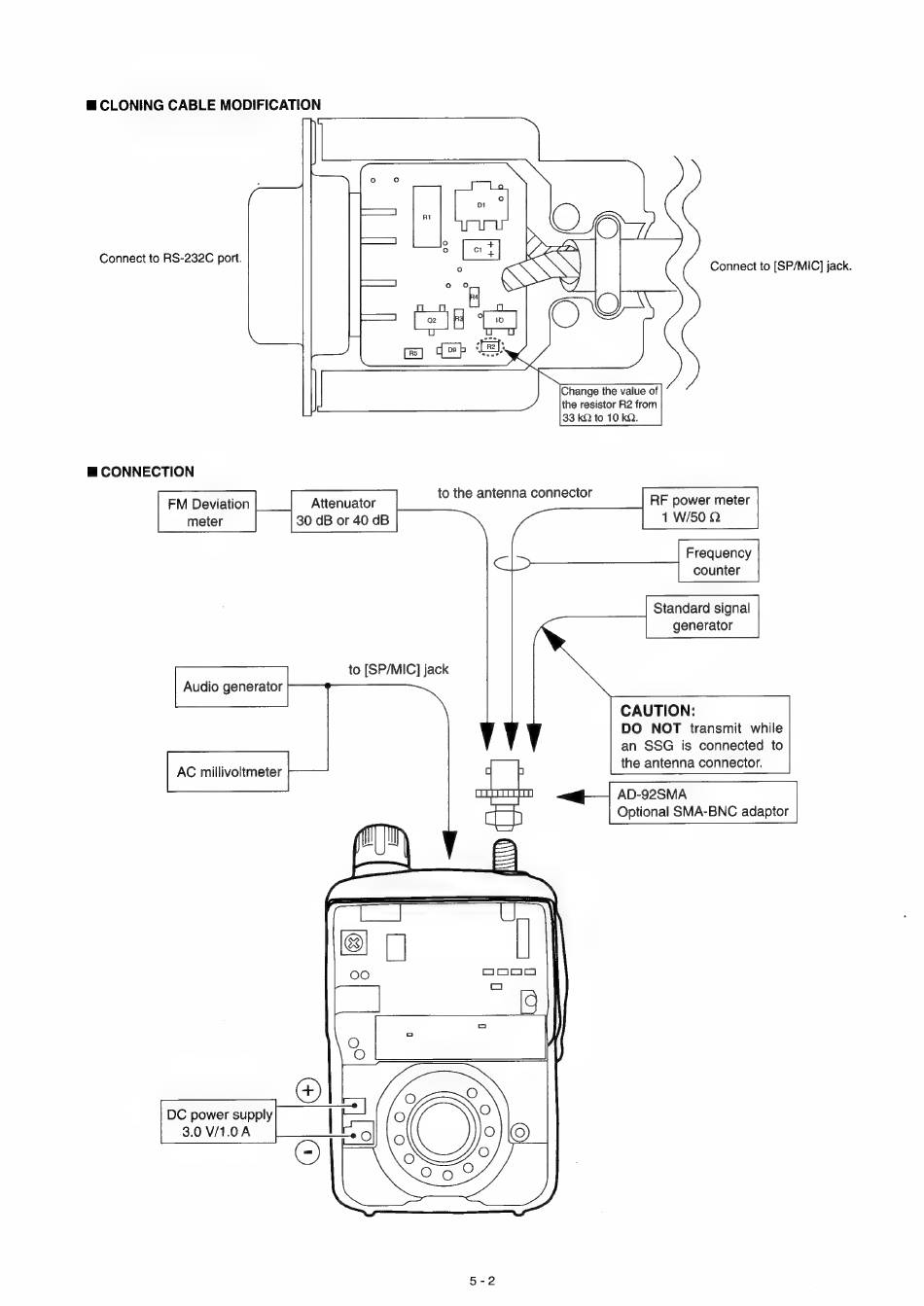

Ш CLONING CABLE MODIFICATION
–
Change the value of
the resistor R2 from
33 КО to 10 КО.
Ш CONNECTION
to the antenna connector
RF power meter
1 W/50 0
Attenuator
30 dB or 40 dB
FM Deviation
meter
Frequency
counter
Standard signal
generator
to [SP/MIC] jack
Audio generator
CAUTION:
DO
NOT
transmit
while
an SSG
is connected
to
the antenna connector.
AD-92SMA
Optional SMA-BNC adaptor
DC power supply
3.0 V/1.0A
