udir/c U46S Quick Start Manual

U46S
QUICK START GUIDE
Induction drone only indoor flight
Note
▲ This product is suitable for users over 14 years old.
▲ Stay away from the rotating propeller
▲ Read the "important statement and safety
guidelines" carefully.
https://udirc.com/disclaimer-and-safety-instructions
Li-Po Battery Disposal & Recycling
Wasted Lithium-Polymer batteries must not be placed with household
trash. Please contact local environmentalor waste agency or the
supplier of your model or your nearest Li-Po battery recycling center.
Our company's products are improving all the time, design and specifications
are subject to change without notice. All the information in this manual has
Important
Notice been carefully checked to ensure accuracy, if any printing errors, our company
reserve the final interpretation right.
③
Plug the battery plug into the
body socket and close the
battery cover.
Transmitter preparation
No function
Left stick
Trimmer
(Press down)
Take Off/Landing
Power-LED
Emergency Stop
Control stick operation
Left stick Right stick
Go up
Go down
Counterclockwise
turn
Clockwise turn
- 4 -
Ready before flight
TOP
Motor base
A Propeller
Cover
B Propeller
Download the complete
operating guide
Front(Head)
Headlight
Battery Cover
Back
Heading Hold
Mode
Speedswitch
Right Stick
Flight Operations
Power Switch
OFF ON
Turn me on in a room with lots of space(Suggest ≥16m²)
Turn on the power of the drone, the navigation lights changes
from flash quickly to flash slowly. It indicating to enter frequency
state.
Forward
Backward
Fly to the left
Fly to the right

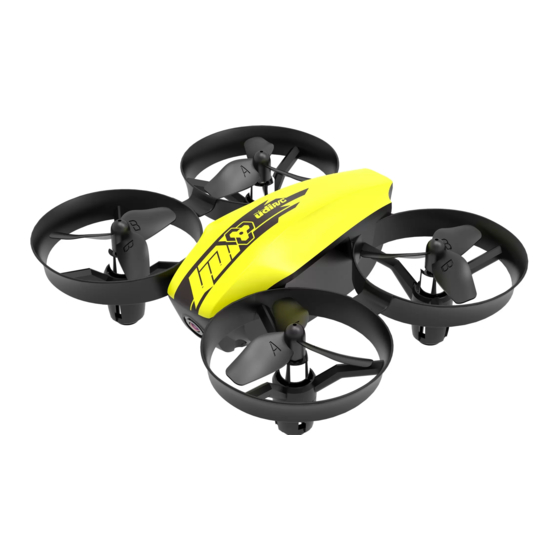

Drone Overview
Front(Head)
B Propeller
A Propeller
Rear(Tail)
Navigation lights
Power Switch
ON
Battery Cover
Rear(Tail)
- 2 -
Battery Installation
Open the transmitter battery cover. Install
batteries. Follow the direction of batteries
designated in the inside of the battery box.
3×1.5V AAA Alkaline Batteries
Note Direction.
Drone preparation
①
ON
Horizontally
- 5 -
Drone Battery Charger
Connect drone battery with included USB charger cable, and then
connect to other USB output port (Output: 5V
charger indicator light will red when charging and the light turns
green when fully charged.
①
Drone battery
Warning: Must be supervised while charging
Please use the included USB charging cable and make sure it
is properly connected.
Drone Battery Installation
Install the batteries in order, and remove them in reverse.
①
OFF
Open the battery cover
②
Turn on the power on the transmitter,
the Power-LED will flash quickly.
OFF ON
Pull the left stick to the lowest position
and let go, the Power-LED changes from
③
flash to keep long bright. The navigations
will keep long bright. It indicating
frequency pairing successful.
Take off
Press the " " button, the drone will
automatically rises and flies at an altitude
of about 1.2 meters.
Landing
During the flight, press the "
button, the drone will land slowly
until landing.
Don't operate the left stick during
landing, otherwise the current
OFF
command will automatically fail.
Emergency Stop: During the flight, press "
about 2 seconds, the transmitter will sound "di.di..." and the
drone crashes directly.
Tip: Do not use the emergency stop function unless in emergency situation.
2A). The USB
Power adapter (not included)
②
②
Put the battery in it
- 3 -
"
" button for
