Central Machinery 58360 Owner's Manual & Safety Instructions

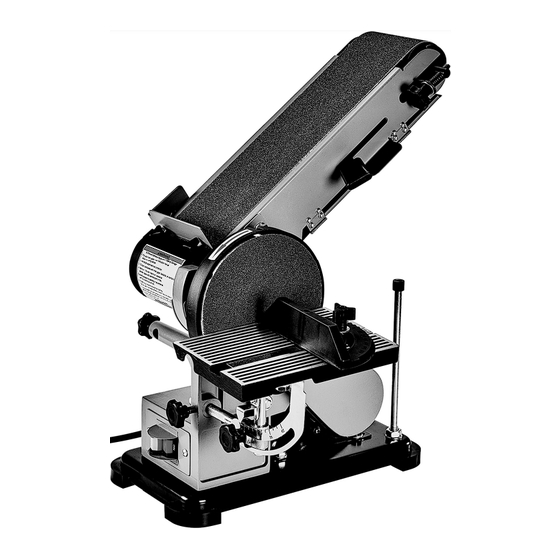

4" x 36" belt and disc sander
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22h

Advertisement

loading

Related Manuals for Central Machinery 58360

Summary of Contents for Central Machinery 58360

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    4. DON’T USE IN DANGEROUS ENVIRONMENT. to do a job for which it was not designed. Don’t use power tools in damp or wet locations, or expose them to rain. Keep work area well lighted. Page 2 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 3 It’s safer than using your hand and it frees both hands to operate tool. 21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don’t leave tool until it comes to a complete stop. Item 58360 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 Switch when the tool is not in use. pulled into the machine. For safety, it must be adjusted very close to the sanding surface. Page 4 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 5 If you feel any medical or physical symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible. SaVe tHeSe inStructiOnS. Item 58360 For technical questions, please call 1-888-866-5797. Page 5...

  • Page 6: Specifications

    M3x  6 Screws and Flat Washers (8). Refer to Figure B. Disc cover Screw and Flat Washer Foot pad (62) Figure a: attaching Feet Figure B: installing Disc cover Page 6 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 7 Disc Cover (9). Refer to Figure D. Disc cover Fence (33) Belt end Guard (26) Finger Screw (92) Figure F: Mounting Fence Screw Figure D: remove Screws from Disc cover Item 58360 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 Insert the Safety Key into the Switch. This Key is a safety precaution and should remain in the Switch during use and be removed after Switch is turned off and/or any time the Belt/Disc Sander is left unattended or in storage. Page 8 For technical questions, please call 1-888-866-5797. Item 58360...

  • Page 9: Operation

    Knob (65) Bolt (70) Flat Washer (23) pivot Bar Holder (68) indicator (75) Figure H: Securing table Bar and pivot indicator Supporting Shaft Flat Side (69) Figure J: attaching Support Shaft Item 58360 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 Bolts securely to prevent the Belt Support Housing from slipping. See Figure K. Hex Bolt table Figure L: Set up for Belt Sander Disc cover (9) Outer pulley cover (10) Figure K: Hex Bolt Locations Page 10 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 11 Sanding Disc (as you face it) to sand. The Sanding Disc turns counterclockwise and using the right side could cause kickback. Item 58360 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Maintenance

    7. Push the Belt Tension Handle (46) to the rear to tighten the belt. 8. Before using, manually check the new belt for alignment. See instructions in the “General Operating” section of this manual. Page 12 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 13 LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 58360 For technical questions, please call 1-888-866-5797. Page 13...

  • Page 14: Parts List And Diagram

    Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175438126 when ordering parts. Page 14 For technical questions, please call 1-888-866-5797. Item 58360...
  • Page 15 Diagram Item 58360 For technical questions, please call 1-888-866-5797. Page 15...

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
