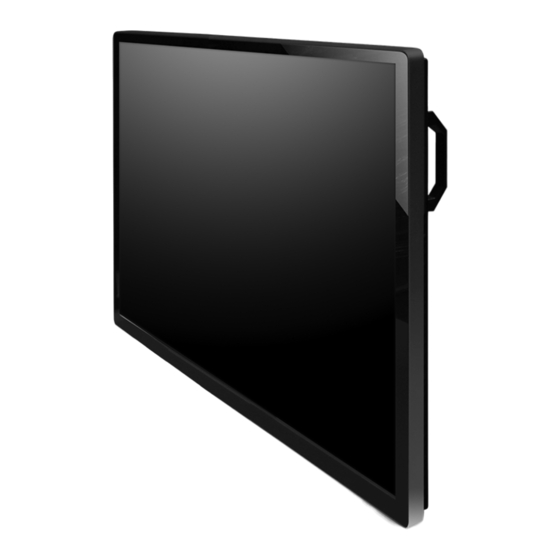

- Page 1 I43ZI-OC-45P0 User Manual Please retain this manual for future reference...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction........................3 Chapter 2 Each part of the navigation..................4 2.1 Front view........................4 2.2 Back view........................4 2.3 Right view........................4 2.4 Left view........................4 2.5 Connect machine......................4 Chapter 3 Getting Started........................7 3.1 Connect the AC adapter..................7 3.2 Power on........................7 3.3 Install operating system...................7 Chapter 4 Touchscreen instructions.....................9... -
Page 4: Chapter 1 Introduction
Chapter 1 Introduction Thank you for choosing GVision I43ZI large format 4K monitor. Please read this manual before operating monitor and refer to professional technician for any technical issue. Disclaimer This product has been tested in accordance with the provisions of FCC Rules Part 15 and complied with Class B digital device regulations. -
Page 5: Chapter 2 Each Part Of The Navigation
Chapter 2. Each Part of the Navigation 2.1 Front View 2.2 Back View 2.3 Right View 2.4 Left View Note: The interface has different configurations due to the difference of OPS configuration. 2.5 Connect Machine When connecting the machine, please note the following information: •... - Page 6 2.5.1 Power Connection Connect the adapter to the Corresponding interface on back of the unit Connect the adapter to power socket Power Cord To Power Outlet (AC 120V, 60Hz) 2.5.2 Keyboard and Mouse Connection (USB Port) The keyboard and mouse are connected to the USB port 2.5.3 Display Adjustable Angle When configuring the bracket, you can tilt the angle to suit your preference.
- Page 7 2.5.4 Audio Device Connection (Connect Audio and Mic if your OPS support inputs) 1. Microphone • The interface for microphone. 2. Headphone • The interface of headphone connector is in the side of monitor. 2.5.4 Connect to Any Other Existing Equipment HDMI Port This interface is for HDMI connection VGA Port...
- Page 8 2.5.5 Use as “Open Pluggable Specification” (Connect the Power Cord) 2.5.6 Use as “Touch Monitor” (Connect the USB Type-B and HDMI In for Media Source)
-
Page 9: Chapter 3 Getting Started
Chapter 3. Getting Started 3.1 Connect the power cord The power adapter is an international universal power adapter, power supply input voltage ranges from 100V ` 240V. The following is the correct installation steps: • Connect the power cord to the Inlet •... - Page 10 3.2.3.2 Follow the prompts to install the operating system 3.2.3.3 Driver Installation The driver should be properly installed on use.
- Page 11 Detailed installation steps are as follows: • Open the Driver File • Gradually install all drivers (such as chipset, VGA, Sound, Lan). • Click “Install” 3.3 Touch Monitor instructions 3.3.1 According to 2.5.6 Connection mode 3.3.2 Chose the HDMI Channel Press the key to select the HDMI channel...
-
Page 12: Chapter 4 Touchscreen Instructions
Chapter 4. Touchscreen Instructions 4.1 Support Free Driver 4.2 Touchscreen Gestures The touchscreen can support single-point or multi-point touch (depending on the model), it can support click, double click, right click, rotate, zoom in and out. 4.3 Cautions of using the touchscreen It is important not to use anything sharp or hard material on the screen which can cause damage Keep both touch screen surface and user’s fingers are clean and dry before use touch... -
Page 13: Chapter 5 Troubleshooting
Chapter 5. Troubleshooting Failure Possible Reasons • Check whether all cables are connected Power cannot be turned on properly and the power socket is marked turned on • You can use other equipment to check whether the power socket is working No images or sound •... - Page 14 Mechanical Diagram...
