R

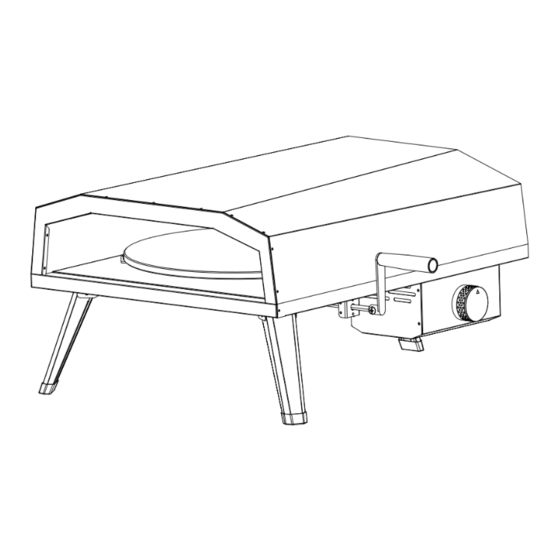

Tabletop 16" Gas Pizza Oven
Model# GB-GO16A-R
SKU# SRPG22008
Keep this manual for future reference
Warning:
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR
OPERATE THIS PRODUCT.
Adult assembly required.
Keep screws and parts out of reach of children.
Questions, problems, missing parts? Please call our customer service
department at 1-888-909-3888, 7:30AM - 4:30PM PST, Mon. - Fri. or
email to customerservice@shinerich.us
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BIGHORN GB-GO16A-R
Summary of Contents for BIGHORN GB-GO16A-R
- Page 1 Tabletop 16" Gas Pizza Oven Model# GB-GO16A-R SKU# SRPG22008 Keep this manual for future reference Warning: READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR OPERATE THIS PRODUCT. Adult assembly required. Keep screws and parts out of reach of children. Questions, problems, missing parts? Please call our customer service department at 1-888-909-3888, 7:30AM - 4:30PM PST, Mon.
- Page 2 WARNINGS WARNING To reduce the risk of fire, burn hazard or other injury, read this safety manual carefully and completely before using this appliance. WARNING Before cleaning, make sure the gas supply and control knob are in the OFF position and that the burner and oven has cooled.
- Page 3 WARNINGS WARNING Do not store this appliance indoors unless the gas cylinder is disconnected. WARNING Do not store gas cylinder in a building, garage or any other enclosed area and keep out of reach of children at all times. WARNING This appliance is not intended to be installed in or on recreational vehicles and/or boats.
- Page 4 WARNINGS WARNING This appliance is not intended to be installed in or on a boat. This appliance is not intended to be installed in or on a recreational vehicle. WARNING Keep the fuel supply hose away from any heated surface(s). WARNING This manual includes an instruction to clean and inspect the hose before each use of the appliance.
-
Page 5: Before Lighting
WARNINGS BEFORE LIGHTING Inspect the gas supply hose prior to turning on the gas. If there is evidence of cut, wear or abrasion, it must be replaced prior to use. Screw the regulator onto the gas cylinder. Leak check the hose and regulator connections with a soap and water solution before lighting the appliance. - Page 6 WARNINGS The appliance is not intended for commercial use. 1. In the event of an oil or grease fire do not attempt to extinguish with water, immediately call the fire department. A Type BC or ABC fire extinguisher may in some circumstances contain the fire. 2.
-
Page 7: Exploded View
EXPLODED VIEW PARTS LIST E. Match Stick A. Grill body C. Crank handle B. Pizza stone AA. Bolt M5x15 F. Cover D. Shovel H. Brush I. Oven mitts J.Knife G. Cutter... - Page 8 ASSEMBLY INSTRUCTIONS Before assembly, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the appliance. Contact customer service for replacement parts. Tips: About instructions, most of the parts have been pre-installed before packing. Step 1 Unfold legs as illustrated.
-
Page 9: Operation
ASSEMBLY INSTRUCTIONS Step 3 Place pizza stone (B) onto the bracket inside the oven cavity as illustrated. OPERATION WARNING • Use 20Lb LP (Propane) gas cylinder only. • LP (Propane) gas cylinder sold separated. • LP gas cylinder must be upright for vapor withdrawal. Always keep LP gas cylinder in upright position during use, transit or storage. - Page 10 CONNECTING THE LIQUID PROPANE GAS CYLINDER 1. Make sure Propane gas cylinder valve is closed and control knob is in the “OFF” position. 2. Remove the protective cap from the propane gas cylinder valve. 3. Before connecting, be sure there is no debris caught in the head of the propane gas cylinder valve, head of the regulator or in the head of the burner and burner ports.
-
Page 11: Leak Testing
LEAK TESTING GENERAL Although the gas connections of the appliance are leak tested prior packing and shipment, a complete test must be performed at the installation site. Before each use, check all the gas connections for leak testing using the procedure listed below. If the smell of gas is detected at any time, you should immediately stop using and check the entire system for leaks. -
Page 12: Lighting Instruction
LIGHTING INSTRUCTION TO LIGHT THE BURNER 1. Turn the control knob to “OFF” position. 2. Turn on the propane gas cylinder valve. 3. Push and turn control knob counterclockwise Of f to “ ” to light the burner. If needed, repeat 2~3 times. -
Page 13: Care And Maintenance
OPERATION Cooking 1. Baking Pizza 1. Smear some olive oil or cooking oil on the surface of pizza shovel to avoid sticking. 2. Put the pizza on pizza shovel and make your pizza with desired add-ons. 3. Put the pizza on the pizza stone with pizza shovel, then bake about 15 seconds. 4. - Page 14 CARE AND MAINTENANCE CLEANING BURNER BURNER & VENTURI TUBE KEEP VENTURI TUBE CLEAN. INSECT WARNING!! Your pizza oven might still light but... Spiders and insects can nest in the burner of this and any other pizza oven, and cause the gas to flow improperly.
-
Page 15: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Prevention/Solution Burner will not light 1. No gas flow 1. Check to see if propane tank is empty 2. Coupling nut and 2. Turn the coupling nut about one- half to three regulator not fully quarters additional turn until solid stop. connected Tighten by hand only - do not use tools 3. -
Page 16: Warranty Information
WARRANTY INFORMATION The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
