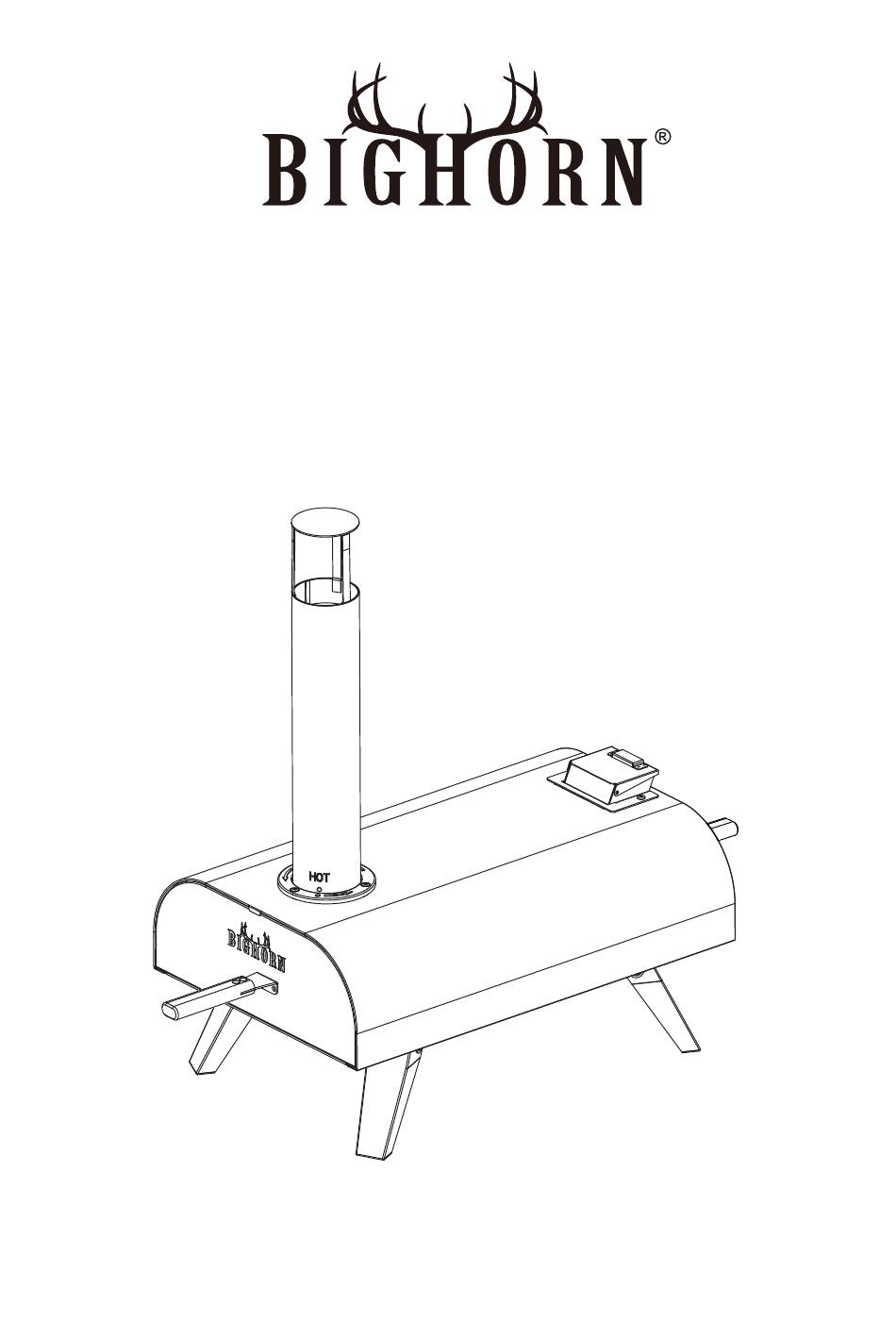

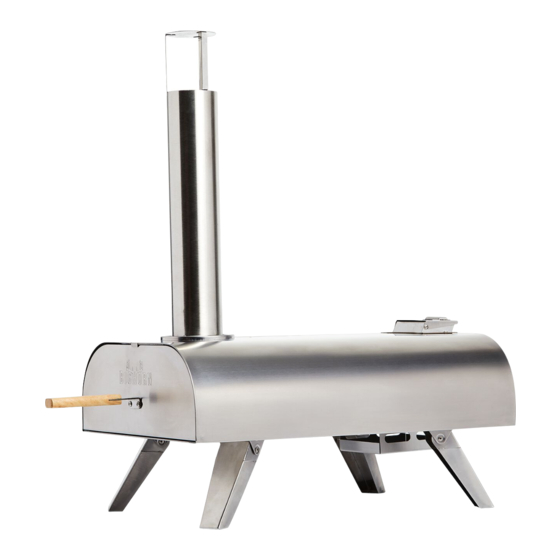

  • Page 1 Pellet Pizza Oven User’s Instruction Manual PLU# 133015...
  • Page 2: Table Of Contents

    Table of contents Before you start..................... Use........................Product maintenance................... Exploded View........................Assembly Instructions....................7-11 Use Instruction....................12-14...
  • Page 3: Before You Start

    Before you start Important - Food cooking information ALWAYS ALWAYS DO NOT CAUTION - CAUTION - pizza oven Safety warning DO NOT use the pizza oven indoors, as toxic fumes can accumulate and may cause asphyxiation. WARNING – WARNING - The pizza oven is not intended to, and should never be used as a heater.
  • Page 4: Use

    Protection Things to check before you start 1. Please dispose all plastic bags carefully and keep it away from children. 2. Check the part and make sure you have all of the parts listed. If not, contact our customer service department who will be able to help you.
  • Page 5: Product Maintenance

    Product maintenance The golden rules for care 1. Good and regular care can extend the life and maintain the condition of your pizza oven. IMPORTANT - Please note that it is normal, when in use, that the coated metal surfaces on the pizza oven may discolour due to the heat generated by the burning pellet.
  • Page 6: Exploded View

    Parts Parts List PART QUANTITY QUANTITY Ash Tray Pizza Oven Body Assembly Chimney Pipe Poker Hopper Shovel Pizza Stone Hopper Assembly Door Pellet Grid Door Handle Fire Box Assembly Handle Chimney Lid Fire Box Assembly Screw(M4 x10) Estimated Assembly Time: 5 minutes Tools required for assembly (not included): Phillips screwdriver...
  • Page 7: Assembly Instructions

    Assembly Instructions Step 1 With assistance, place the pizza oven body assembly (A) upside down on a soft, level surface. Then unfold four legs (pre-assembled) as illustrated. Step 2 Install the ash tray (H) to the pizza oven body assembly (A) as illustrated.
  • Page 8 Assembly Instructions Step 3 Flip over the pizza oven body assembly (A) as illustrated. Step 4 Install the hopper assembly (D) to the pizza oven body assembly (A) with two M4×10 screws (N) as illustrated.
  • Page 9 Assembly Instructions Step 5 Put the pizza stone (J) into the pellet pizza oven assembly (A) as illustrated. Step 6 Attach the door handle (L) to the door (K) with 2 pcs M4 x10 screws (N) as illustrated. Tighten screws with screwdriver.
  • Page 10 Assembly Instructions Step 7 Place the chimney pipe (B) onto the pizza oven body assembly (A) and turn counterclockwise by hand into position as illustrated. Put the chimney lid (M) onto the chimney pipe (B). Step 8 Place the pellet grid (F) to the fire box assembly (G) first, then put into the pizza oven body assembly (A) as illustrated.
  • Page 11 Assembly Instructions Step 9 The fire box assembly handle (F) is ready to operate the fire box assembly (G), ash tray (H) and lid of hopper assembly (D). Do not leave the fire box assembly handle (F) on above locations during burning as it may get hot.
  • Page 12 Use Instruction Lighting 1. Remove the hopper shovel (C, if applicable ) from the top of the chimney pine (B) and make sure the chimney lid (M) is on top of the chimney pine (B). 2. Put the door onto position and make sure only take it off when adding or operating with food. 3.
  • Page 13: Use Instruction

    Use Instruction Cooking 1.Baking pizza Helpful advice: * When the pellet fuel in the pizza oven is burning, the door must be closed unless food needs to be put in or taken out. This is to prevent too much air coming in from the oven door, which may cause heavy smoke inside the fire box assembly(E&G) and hopper assembly(D).
  • Page 14 Use Instruction 2. Cooking Steak Helpful advice: *When the pellet fuel in the pizza oven is burning, the door must be closed unless food needs to be put in or take out. This is to prevent too much air coming in from the oven door, which may cause heavy smoke inside the fire box assembly(E&G) and hopper assembly(D).
