HAMPTON BAY DANETREE N243B-BN Use And Care Manual

HAMPTON BAY DANETREE N243B-BN Use And Care Manual

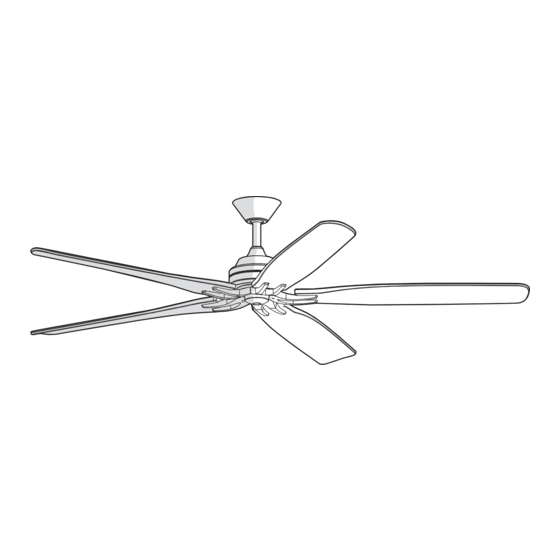

72 in. indoor/covered outdoor ceiling fan

Advertisement

Quick Links

USE AND CARE GUIDE
INDOOR/COVERED OUTDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Hampton Bay!
72 IN. DANETREE
call Hampton Bay Customer Service
1-855-HD-HAMPTON
HAMPTONBAY.COM
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
Item #1008 698 231
1008 697 659
Model #N243B-BN
N243B-NI

Advertisement

loading
Need help?

Need help?

Do you have a question about the DANETREE N243B-BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY DANETREE N243B-BN

  • Page 1 THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ........Assembly .
  • Page 3: Warranty

    Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut Blade attachment screw and bber washer 1.5V AAA battery 3-pin extension cord...
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Fan motor assembly Canopy Blade Canopy bottom cover (preassembled) Blade arm assembly Hanger ball/downrod assembly Receiver Coupling cover Remote control HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 6: Installation

    Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of re, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°...
  • Page 7: Assembly

    Assembly Preparing the canopy Preparing the motor Remove the canopy bottom cover (C) from the canopy (B) by Remove the cotter pin (FF) and clevis pin (GG), and loosen turning the canopy bottom cover (C) counterclockwise. the two collar set screws (HH) from the motor collar. Take out the set screw (II) located in the hanger ball (JJ), Remove the mounting bracket (A) from the canopy (B) by lower the hanger ball (JJ) and remove the cross pin (KK).
  • Page 8 Assembly — Hanging the Fan Attaching the mounting bracket to the Hanging the fan on the mounting electrical box bracket WARNING: To reduce the risk of re, electric shock or other WARNING: The tab in the ring must rest in the groove of personal injury, mount the fan only to an outlet box or supporting the hanger ball/downrod assembly (D).
  • Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: Check to see that all connections are tight, conductor White Black including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
  • Page 10 Assembly — Hanging the Fan (continued) Attaching the canopy Attaching the canopy bottom cover NOTE: Adjust the canopy mounting screws (EE) as necessary WARNING: Make sure the tab on the mounting bracket (A) until the canopy (B) and canopy bottom cover (C) are snug. properly sits in the groove in the hanger ball (D) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy housing until it drops into place.
  • Page 11 Assembly — Attaching the Fan Blades Removing the rubber packing mounts The fan motor assembly (F) is shipped with rubber packing mounts (QQ) to prevent movement during transportation. Remove the six rubber packing mounts (QQ) from the fan motor assembly (F) and discard prior to attaching the blade (G). Attaching the blade arm assembly to the motor WARNING: To reduce the risk of personal injury, do not bend...
  • Page 12 Assembly — Attaching the Fan Blades (continued) Fastening the blades to blade arm assembly Attach the blades (G) to the blade arm assembly (H) using the four blade attachment screws and bber washers (BB). Insert a blade attachment screw and bber washer (BB) into the blade arm assembly (H), but do not tighten.
  • Page 13: Operation

    Operation SETTING UP THE TRANSMITTER NOTE: The remote has been pre-paired in the factory for your convenience. NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children.
  • Page 14 Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. Signal light Fan ON/OFF button: Press and release this button to turn the fan on or off. Fan on/off Comfort Breeze Fan 9 SPEED button: Press and release the “+”...
  • Page 15 Operation (continued) INSTALLING THE REMOTE CONTROL HOLDER To install the remote control bracket (SS), remove the two screws holding the switch cover plate (TT). Do not remove the cover plate (TT). Orient the bracket (SS) by lining up the two mounting holes with those on the cover plate (TT).
  • Page 16: Care And Cleaning

    Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically.
  • Page 17 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...

This manual is also suitable for:

Danetree n243b-ni1008 698 2311008 697 659
