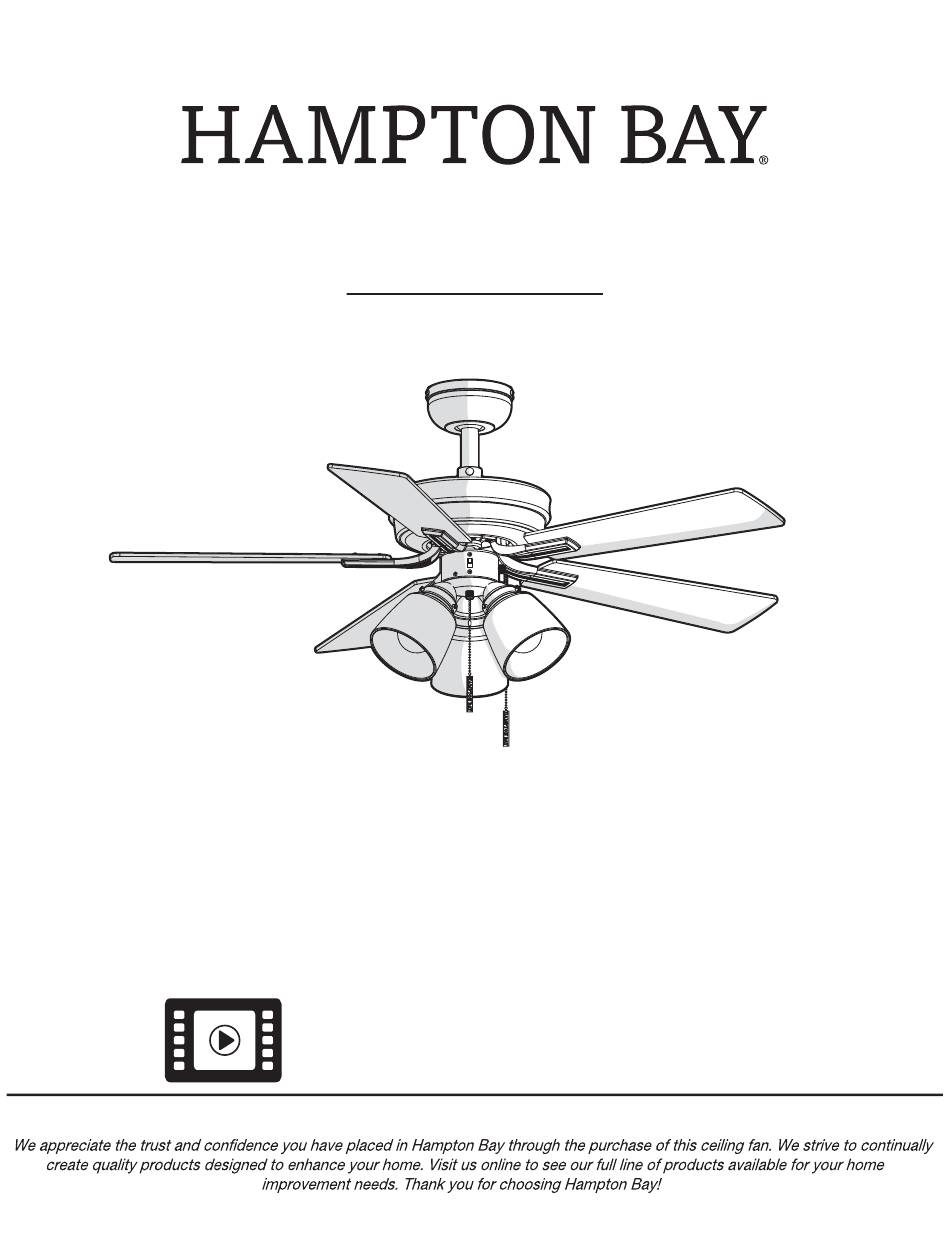

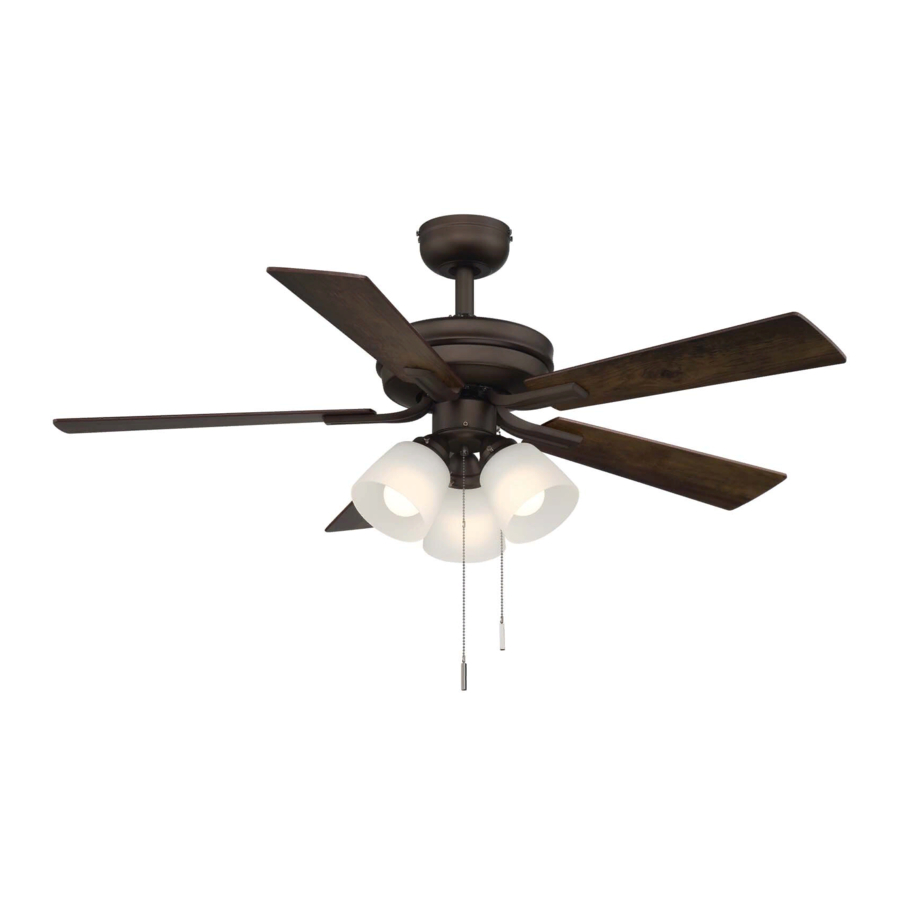

USE AND CARE GUIDE

SINCLAIR 44 INCH CEILING FAN

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to find

this fan and click the link of visual instruction in the product overview section.

THANK YOU

Item #1005 823 642

#1005 823 643

Model #AL958B-BN

#AL958B-EB

Table of Contents

Need help?

Do you have a question about the AL958B-BN and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY AL958B-BN

Page 1 #AL958B-EB USE AND CARE GUIDE SINCLAIR 44 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Visual instruction of how to install this fan: Visit www.homedepot.com and enter either the Item or Model number to find...
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Pull Chain Operating Instructions .......... Safety Information ............Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-installation .............. Troubleshooting ............Speciﬁcations ................Tools Required ................. Service Parts ............... Hardware Included ..............
Page 3: Safety Information
Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
Page 4: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Part Description Description Quantity Quantity Blade attachment screw and ﬁber washer Plastic wire nut Pull chain and fob 9 watt LED bulb HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Blade arm Canopy Blade Hanger ball/downrod assembly Light kit Fan motor assembly Glass shade...
Page 7: Installation
Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of ﬁre, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. The acceptable for fan support using the screws provided with the maximum angle allowable is 18°...
Page 8: Assembly
Assembly Preparing the canopy Preparing the motor □ □ Remove the two non-slotted canopy mounting screws Remove the cotter pin (FF) and clevis pin (GG), and loosen the two collar setscrews (HH) from the motor (EE) from the canopy (B), and loosen the slotted collar.
Page 9: Hanging The Fan
Assembly — Hanging the Fan Hanging the fan to the Installing the mounting bracket mounting bracket to the electrical box WARNING: To reduce the risk of ﬁre, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground WARNING: To avoid possible electrical shock, be sure conductor Neutral electricity is turned off at the main fuse box before wiring. Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
Page 11 Assembly — Hanging the Fan (optional) Single Switch Connections Dual Switch Connections □ □ On a single switch the fan and light can be turned on or On a dual switch the fan and light can be turned on or off off together.
Page 12 Assembly — Hanging the Fan (continued) Installing the canopy Outlet Box WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball (C) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy (B) until it drops into place.
Page 13: Attaching The Fan Blades
Assembly — Attaching the Fan Blades Removing the rubber Attaching the blades to packing mounts the blade arms □ □ The fan motor assembly (D) is shipped with rubber Attach the blades (F) to the blade arms (E) using the packing mounts (II) to prevent movement during three blade attachment screws and fiber washers transportation.
Page 14: Installing The Light Kit
Assembly — Installing the Light Kit Attaching the light kit to Mounting the glass shades and the switch housing installing the light bulbs □ Mount the glass shades (H) to the light sockets by CAUTION: Before starting installation, disconnect the unscrewing partway the three light holder power by turning off the circuit breaker or removing the fuse thumbscrews (NN) on each glass holder.
Page 15: Operation
Operation PULL CHAIN OPERATING INSTRUCTIONS PULL CHAIN OPERATING INSTRUCTIONS Install two pull chains and fobs (CC) onto the pull chains located in the switch housing and light kit (G). Turn on the power and check the operation of the fan. The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls - Medium, 3 pulls - Low, and 4 pulls - Off.
Page 16: Care And Cleaning
Care and Cleaning Do Do Do not Do not □ Check the support connections, brackets, and blade □ Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some connections may become loose over time.
Page 17 Troubleshooting (continued) Problem Problem Solution Solution □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
Page 18: Service Parts
Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Blade attachment screw and ﬁber washer Canopy Plastic wire nut Hanger ball/downrod assembly Pull chain and fob Fan motor assembly 9 watt LED bulb Blade arm Blade Light kit Glass shade...
Page 19 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
