Summary of Contents for GPM CHT2P2GRY

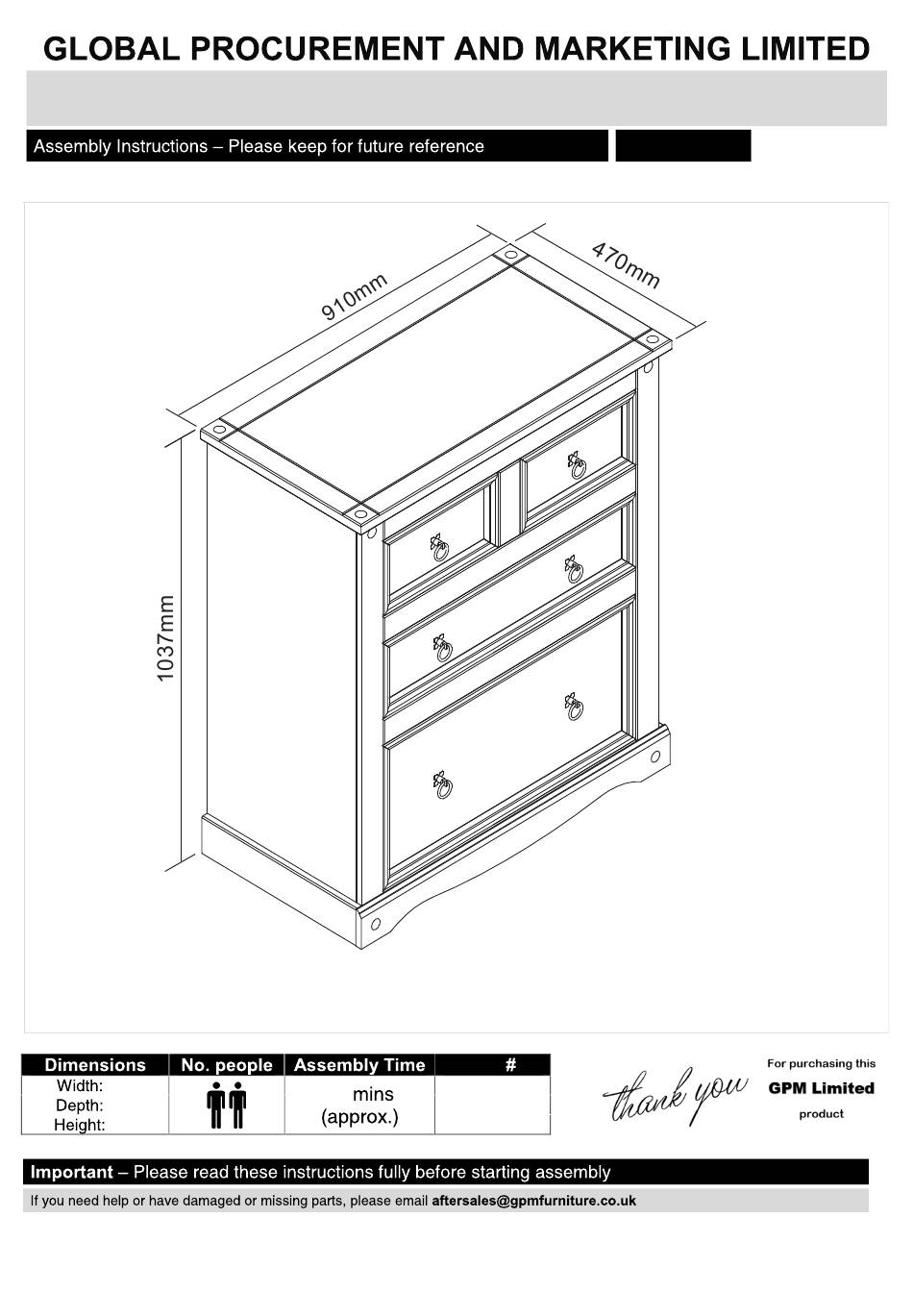

- Page 1 2 + 2 DRAWER CHEST CHT2P2GRY 91cm GP0220 47cm 2020/0244 103,7cm...
- Page 4 910 X 470 1012 X 436 LEFT SIDE PANEL 1012 X 436 RIGHT SIDE PANEL LARGE DRAWER BOTTOM 721 X 327 740 X 50 FRONT LOWER CROSS RAIL BACK CROSS RAIL 838 X 50 CENTRE DRAWER SLIDE 385 X 80 FRONT UPPER CROSS RAIL 740 X 64 DRAWER SLIDE...
- Page 5 30mm 25mm 28mm Ø4,5 Ø3,5 Ø8 GREY GOLD GOLD Warning! : Keep out of reach from children, Keep away from eyes, if 25mm product gets into eye rinse thoroughly Ø3,5 and repeatedly with water. Do not digest, if swallowed seek medical SILVER Glue GREY...
- Page 6 Step 1 25mm Ø8 Step 2 25mm Ø8...
- Page 7 Step 3 25mm Ø8 Step 4 25mm Ø8...
- Page 8 Step 5 28mm 25mm Ø3,5 Ø4,5 GOLD SILVER Step 6 28mm Ø4,5 GOLD...
- Page 9 Step 1 Step 7 28mm 25mm Ø3,5 Ø4,5 SILVER GOLD Step 8 90º 28mm 25mm Ø3,5 Ø4,5 SILVER GOLD...
- Page 10 Step Step 9 28mm Ø4,5 GOLD Step 10 90º 28mm Ø4,5 GOLD...
- Page 11 Step 1 Step 11 90º 28mm Ø4,5 GOLD Step 12 90º...
- Page 12 "Join drawer sides to drawer fronts with caution not to damage dovetail joints. Tap gently up and down the Step 1 Step 13 drawer side until fully inserted into drawer front." “Use a small drop of glue." 30mm 16mm Ø3,5 Ø3,0 glue GOLD...
- Page 13 "Join drawer sides to drawer fronts with caution not Step 1 Step 15 to damage dovetail joints. Tap gently up and down the drawer side until fully inserted into drawer front." “Use a small drop of glue." 30mm Ø3,5 glue GOLD 3/16 x 3/8 GREY...
- Page 14 Step 1 Step 17 WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING. IMPORTANT: IF YOUR WALLS ARE NOT SOLID LIKE BRICK OR STONE, YOU WILL REQUIRE SPECIALIST FITTINGS (NOT SUPPLIED). - Place fixing strip against the wall and mark position for drilling hole. - Drill hole in your wall to a depth of 30mm using a 6mm drill bit.
