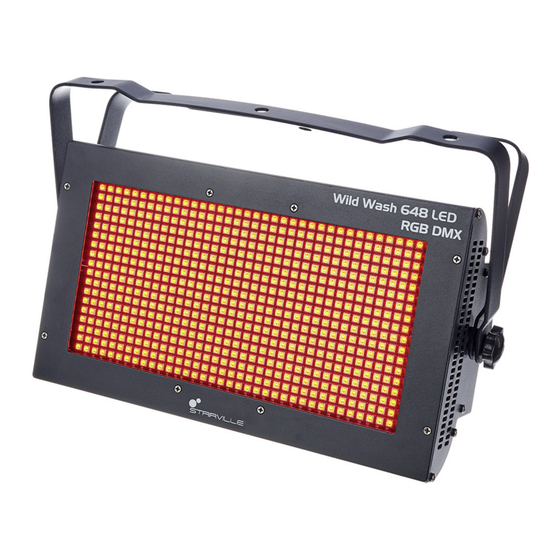

Wild Wash
132 LED RGB DMX,
132 LED White DMX,
648 LED RGB DMX
LED Floodlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRAIRVILLE Wild Wash 132 LED RGB DMX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann TRAIRVILLE Wild Wash 132 LED RGB DMX

Summary of Contents for thomann TRAIRVILLE Wild Wash 132 LED RGB DMX

  • Page 1 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 02.11.2023, ID: 399664, 399663, 399658 (V3)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 13 Installation..............................14 Starting up..............................17 Connections and controls........................19 Operating..............................23 7.1 Starting the device........................... 23 7.2 Main menu............................23 7.3 Menu overview..........................
  • Page 4 Table of contents 7.12 Functions in DMX mode 4Ch (model versions with RGB LEDs)........41 7.13 Functions in DMX mode 6Ch (model versions with RGB LEDs)........44 Technical specifications........................46 Plug and connection assignments....................52 Troubleshooting............................53 Cleaning............................... 55 Protecting the environment......................56 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 5 Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 6: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – danger zone. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 10 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death.
  • Page 11 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
  • Page 12 Safety instructions NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temper‐ atures above 40 °C.

  • Page 13: Features

    Features Features The LED floodlight is particularly suitable for lighting applications in clubs and discotheques, on rock stages, in theatres and musicals. It can also be used for effect lighting of stage back‐ grounds and as blinder. Special features of the device: Equipped with SMD LEDs with 0.2 W power consumption each, depending on the model version: –...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 16 Installation Please note that this device must not be connected to a dimmer. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 17: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 18 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 19: Connections And Controls

    Connections and controls Connections and controls Stairville Wild Wash 132 LED RGB DMX (item no. 399664) & DMX IN DMX OUT MODE UP DOWN ENTER ö Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 20 Connections and controls Stairville Wild Wash 132 LED White DMX (item no. 399663) & DMX IN DMX OUT Wild Wash 132 LED CW MODE UP DOWN ENTER ö Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 21 Connections and controls Stairville Wild Wash 648 LED RGB DMX (item no. 399658) DMX IN DMX OUT Wild Wash 648 LED RGB MODE UP DOWN ENTER ö & Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 22 Connections and controls 1 Display and control buttons: [MENU] | Activates the main menu and switches between menu items [UP] | Increases the displayed value by one [DOWN] | Decreases the displayed value by one [ENTER] | Selects an option of the respective operating mode 2 [DMX IN] | DMX input socket [DMX OUT] | DMX output socket 3 [MIC] | Microphone for sound control...

  • Page 23: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off.
  • Page 24 Operating DMX address This setting is only relevant if the device is controlled via a DMX controller. Press [MODE] repeatedly until the currently set DMX address appears in the display ( ‘Axxx’ ) and press [ENTER]. Use [UP] and [DOWN] to select the desired DMX address between 1 ( ‘A001’ ) and 512 ( ‘A512’...
  • Page 25 Operating Operating mode ‘Manual con‐ This setting is only relevant if the device is not controlled via a DMX controller and not working trol’ (RGB LED model versions) as slave in a master / slave configuration. In this mode, the intensity of the LEDs can be adjusted per colour and a Strobe effect can be engaged.
  • Page 26 Operating Operating mode ‘Colour mac‐ This setting is only relevant if the device is not controlled via a DMX controller and not working ros’ (RGB LED model versions) as slave in a master / slave configuration. In this mode, one of the three primary colours or a predefined mixed colour can be selected.
  • Page 27 Operating Setting Colour CM12 Pink CM13 Warm white CM14 White CM15 Cold white Operating mode ‘Automatic This setting is only relevant if the device is not controlled via a DMX controller and not working colour change’ (RGB LED model as slave in a master / slave configuration. In this mode, the colours are changed at freely select‐ versions) able speed, a Strobe effect can be engaged.
  • Page 28 Operating Operating mode ‘Fading’ (white This setting is only relevant if the device is not controlled via a DMX controller and not working LED model versions) as slave in a master / slave configuration. In this mode, the LEDs will gradually fade in with a freely selectable speed from blackout to maximum brightness and reverse, a Strobe effect can be engaged.
  • Page 29 Operating Operating mode ‘Automatic This setting is only relevant if the device is not controlled via a DMX controller and not working show’ (white LED model ver‐ as slave in a master / slave configuration. In this mode, the LEDs will gradually fade in with a sions) freely selectable speed from blackout to maximum brightness and reverse, the Strobe effect is automatically engaged in regular intervals.

  • Page 30: Menu Overview

    Operating Operating mode ‘Slave’ This setting is only relevant if the device is not controlled via a DMX controller and working as slave in a master / slave configuration. Master and slave devices are connected to each other via a DMX cable, the master device is in one of the operating modes ‘Manual control’, ‘Fading’, ‘Automatic show’...
  • Page 31 Operating Model versions with RGB LEDs MENU xChx Axxx Cxxx CMxx JUxx FAxx AUTO SLAV SOUN A001 C100 CM01 JU00 FA00 AU00 S000 2Ch1 A512 C199 CM15 JU99 FA99 AU99 S099 2Ch2 C200 JF00 FF01 3Ch1 C299 JF99 FF99 3Ch2 C300 3Ch3 C399...

  • Page 32: Functions In Dmx Mode 1Ch

    Operating 7.4 Functions in DMX mode 1ch Channel Value Function Strobe 0 … 10 LEDs off (blackout) 11 … 255 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 7.5 Functions in DMX mode 2Ch (model versions with white LEDs) Channel Value Function...

  • Page 33: Functions In Dmx Mode 2Ch1 (Model Versions With Rgb Leds)

    Operating 7.6 Functions in DMX mode 2Ch1 (model versions with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Colour macro 0 … 5 LEDs off (blackout) 6 … 13 14 … 21 Amber 22 … 29 Warm yellow 30 …...
  • Page 34 Operating Channel Value Function 94 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 … 128 Ending colour change 129 … 192 Colour change, increasing speed 193 … 255 Gradual colour change, increasing speed Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 35: Functions In Dmx Mode 2Ch2

    Operating 7.7 Functions in DMX mode 2Ch2 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...

  • Page 36: Functions In Dmx Mode 3Ch1

    Operating 7.8 Functions in DMX mode 3Ch1 Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...

  • Page 37: Functions In Dmx Mode 3Ch2 (Model Versions With Rgb Leds)

    Operating 7.9 Functions in DMX mode 3Ch2 (model versions with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on 6 … 10 LEDs off (blackout) 11 … 250 Strobe effect, speed increasing from approx. 0 Hz to 30 Hz 251 …...
  • Page 38 Operating Channel Value Function 54 … 61 Cyan 62 … 69 Blue 70 … 77 Lavender 78 … 85 Mauve 86 … 93 Magenta 94 … 101 Pink 102 … 109 Warm white 110 … 117 White 118 … 125 Cold white 126 …...

  • Page 39: Functions In Dmx Mode 3Ch2 (Model Versions With White Leds)

    Operating 7.10 Functions in DMX mode 3Ch2 (model versions with white LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...

  • Page 40: Functions In Dmx Mode 3Ch3 (Model Versions With Rgb Leds)

    Operating Channel Value Function 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity 7.11 Functions in DMX mode 3Ch3 (model versions with RGB LEDs) Channel Value Function 0 … 255 Intensity red (0 % to 100 %) 0 …...

  • Page 41: Functions In Dmx Mode 4Ch (Model Versions With Rgb Leds)

    Operating 7.12 Functions in DMX mode 4Ch (model versions with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...
  • Page 42 Operating Channel Value Function 14 … 21 Amber 22 … 29 Warm yellow 30 … 37 Yellow 38 … 45 Green 46 … 53 Turquoise 54 … 61 Cyan 62 … 69 Blue 70 … 77 Lavender 78 … 85 Mauve 86 …...
  • Page 43 Operating Channel Value Function 193 … 255 Gradual colour change, increasing speed Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 44: Functions In Dmx Mode 6Ch (Model Versions With Rgb Leds)

    Operating 7.13 Functions in DMX mode 6Ch (model versions with RGB LEDs) Channel Value Function 0 … 255 Dimmer (0 % to 100 %) Strobe 0 … 5 LEDs on, brightness controlled by channel 1 6 … 10 LEDs off (blackout) 11 …...
  • Page 45 Operating Channel Value Function Sound control 0 … 5 Sound control off 6 … 255 Sound control on, increasing sensitivity Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 46: Technical Specifications

    Technical specifications Technical specifications Stairville Wild Wash 132 LED RGB DMX (item no. 399664) Light source 132 × tricolour SMD LEDs, 0.2 W each Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels 1, 2, 3, 4 or 6 Input connections Power supply...
  • Page 47 Technical specifications Weight 1.05 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 48 Technical specifications Stairville Wild Wash 132 LED White DMX (item no. 399663) Light source 132 × SMD LEDs, cold white, 0.2 W each Light source properties Colour temperature 6000 K Colour rendering index CRI 75 Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels...
  • Page 49 Technical specifications Weight 1.05 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 50 Technical specifications Stairville Wild Wash 648 LED RGB DMX (item no. 399658) Light source 648 × tricolour SMD LEDs, 0.2 W each Optical properties Beam angle approx. 75° Control DMX, buttons and display on the unit Number of DMX channels 1, 2, 3, 5 or 7 Input connections Power supply...
  • Page 51 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Suitable for outdoor use LED type Floor housing Fanless Remote control Not possible wireless DMX Housing colour Black Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...

  • Page 52: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 53: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 54 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX...

  • Page 55: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 56: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 57 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
  • Page 58 Notes Wild Wash 132 LED RGB DMX, 132 LED White DMX, 648 LED RGB DMX LED Floodlight...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
