thomann STAIRVILLE Show Bar Tri 18x3W RGB User Manual

Led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Show Bar Tri
18x3W RGB
18x3W RGB WH
LED floodlight
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE Show Bar Tri 18x3W RGB and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE Show Bar Tri 18x3W RGB

Summary of Contents for thomann STAIRVILLE Show Bar Tri 18x3W RGB

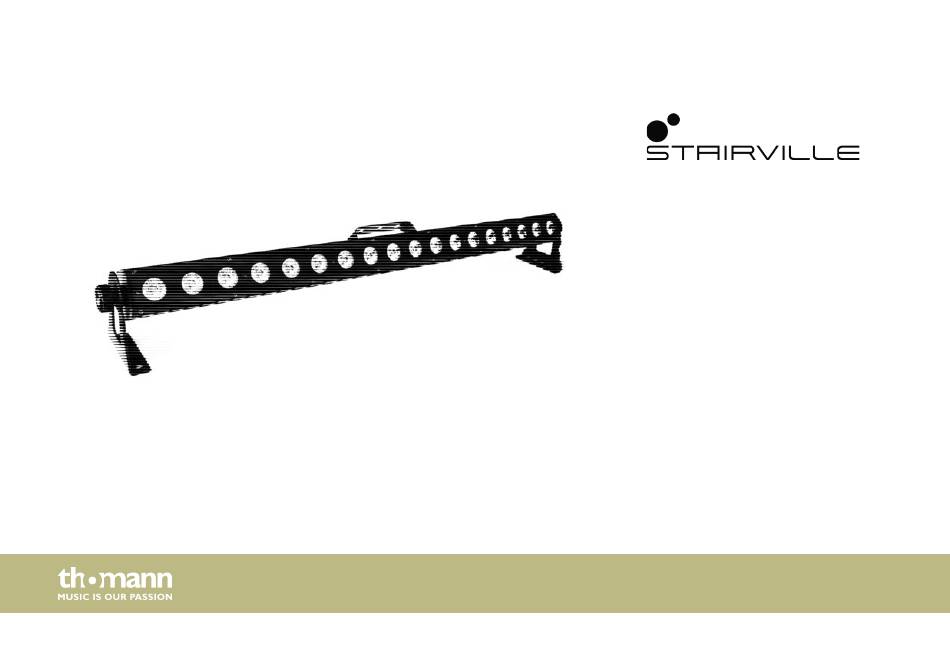

  • Page 1 Show Bar Tri 18x3W RGB 18x3W RGB WH LED floodlight user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 14.01.2020, ID: 326889, 343966 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 15 Installation..............................16 Starting up..............................20 Connections and operating elements................... 23 Operating..............................26 7.1 Starting the device...........................
  • Page 4 Table of contents 7.6 Functions in 5-channel DMX mode................... 36 7.7 Functions in 7-channel DMX mode................... 36 7.8 Functions in 18-channel DMX mode..................38 7.9 Functions in 27-channel DMX mode..................40 7.10 Functions in 54-channel DMX mode..................42 Technical specifications........................44 Plug and connection assignments....................

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Show Bar Tri 18x3W RGB18x3W RGB WH...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Show Bar Tri 18x3W RGB18x3W RGB WH...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 11 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 13 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 15: Features

    Features Features The LED floodlight is particularly suitable for lighting applications in clubs and discotheques, on rock stages, in theatres and musicals. It can also be used for effect lighting of stage back‐ grounds or framing catwalks. Special features of the device: 18 tri-colour LEDs (3 W each) Control via DMX (seven different modes) and via buttons and display on the unit 25 preprogrammed automatic shows...

  • Page 16: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more...
  • Page 18 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐...
  • Page 19 Installation Please note that this device must not be connected to a dimmer. Show Bar Tri 18x3W RGB18x3W RGB WH...

  • Page 20: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED floodlight...
  • Page 21 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 22 Starting up DMX indicator If the unit is in DMX mode and a DMX controller is connected and turned on, a dot on the fourth digit of the display will flash. If the unit is in DMX mode, but without a turned on DMX controller connected, the display will flash.

  • Page 23: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Show Bar Tri 18x3W RGB18x3W RGB WH...
  • Page 24 Connections and operating elements 1 [DMX In] DMX input. 2 [DMX Out] DMX output. 3 Display. 4 Button [Mode] Activates the main menu and toggles between menu items. 5 Button [Setup] Selects an option of the respective operating mode. 6 Button [Up] Navigates upwards in a menu list.
  • Page 25 Connections and operating elements 9 Locking screw for fixing the carriage. 10 Horizontally slidable carriage. 11 Locking screws for the adjustable retaining bracket. 12 Adjustable and removable mounting brackets and feet. 13 Locking screws for the mounting brackets / feet. 14 [POWER In] IEC chassis plug for operating voltage supply, with fuse holder.

  • Page 26: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off.
  • Page 27 Operating Operating mode ‘Preprog‐ A preprogrammed automatic show can only be activated when the unit is operating in stand- rammed automatic show’ alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX.
  • Page 28 Operating Operating mode ‘Automatic’ Automatic operation can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [Mode] repeatedly until the display shows ‘Auto’...
  • Page 29 Operating DMX address This setting is only relevant when the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (display shows ‘d001’...
  • Page 30 Operating Wait about 30 seconds until the display turns dark. Then the settings have been applied. To return to the parent menu without making changes, press [Mode]. DMX mode This setting is only relevant when the device is controlled via DMX. Press [Mode] repeatedly until the display shows ‘dxxx’...
  • Page 31 Operating Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] until the display shows ‘SLAv’ . Wait about 30 seconds until the display turns dark. Then the settings have been applied. To return to the parent menu without making changes, press [Mode].
  • Page 32 Operating Constant unicoloured pattern A constant unicoloured pattern can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘CLor’...

  • Page 33: Menu Overview

    Operating 7.3 Menu overview Show Bar Tri 18x3W RGB18x3W RGB WH...

  • Page 34: Functions In 2-Channel Dmx Mode

    Operating 7.4 Functions in 2-channel DMX mode Channel Value Function Operating mode Dark 1…7 8…15 Red + Green 16…23 Green 24…31 Green + Blue 32…39 Blue 40…47 Red + blue 48…55 Red + Green + Blue 56…63 Preprogrammed automatic show no. 2 64…71 Preprogrammed automatic show no.

  • Page 35: Functions In 3-Channel Dmx Mode

    Operating Channel Value Function 72…79 Preprogrammed automatic show no. 4 240…247 Preprogrammed automatic show no. 25 248…255 Sound-controlled show 0…255 Sound control sensitivity (from insensitive to highly sensitive) 7.5 Functions in 3-channel DMX mode Channel Value Function 0 … 255 Intensity Red (0 % to 100 %) 0 …...

  • Page 36: Functions In 5-Channel Dmx Mode

    Operating 7.6 Functions in 5-channel DMX mode Channel Value Function 0 … 255 Intensity Red (0 % to 100 %) 0 … 255 Intensity Green (0 % to 100 %) 0 … 255 Intensity Blue (0 % to 100 %) 0 …...
  • Page 37 Operating Channel Value Function 0…255 Intensity Blue (0 % to 100 %), if channel 5 = 0 0…255 Dimmer (0 % to 100 %) 0…255 Strobe effect, increasing speed Operating mode Colour mixing with channels 1, 2 and 3 1…7 8…15 Red + Green 16…23...

  • Page 38: Functions In 18-Channel Dmx Mode

    Operating Channel Value Function 64…71 Preprogrammed automatic show no. 3 72…79 Preprogrammed automatic show no. 4 240…247 Preprogrammed automatic show no. 25 248…255 Sound-controlled show 0…255 Progress speed, if channel 6 = 1…247, slow to fast Sensitivity of the sound control, if channel 6 = 248…255, from low to high sensitivity 7.8 Functions in 18-channel DMX mode In this mode, the LEDs are divided into six groups of three LEDs each.
  • Page 39 Operating Channel Value LEDs Function 0…255 1…3 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 4…6 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %)

  • Page 40: Functions In 27-Channel Dmx Mode

    Operating Channel Value LEDs Function 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 16…18 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 7.9 Functions in 27-channel DMX mode In this mode, the LEDs are divided into nine groups of two LEDs each.
  • Page 41 Operating Channel Value LEDs Function 0…255 1…2 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 3…4 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %)

  • Page 42: Functions In 54-Channel Dmx Mode

    Operating Channel Value LEDs Function 0…255 17…18 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 7.10 Functions in 54-channel DMX mode In this mode, you can control each LED individually. Each channel controls a primary colour of an LED.
  • Page 43 Operating Channel Value LEDs Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255...

  • Page 44: Technical Specifications

    Technical specifications Technical specifications Light source 18 × RGB LED, 3 W Optical properties Beam angle approx. 23° Control Number of DMX channels 2, 3, 5, 7 18, 27, 54 Input connections Voltage supply IEC chassis plug C14 DMX control XLR chassis socket, 3-pin Output connections Voltage supply...
  • Page 45 Technical specifications Mounting options Wall mounting, ceiling mounting, floor mounting Dimensions (W × H × D) 1050 mm (without stand) × 70 mm × 70 mm (without bracket) 1126 mm (incl. stand) × 70 mm × 170 mm (incl. bracket) Weight 4.96 kg Ambient conditions...
  • Page 46 Technical specifications Further information Outdoor-ready Colour mixture LED type x-in-1 Fanless Wireless DMX Housing colour Black Separately controllable LEDs LED floodlight...

  • Page 47: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 48: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 49 Troubleshooting Symptom Remedy The unit does not work, no light, Check the mains connection and the main fuse. the display is dark Apparently no function despite Check if the unit is in DMX mode or in ‘slave’ mode. If so, proper power supply check the device into a different mode.
  • Page 50 5. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or inter‐ ference to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED floodlight...

  • Page 51: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 52: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 53 Notes Show Bar Tri 18x3W RGB18x3W RGB WH...
  • Page 54 Notes LED floodlight...
  • Page 56 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
