Summary of Contents for Transcend TS250GSJ25C

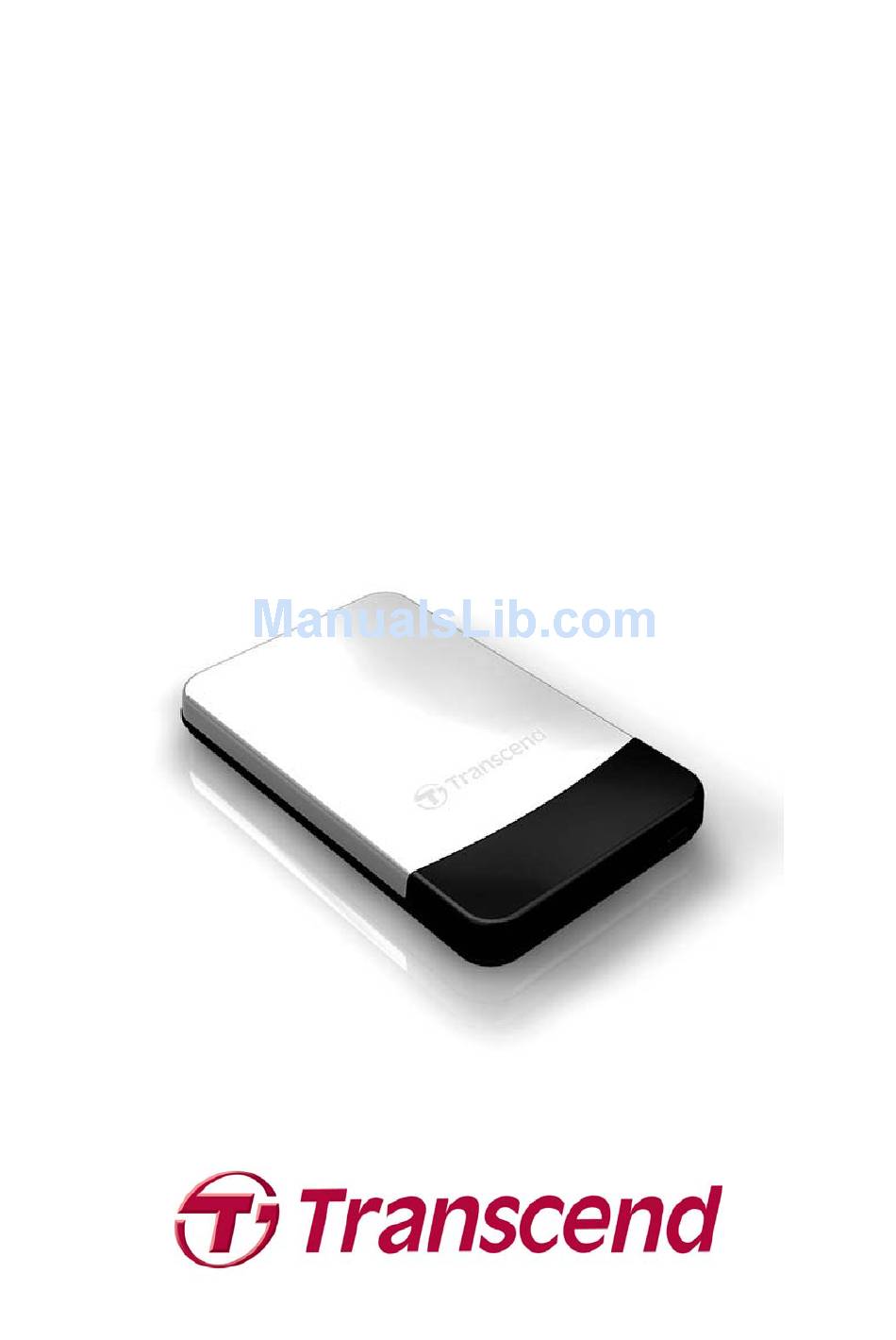

- Page 1 ® StoreJet User’s Manual...
-
Page 2: Table Of Contents
® Linux Kernel 2.4 or Later Formatting the Hard Drive︱...10 ® Windows 2000/XP... 10 ® Windows 7/ Vista... 11 ® OS... 14 ® Linux ... 16 Troubleshooting︱...17 Specifications︱...19 Ordering Information︱ ...19 Transcend Limited Warranty︱ ...20 Table of Contents ... 9... -
Page 3: Introduction
USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With its huge storage capacity and fast 480Mbps USB 2.0 data transfer rates, the compact StoreJet 25 is ideal for carrying your files, folders, documents, photos, music and videos to and from desktop or notebook computers. -
Page 4: Features
Features︱ Luxurious polished metal case with piano gloss connection panel Elegant faux-leather backing cushions drive against vibration Stylish protective carrying case High-speed USB 2.0 compliant and backwards compatible with USB 1.1 Easy Plug and Play operation – no drivers required High capacity hard drive for storing, carrying, and backing-up files Completely USB powered. -
Page 5: Safety Precautions
Backing Up Data • Transcend does NOT take any responsibility for data loss or damage during operation. If you decide to store data on your StoreJet 25 we strongly advise that you regularly backup the data to a computer, or other storage medium. -
Page 6: Reminders
• Please use the Mini USB to USB A-Type cable that came with the StoreJet 25 to connect it to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged. •... -
Page 7: Product Overview
Product Overview︱ Figure 1: StoreJet 25C Mini USB Port... -
Page 8: Connecting To A Computer
Connecting to a Computer︱ If you want to use the StoreJet 25 as an external hard drive to upload/download data to and from your computer, you will need to connect it to a USB port on the computer using the provided USB Y-cable. - Page 9 When the StoreJet 25 is successfully connected to a computer, the StoreJet’s Power LED will light up, a new Local Disk drive with a newly-assigned drive letter will appear in the My Computer window, and a Removable Hardware icon System Tray. The StoreJet 25’s internal hard drive comes pre-formatted for FAT32. Figure 4: *F: is an example drive letter, the letter in your "My Computer"...
-
Page 10: Disconnecting From A Computer
1. Select the Hardware 2. The Safely Remove Hardware pop-up window will appear. Select it to continue. 3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be safely removed from the system.” WARNING! To prevent data loss, always use this procedure to remove the StoreJet ®... -
Page 11: Linux ® Kernel 2.4 Or Later
Figure 7: Drag StoreJet 25 drive icon into the Trashcan ® Linux Kernel 2.4 or Later Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 25 from the USB port. -
Page 12: Formatting The Hard Drive
You must have Administrator Rights to format in Windows ® Windows 2000/XP 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. -
Page 13: Windows ® 7/Vista
10. Click the “Close” button to finish and exit. ® Windows 7/Vista 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. - Page 14 Figure 11: Run as administrator 6. The User Account Control window will appear. Select “Allow” to continue. Figure 12: Allow Transcend’s StoreJet Format Utility to run in Vista/7 7. In the StoreJet Format Utility window, click the “Refresh” button. 8. The program will automatically detect the StoreJet 25C drive.
- Page 15 Figure 13: The Utility will automatically detect the StoreJet 25 drive 9. Press “Start”. Figure 14: Press “Start” 10. A confirmation window will appear. Press OK to begin formatting the drive.
-
Page 16: Mac ® Os
® 1. Plug the StoreJet 25 into an available USB port on your MAC computer. 2. Unplug all other external storage devices from your computer. This is to prevent accidental format of a different drive. 3. Click the “Initialize” button. - Page 17 Figure 17: Select a Volume Format (file system) 7. Input a name for your new drive (otherwise, your drive will be named “Untitled”) 8. Click the “Erase” button in the bottom right corner of the window Figure 18: Name your drive (optional) 9.
-
Page 18: Linux
Linux 1. Plug the StoreJet 25 Ultra into an available USB port on your Linux computer. 2. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. 3. Type fdisk /dev/sda (replace /dev/sda with your actual USB device) 4. -
Page 19: Troubleshooting
StoreJet 25 in for repair. If you are unable to solve a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our website. - Page 20 1. Ensure that the StoreJet 25 is properly connected to the USB port(s) on your computer. 2. Ensure that the USB port is working properly. If not, try using an alternate USB port.
-
Page 21: Specifications
StoreJet 25C 124mm × 78mm × 14mm 173g 2.5-inch SATA Hard Disk Drive 5V DC supplied from the USB port(s) 480Mbits per second 5℃ (41℉) to 55℃ (131℉) CE, FCC, BSMI 2-years Capacity Transcend P/N 250GB TS250GSJ25C 320GB TS320GSJ25C 500GB TS500GSJ25C... -
Page 22: Transcend Limited Warranty
Transcend is not responsible for recovering any data lost due to the failure of a hard drive device. Transcend’s StoreJet 25 must be used with devices that conform to the recommended industry standards. Transcend will not be liable for damages resulting from a third party device that causes the Transcend StoreJet 25 to fail.
