Description
The Transcend CF 300X is a High Speed Compact
Flash Card with high quality Flash Memory assembled
on a printed circuit board.
Placement
Transcend Information Inc.
3
0
0
3
0
0
3
0
0
Features
• CompactFlash Specification Version 4.1 Complaint
• RoHS compliant products
• Single Power Supply: 3.3V ± 5 % or 5V ± 1 0%
• Operating Temperature: -25
• Storage Temperature: -40
• Operation Modes:
PC Card Memory Mode
PC Card IO Mode
True IDE Mode
• True IDE Mode supports:
Ultra DMA Mode 0 to Ultra DMA Mode 5 (Ultra DMA
mode 5 must use Power supply: 3.3V)
MultiWord DMA Mode 0 to MultiWord DMA Mode 4
PIO Mode 0 to PIO Mode 6
• PC Card Mode supports up to Ultra DMA Mode 5
• True IDE mode: Fixed Disk (Standard)
• PC Card Mode: Removable Disk (Standard)
• Durability of Connector: 10,000 times
• Support S.M.A.R.T (Self-defined)
• Support Security Command
• Support Wear-Leveling to extend product life
• Compliant to CompactFlash, PC Card Mode, and ATA
standards

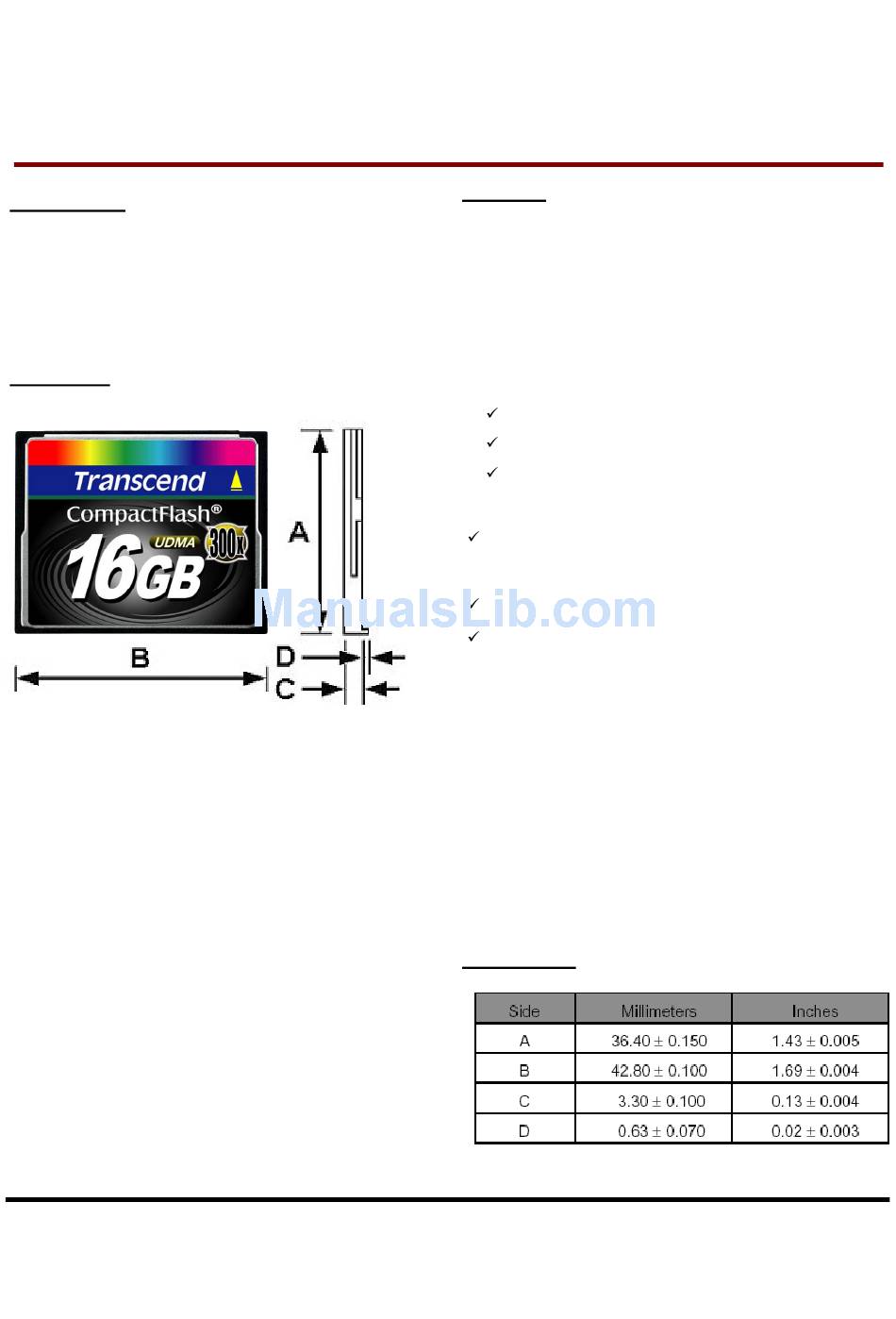

Dimensions
1
300X CompactFlash Card
o
o
C to 85
C
o
o
C to 85
C
V1.1
