- Page 1 128MB-256MB JetFlash™ DSC User’s Manual P/N TS128/256MJF-DSC...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents......................1 Features..........................1 System Requirements ....................... 1 Reminders .......................... 1 Data Storage Function Driver Installation for Windows 98SE ................2 Driver Installation for Windows Me, 2000, and XP ............3 Driver Installation for Mac OS 9.0 or Later ..............3 Driver Installation for Linux Kernel 2.4 or Later .............. - Page 3 Troubleshooting ..................... 16 Specifications ......................19 Ordering Information ................... 19 JetFlash Limited Warranty...
-
Page 4: Package Contents

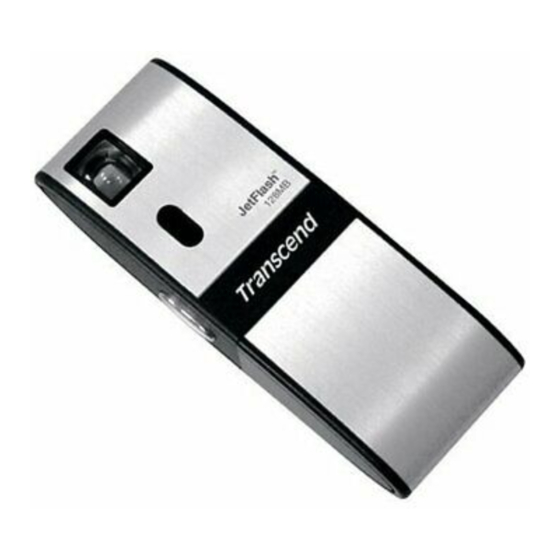

Introduction Thank you very much for purchasing Transcend’s JetFlash™ DSC. This small device is more than a USB Flash Drive. It combines a USB Flash Drive with the function of a Digital Camera. As a USB flash drive, it can expedite exchanging huge amounts of data between any desktop or laptop computer. -
Page 5: Data Storage Function
Data Storage Function Driver Installation for Windows 98SE 1. Drivers are required for Windows 98SE. Insert the Driver CD into the CD-ROM (Auto-Run supported). Select the Win98 Driver button. 2. The “USB Mass storage Driver – InstallShield Wizard” window will appear. Select Next to continue. -
Page 6: Driver Installation For Windows Me, 2000, And Xp
4. After restarting your computer, plug your JetFlash into an available USB port. Your computer will automatically detect the new device. A new Removable Disk drive with a newly assigned drive letter will appear in the My Computer window. Driver Installation for Windows Me, 2000, and XP No drivers are required. -
Page 7: Driver Installation For Linux Kernel 2.4 Or Later
Avoid using the USB connection in your Mac keyboard, it does not have sufficient power to detect your JetFlash. Please use an available USB port in your Mac Desktop. Driver Installation for Linux Kernel 2.4 or Later No drivers are required. Simply plug your JetFlash into the USB port and mount it. Example: Create directory for JetFlash first mkdir /mnt/jetflash... -
Page 8: Digital Camera Function
Digital Camera Function Product Overview Components Controls Memory LED (Green) Show the status of the USB Flash Drive status. Power LED (Red) Shows the power status of the camera. Viewfinder Window To help frame your picture. Strap Hole Attach the supplied neck strap here hutter Button Press down to take your picture. -
Page 9: Power Supply
Power Supply JetFlash is powered by a built-in rechargeable lithium battery, which you can charge directly from your computer via the USB port When you use your JetFlash as a Digital Camera for the very first time, you’ll need to charge the battery approximately two (2) hours before taking pictures. -
Page 10: Taking Pictures
Always close the camera lens cover of your JetFlash when not taking pictures. This will conserve power and protect the camera lens. Taking Pictures 1. Disconnect your JetFlash from the USB port of your computer. 2. Open the lens cover to power on your JetFlash and verify the Power LED is solid (red). 3. -
Page 11: Status Indications
Status Indications Indications Status Beep JetFlash is powered on Buzzer Double Beep Picture taken Solid Full power Power LED Blinking Low Power (Red) Power off Solid Space available for pictures Memory LED (Green) Not enough space available for pictures View / Transfer Pictures in Windows 1. -
Page 12: View / Transfer Pictures In Mac Os
for detailed instructions. View / Transfer Pictures in Mac OS 1. Plug your JetFlash into an available USB port on Mac. (Avoid using the USB connection in your Mac keyboard.) 2. Double-click on the Disk icon of your JetFlash, and select DCIM \ 100-IMG to access your pictures. -
Page 13: Installing Photo Explorer 8.0
Installing Photo Explorer 8.0 1. Insert the Driver CD into the CD-ROM (Auto-Run supported). Select the Photo Explorer 8.0 button. 2. Select your local language and select Next to continue. 3. Follow the on-screen instructions to complete the installation. After the installation is complete, the Photo Explorer 8.0 icon will appear on your desktop. -
Page 14: Enhance Image Quality
Enhance Image Quality 1. Double-click the Photo Explorer 8.0 icon on your desktop to execute Photo Explorer 8.0. 2. Select the picture(s) that you want to enhance the image quality. 3. From the Tools pull down menu, select Convert Image Files..The Convert window will appear. - Page 15 4. Select the Resample image size to: checkbox and select the pixels option. Refer to following table and type in the suitable value to enhance the image quality. Input Image Image Value Resolution Size 0.3M pixels 640 x 480 pixels 1280 1.3M pixels 1280 x 960 pixels...
-
Page 16: Adjust Image
Adjust Image 1. Double-click the Photo Explorer 8.0 icon on your desktop to execute Photo Explorer 8.0. 2. Select the picture that you want to adjust. 3. From the Photo pull down menu, select Adjust Image..The Adjust Image window will appear. -
Page 17: Learn More
• Rotate – Spins an image until the desired appearance • Crop -- Cuts out undesired parts from an image • Contrast -- Makes an image look lighter or darker • Balance -- Adjusts the existing colors in an image to make it look more accurate or to change the overall tone of the image •... -
Page 18: Safely Remove Your Jetflash
Safely Remove Your JetFlash Remove JetFlash in Windows 98SE Unplug JetFlash from your system directly when data is not transferring. Remove JetFlash in Windows Me, 2000, and XP 1. Select the icon in the system tray. 2. The Safely Remove Hardware pop-up menu will appear. Select to continue. 3. -
Page 19: Troubleshooting
Troubleshooting If an error occurs, first check the points listed below before taking your JetFlash for repair. If you are unable to remedy a problem from the following hints, please consult your dealer or service center. How long will the Camera battery last? With constant use, a fully charged camera battery will last approximately five (5) hours. - Page 20 2. Avoid touching the lens and viewfinder with your fingers. 3. Avoid taking pictures in low lighting conditions. Make use of Photo Explorer 8.0 to improve the image quality. AutoDetector always pop-up It is a default feature to allow you easily manage your pictures. To remove the AutoDetector program, you must execute Photo Explorer 8.0 and select Preferences...
- Page 21 18 -...
-
Page 22: Specifications
Fixed focus length • Built-in Battery: Rechargeable lithium battery • Power On Time: Under 3 seconds • Shot to Shot Time: Under 2 seconds • Certificates: CE, FCC, BSMI Ordering Information Memory Size Transcend P/N 128MB TS128MJF-DSC 256MB TS256MJF-DSC 19 -... - Page 23 This warranty is subject to the conditions and limitations set forth herein. Duration of Warranty: Transcend JetFlash are covered by this warranty for a period of two (2) years from the date of purchase. Transcend will inspect the product and make the determination as to whether the product is eligible for repair or replacement.
