Description
The Transcend CF 133X is a High Speed Compact
Flash Card with high quality Flash Memory assembled
on a printed circuit board.

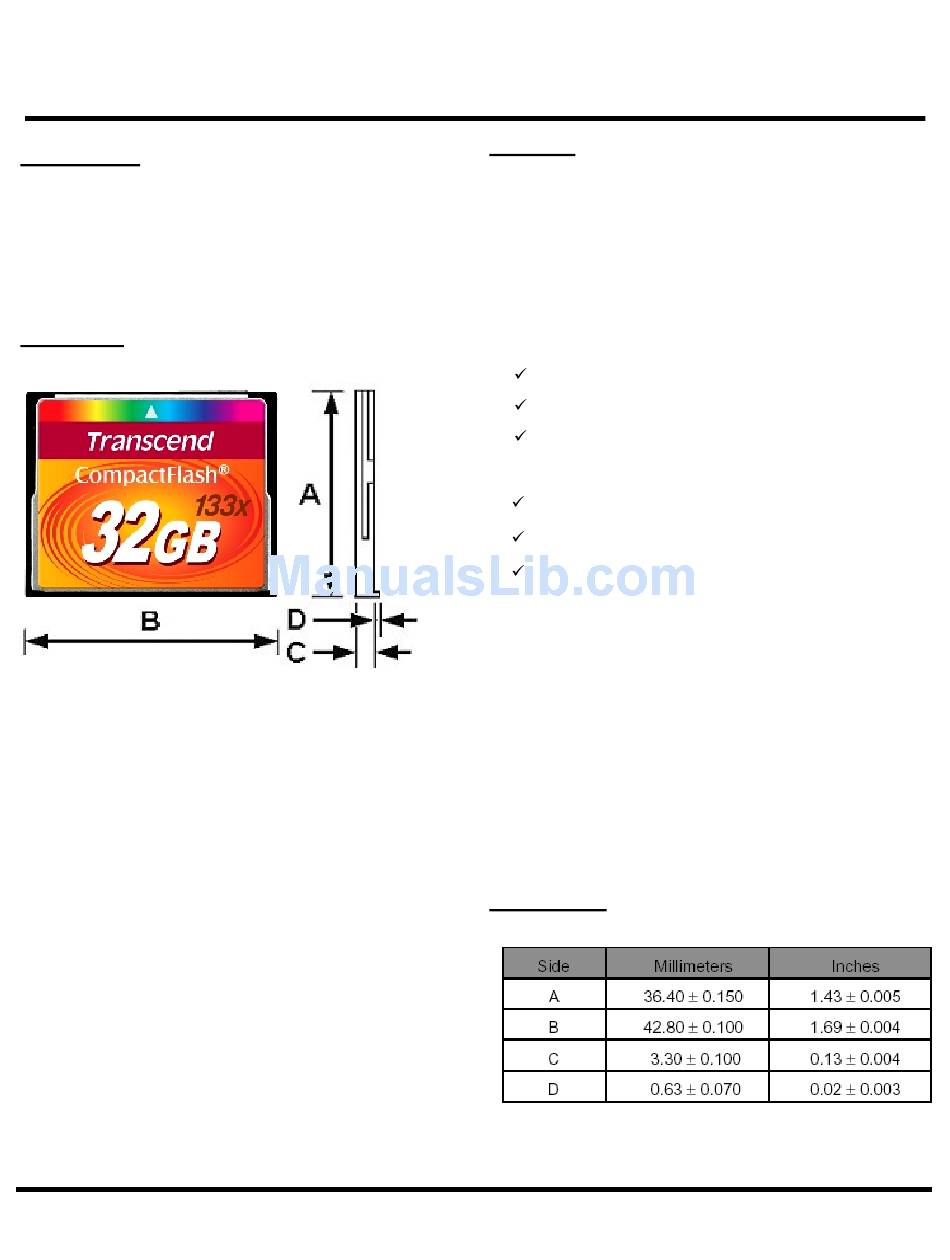

Placement
Transcend Information Inc.
3
3
1
3
3
1
3
3
Features
• CompactFlash Specification Version 4.1 Complaint
• RoHS compliant products
• Single Power Supply: 3.3V±5% or 5V±10%
• Operating Temperature: -25
• Storage Temperature: -40
• Operation Modes:
PC Card Memory Mode
PC Card IO Mode
True IDE Mode
• True IDE Mode supports:
Ultra DMA Mode 0 to Mode 4
MultiWord DMA Mode 0 to Mode 4
PIO mode 0 to mode 6
• True IDE mode: Fixed Disk (Standard)
• PC Card Mode: Removable Disk (Standard)
• Durability of Connector: 10,000 times
• Support S.M.A.R.T (Self-defined)
• Support Security Command
• Support Wear-Leveling to extend product life
• Compliant to CompactFlash, PCMCIA, and ATA
standards
Dimensions
1
133X CompactFlash Card
o
o
C to 85
C
o
o
C to 85
C
