Rear Panel

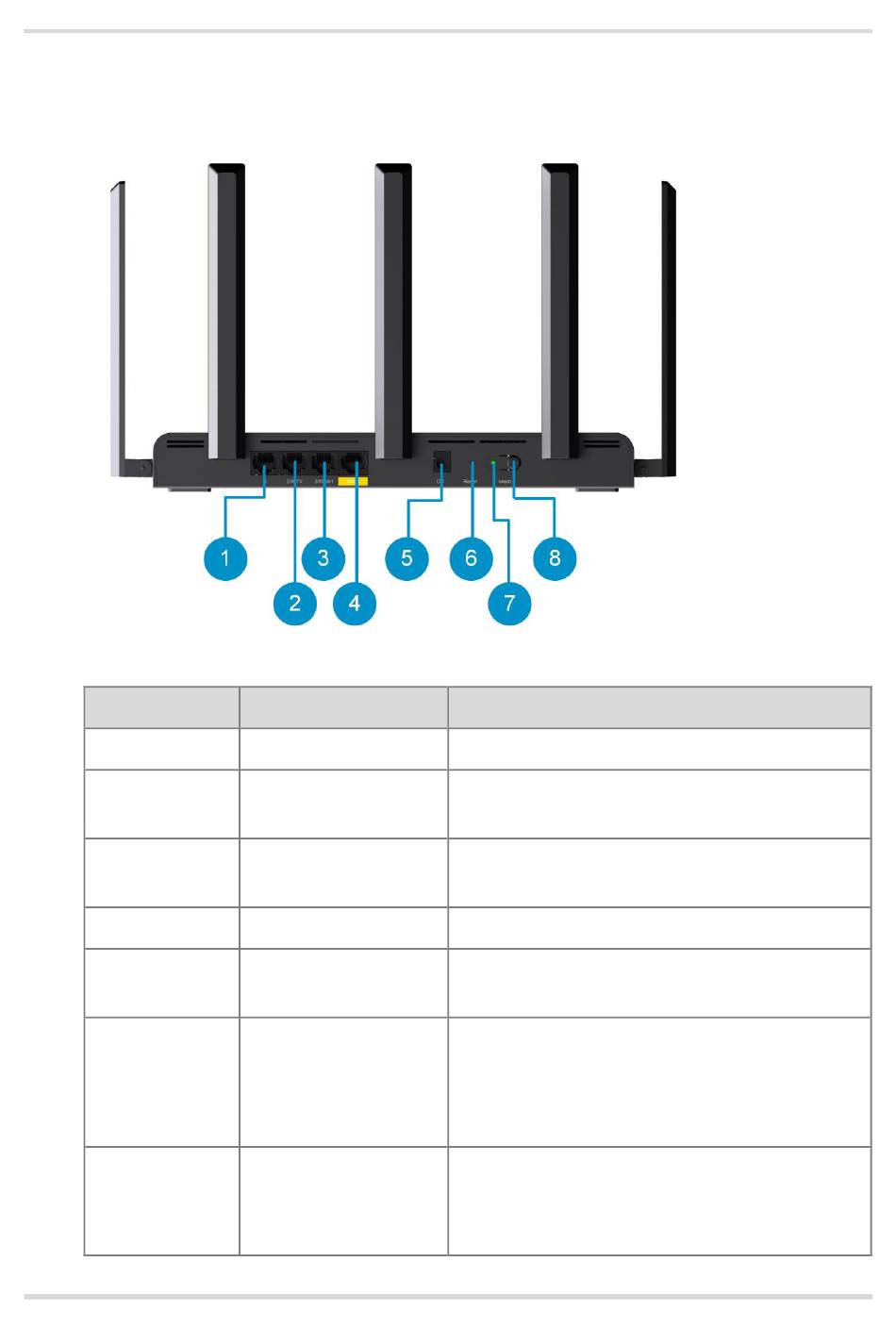

Figure 1-2 Rear Panel
Table 1-3 Ports and Buttons
No.
1
2
3
4
5
6
7
Item
Gigabit LAN port
Gigabit LAN port
Gigabit Ethernet port
(labeled WAN/LAN)
Gigabit WAN port
DC power cord connector
Reset button
Mesh LED
Description
10 Mbps/100 Mbps/1000 Mbps Base-T downlink port
10 Mbps/100 Mbps/1000 Mbps Base-T downlink port,
supporting IPTV
10 Mbps/100 Mbps/1000 Mbps Base-T port
10 Mbps/100 Mbps/1000 Mbps Base-T uplink port
Connects to a 12 V/1.5 A DC power adapter to supply
power to the router.
Press and hold for less than 1 second: No action is
triggered.
Press and hold for more than 10 seconds: The router is
restored to factory defaults.
Blinking: The meshing is in process.
Off: Not meshed.
On: Meshed successfully.
