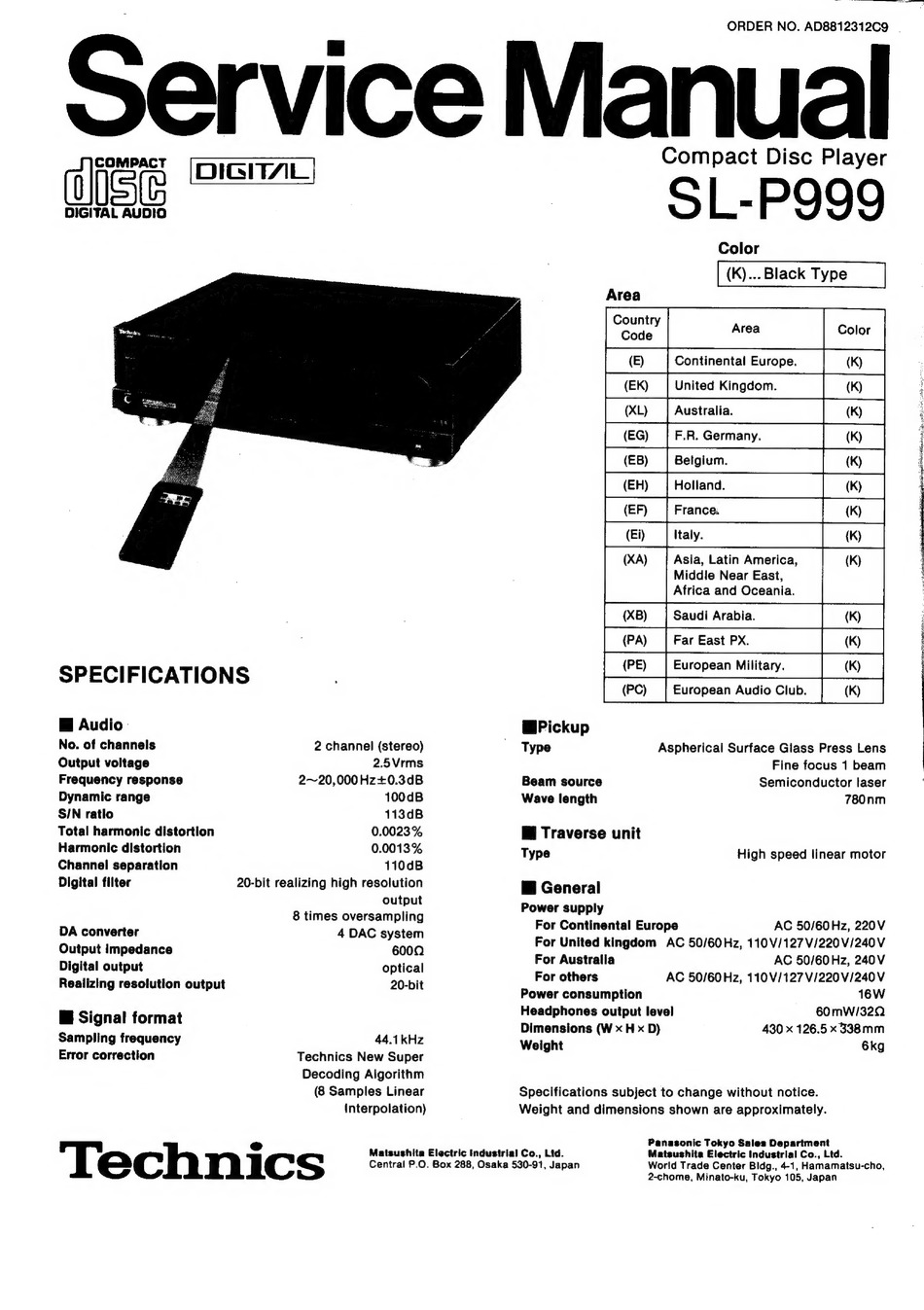

Technics SL-P999 Service Manual

ORDER NO. AD8812312C9
aise [DIGITAL_|
DIGITAL AUDIO
SPECIFICATIONS
i Audio:
No. of channels 2 channel (stereo)
Output voltage 2.5Vrms
Frequency response 2~20,000 Hz+0.3dB
Dynamic range 100dB
SIN ratio 113dB
Total harmonic distortion 0.0023%
Harmonic distortion 0.0013%
Channel separation 110dB
Digital filter 20-bit realizing high resolution
output
8 times oversampling
DA converter 4 DAC system
Output impedance 600Q
Digital output optical
Realizing resolution output 20-bit
@ Signal format
Sampling frequency 44.1kHz
Error correction Technics New Super
Decoding Algorithm
(8 Samples Linear
Interpolation)
e Matsushita Electric Industrial Co., Ltd.
ec nics Central P.O. Box 288, Osaka 530-91, Japan
Compact Disc Player
oL-P999
Color
(K)... Black Type
Area
Code olor
[© | Continenta Europe, |
[6 [unites kingdom. |_|
w
eas
(XA) Asia, Latin America,
Middle Near East, al
| |
Lm |
Africa and Oceania.
(PA) Far East PX.
(PE) European Military.
(PC) European Audio Club.
@Pickup
Type Aspherical Surface Glass Press Lens
Fine focus 1 beam
Beam source Semiconductor laser
Wave length 780nm
@ Traverse unit
Type High speed linear motor
@ General
Power supply
For Continental Europe AC 50/60 Hz, 220V
For United kingdom AC 50/60Hz, 110V/127V/220V/240V
For Australia AC 50/60Hz, 240V
For others AC 50/60 Hz, 110V/127 V/220V/240V
Power consumption 16W
Headphones output level 60 mW/32Q
Dimensions (W x H x D) 430 x 126.5 x 338mm
Weight 6kg
Specifications subject to change without notice.
Weight and dimensions shown are approximately.
Panasonic Tokyo Sales Department
Matsushita Electric Industrial Co., Ltd.
World Trade Center Bldg., 4-1, Hamamatsu-cho,
2-chome, Minato-ku, Tokyo 105, Japan
