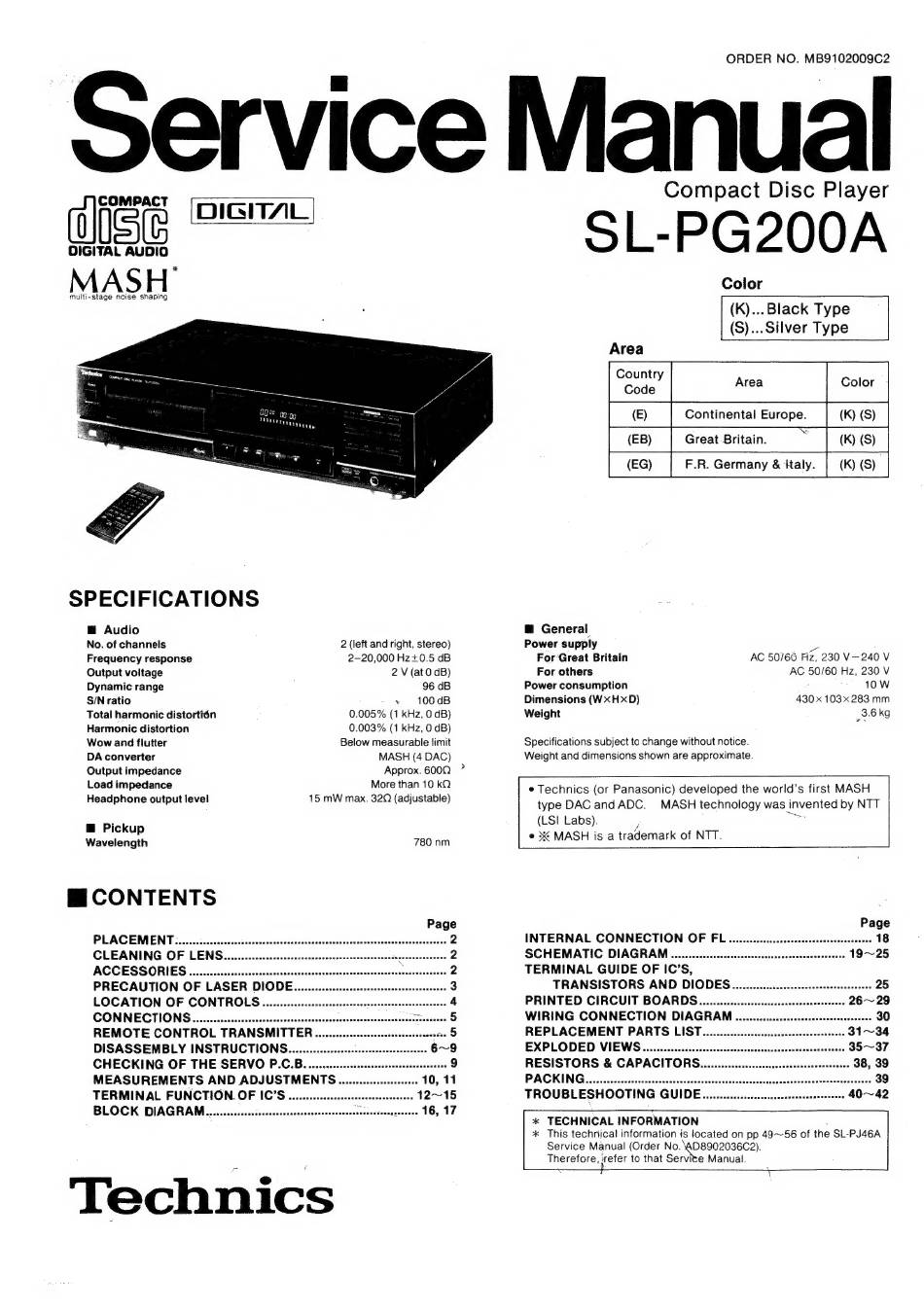

Technics SL-PG200A Service Manual

ORDER NO. MB9102009C2
Service Manual
Compact Disc Player
Hise SL-PG200A
%
Color
(K)... Black Type
(S)...Silver Type
multi-stage noise shaping
Area
Country
Continental Europe. (K) (S)
(EB) Great Britain. (K) (S)
SPECIFICATIONS
@ Audio @ General
No. of channels 2 (left and right, stereo) Power supply e
Frequency response 2-20,000 Hz+0.5 dB For Great Britain AC 50/66 Fiz, 230 V—240 V
Output voltage 2 V (at 0 dB) For others AC 50/60 Hz, 230 V
Dynamic range 96 dB Power consumption , : 10W
S/N ratio » 100dB Dimensions (WxHxD) 430 x 103x283 mm
Total harmonic distortién 0.005% (1 kHz, 0 dB) Weight 3.6 kg
Harmonic distortion 0.003% (1 kHz, 0 dB)
Wow and flutter Below measurable limit Specifications subject to change without notice.
DA converter MASH (4 DAC) Weight and dimensions shown are approximate.
Output impedance Approx. 600Q *
Load impedance Mate iret UPR ¢ Technics (or Panasonic) developed the world's first MASH
Heap O ne aa love! TREE Mahe PEs EEE type DAC and ADC. MASH technology was invented by NTT
. (LSI Labs). : a
cre
780 nm
¢ >< MASH is a trademark of NTT.
Mi CONTENTS
Page Page
PLACEMENT 2cscescecccccsdeacisctssapscsctsvscutvectssausoussiavscicadsneveersaussvsees 2 INTERNAL CONNECTION OF FL... ceeeeeeeeeesereeeesseeeeee 18
CLEANING OF LENS. eee' 4 SCHEMATIC DIAGRANW .........:cccsssssessesecssessesrseerseneeeseees 19~25
ACCESSORIES ........sccccssssserssereceveeee wee 2 TERMINAL GUIDE OF IC'S,
PRECAUTION OF LASER DIODE.. 3 TRANSISTORS AND DIODEG............. ce ssssessscsesenseeeseene 25
LOCATION OF CONTROLG............ wee 4 PRINTED CIRCUIT BOARDG............... . 26~29
CONNECTIONS .........:ccccccssseceseeessceeeetsecessceeseeeaenssesssenessecsasesese 5 WIRING CONNECTION DIAGRAN . . . . . . . . . . . . . . : : : : c c s s c e r s e r e e s s e e e n e e s 30
REMOTE CONTROL TRANSMITTER ........cccsssssssssssscesersesees wie SD REPLACEMENT PARTS LIST.. 31~34
DISASSEMBLY INSTRUCTIONG.......... : .6~9 EXPLODED VIEWS ...........::0c000 wee 35~37
CHECKING OF THE SERVO P.C.B.............cecsessssseesseesesenatees 9 RESISTORS & CAPACITORG...............ccssssssssceereeseoeeteeeee 38, 39
MEASUREMENTS AND ADJUSTMENTS. ............:eccceses 10, 11 PACKING isieiesesccciciescssscnaasccscticctscectescanesececbisssoceavestenendevbcsacnseense 39
TERMINAL FUNCTION. OF IC'S. .............. : TROUBLESHOOTING GUIDE.............cesssseseeseeeteeseetneee 40~42
BLOCK DIAGRAM at
* TECHNICAL INFORMATION
* This technical information is located on pp 49~56 of the SL-PJ46A
Service Manual (Order No. AD8902036C2).
Therefore, irefer to that Servite Manual.
Technics
