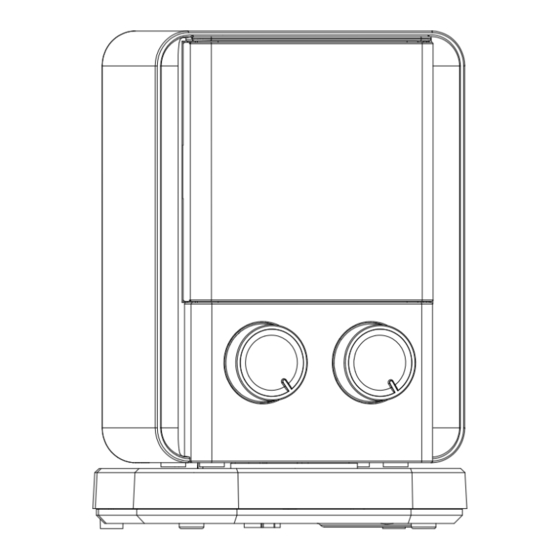

- Page 1 维修手册 Service Manual, 2017 v1.0 Service Manual 维修手册 适用机型 Applicable Models NTY15-22EA （本图片为参考示意图，具体外观和配置以实物为准）(The picture is only for reference, and specific appearance and configuration are subject to the real product) 编制 Prepared by 王俊彬 Reviewed by 审核 曾垂雨 Approved by 批准...
-
Page 2: Important Safety Notice
Midea Environment Appliance Technical Maintenance Manual Copyright @2017 All rights reserved. Replication of all or part of the Manual in any forms shall not be allowed without written approval by the Overseas Sales of Midea Environment Appliance. 2 / 9... -
Page 3: Safety Warning Code
维修手册 Service Manual, 2017 v1.0 安全警示规范 Safety Warning Code WARNING Read these instructions. Keep these instructions. Follow all instructions. Do not use this appliance near water. This appliance is intended to be used in household and similar environments. Clean only with a damp cloth. Install in accordance with the manufacturer’s instructions. - Page 4 维修手册 Service Manual, 2017 v1.0 整机拆卸 Dismantling of appliance 后壳拆卸 Back shell removal 1、后壳螺钉拆卸； 1、Remove rear shell screws； 4 / 9...
- Page 5 维修手册 Service Manual, 2017 v1.0 风机拆卸 Fan removal 1、卸下螺钉，取出风机； 1、Remove the screws，take out of the Fan； 5 / 9...
- Page 6 维修手册 Service Manual, 2017 v1.0 电源板拆卸 PCB Assembiy removal 1、将电源板从防火盒中取出； 2、拔出所有端子； 1 、 Remove the PCB Assembiy from the fire protection box. 2、Pull out all terminals; 发热体拆卸 PTC removal 1、拧开螺钉，取下 PTC； 2、拔掉线束； 1、 Twist down the screws, and take down the PTC; 2、Pull out the wiring harness；...
-
Page 7: Fault Code And Solutions
维修手册 Service Manual, 2017 v1.0 2.5 开关、温控器拆卸 Fan component removal 1、取出开关、温控器，拔出所有端子； 1、 Pull out all terminals，take out the link; 常见故障及解决方法 Fault code and solutions 故 障 代 码 故障内容 Fault 显示 维修方法步骤 Display Steps for maintenance methods Fault code content A、需检查有没有在非正常情况下使用，如有，需拆开控... - Page 8 维修手册 Service Manual, 2017 v1.0 Appendix: 附录 维修常用工具、设备和材料 refrigerator maintenance tooling and equipment and material 工具 Tooling 名称 图片 主要用途 Name Photo Main Usage 十字螺丝刀 拆卸螺钉 Phillips screw assemble and screwdriver disassemble 平口螺丝刀/小铲刀 拆卸螺钉和铆钉 screw and slotted screwdriver/scraper rivet assemble and disassemble 尖嘴钳...
- Page 9 如需获得厂家详细技术咨询，请联系： xxx@midea.com 环境电器事业部 外销 地址：中国广东省中山市东凤镇东阜路和穗工业园东区 28 号 Midea Environment Appliance If you need to get detailed technical information from the manufacturer, please contact: xxx@midea.com Environment Appliance Division Overseas Sales Address: Eastern 28th, Hesui industrial Park, Dongfu Road, Dongfeng Town, Zhongshan City,...
