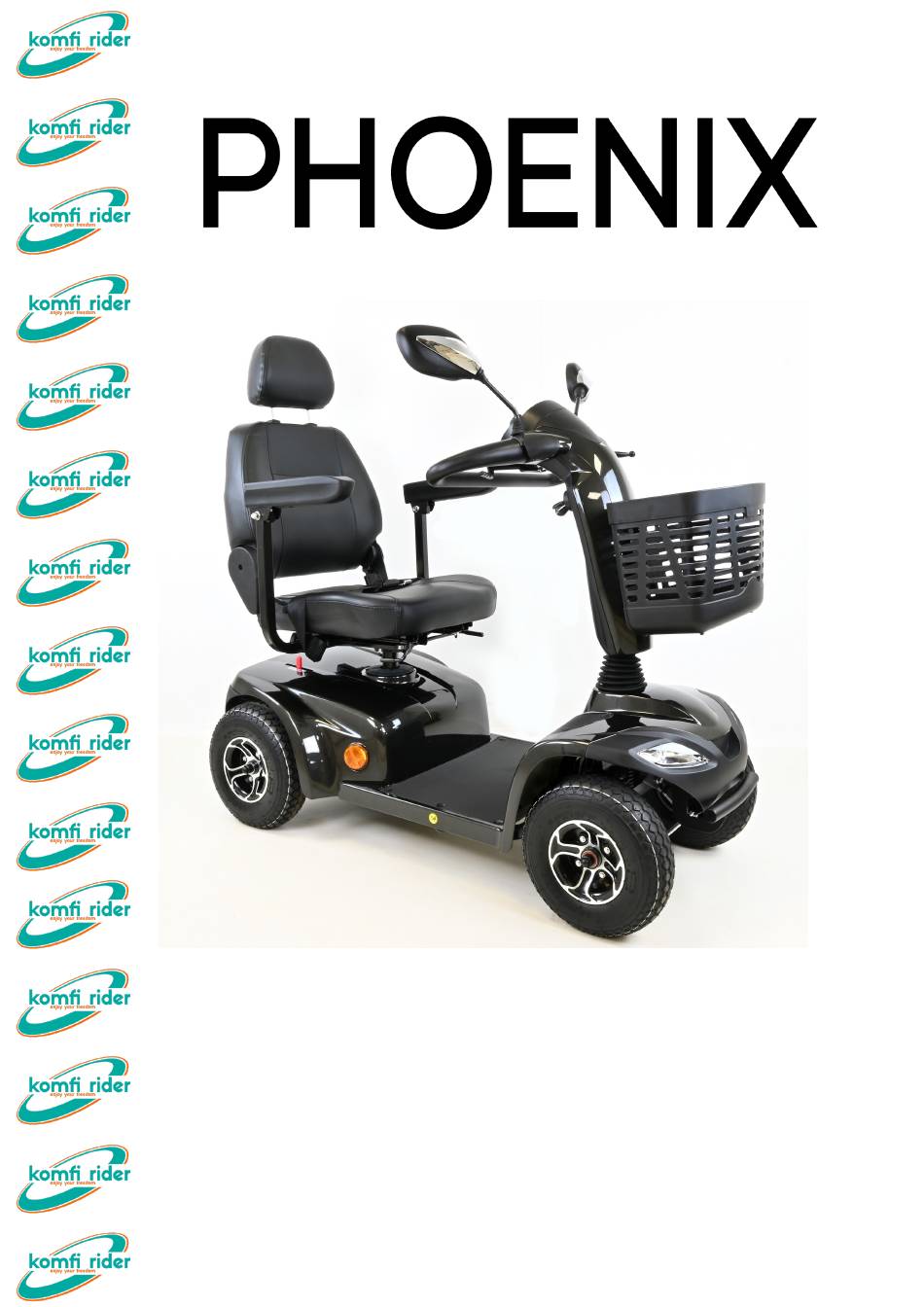

- Page 1 MOBILITY SCOOTER USER MANUAL...
-
Page 2: Table Of Contents
Congratulations on the purchase of your new Phoenix Mobility Scooter! The advanced design of the Phoenix ensures many years of enhanced trouble-free mobility. Correct use improves your mobility and quality of life. Your safety is important to us. Please read this owner’s manual before using the scooter. Improper use of the scooter could result in harm, injury or traffic accidents. -
Page 3: Safety Guidelines
Additional general information can be found on the supplemental information sheets and booklets included in your Owner’s Package. Please fully read and review the information and keep it readily available for future reference. KOMFI-RIDER... -
Page 4: Pre Ride Safety Check
WARNING! This scooter is not intended for use as a seat in a motor vehicle. The scooter could fail in a vehicle impact, leading to serious injury or death of the occupant or injury to others. KOMFI-RIDER... -
Page 5: Specification
Tiller Charger Brake Automatic Electromagnetic & Hand Brake REMARK: Komfi-Rider reserves the right to modify the specification if necessary. The final specification is subject to the individual scooter you purchase from your dealer. *Subject to user weight and terrain KOMFI-RIDER... -
Page 6: Components Of The Scooter
14 Basket Anti Tip Wheel 15 Mirror Rear Wheel 16 Tiller Handle Your scooter is equipped with a number of elements and parts. You should know these before using the scooter. Designs and specifications may change without prior notice. KOMFI-RIDER... -
Page 7: Operation - Control Panel
Press the Direction Indicator Button for turning left or right. • When turning left press the button down on the left side, the left indicator will flash. • When turning right press the button down on the right side, the right indicator will flash. KOMFI-RIDER... - Page 8 When the scooter is moving in reverse, the re- verse beeper will sound. When the throttle is completely released, it automatically returns to the centre “stop” position and engages your scooter’s brakes. KOMFI-RIDER...
- Page 9 Refer to the manual supplied with the battery charger for more information. KOMFI-RIDER...
-
Page 10: Operation - Before Getting On Your Scooter
1) Drive position - is indicated by ‘D’ - pull the lever downwards for this position (Fig 6.1.1). 2) Freewheel position - is indicated by ‘N’ – push the lever forwards for this position(Fig 6.1.2). FIG 6.1.1 FIG 6.1.2 KOMFI-RIDER... - Page 11 WARNING! Stand to the side of the scooter to engage or disengage freewheel mode. Never sit on a scooter to do this. WARNING! After you have finished pushing your scooter, always return it to the drive mode to lock the brakes. KOMFI-RIDER...
-
Page 12: Operation - Getting On Your Scooter
• Armrest Angle – Adjust the screw (Fig 7.1.5) positioned under the armpad to change an- gle of the armrest to the desired angle. • Seat Arms Width – The Width can be adjusted by adjusting the bolt at the back of the seat to move the armrest out or in (Fig 7.1.6). KOMFI-RIDER... - Page 13 FIG 7.1.1 FIG 7.1.2 FIG 7.1.3 FIG 7.1.4 FIG 7.1.5 FIG 7.1.6 KOMFI-RIDER...
- Page 14 • Towing or being pushed by another motorized vehicle. IMPORTANT! Always keep both hands on the tiller and your feet on the floor- board while operating your scooter. This driving position gives you the most control over your vehicle. KOMFI-RIDER...
- Page 15 WARNING! The anti-tip wheels are only effective on firm ground. They will sink into soft ground such as grass, snow or mud if the scooter rests on them. They will lose their effect and the scooter can tip over. KOMFI-RIDER...
-
Page 16: Operation - Driving Your Scooter
WARNING! Turning your scooter too sharply at high speed will cause loss of control and balance and will result in the scooter tipping over resulting in serious injury or death. WARNING! Do not use the scooter if the slowing device has stopped working. KOMFI-RIDER... - Page 17 WARNING! The anti-tip wheels are only effective on firm ground. They will sink into soft ground such as grass, snow or mud if the scooter rests on them. They will lose their effect and the scooter can tip over. KOMFI-RIDER...
-
Page 18: Operation - Getting Off Your Scooter
30°C are not recommended for charging as well as low temperatures below 10°C. • Protect your charger from sources of heat such as heaters and direct sunlight. If the battery charger overheats, charging current will be reduced and the charging process de- layed. KOMFI-RIDER... - Page 19 WARNING! Risk of explosion and destruction of batteries if the wrong battery charger is used. Only every use the battery charger supplied with your vehicle, or a charger that has been approved by Komfi-Rider. WARNING! Never attempt to open or disassemble the charger. If the battery charger does not appear to be working correctly, contact your authorized provid- WARNING! Risk of electric shock and damage to the battery charger if it gets wet.
- Page 20 CAUTION! Lifting weight beyond your physical capability may result in personal injury. Ask for assistance when necessary while disassembling or assembling your scooter. WARNING! Remove the key for the key switch before you disassemble your scooter! KOMFI-RIDER...
- Page 21 If the seat is not straight on the seat post, you will not be able to lock the seat correctly. • Replace the basket – stand in front of your scooter, with both hands hold the basket and place onto the basket bracket. KOMFI-RIDER...
-
Page 22: Emi
• Be aware that adding accessories or components or modifying your scooter may make it more susceptible to EMI / RFI; WARNING! Turn off your scooter as soon as it is safely possible if unintended or uncontrollable motion occurs or if unintended park brake release occurs. KOMFI-RIDER... -
Page 23: Daily Checking
This unique number will enable your authorized supplier to confirm with Komfi-Rider if necessary, the age of you scooter and when it was purchased. KOMFI-RIDER... -
Page 24: Maintenance & Storage
2. Defective or worn out battery 2. Load test batteries. If necessary 3. Cold weather reduces battery replace. life 3. Allow batteries to reach room 4. Defective charger temperature and then fully re- charge 4. Contact your Scooter Dealer KOMFI-RIDER... -
Page 25: Flash Codes
• Check the splitter connectors between the front and driving back sections of the scooter. • Contact your service agent. Other internal errors. Scooter • Check all wiring connections including main battery stops connections. driving • The controller needs replacing. • Contact your service agent. KOMFI-RIDER... -
Page 26: Warranty
BATTERIES Batteries are covered by a six (6) month warranty from the original manufacture and a further six (6) month warranty at the discretion of Komfi-Rider. Note: Gradual deterioration in performance due to batteries being left in a discharged state, left in cold conditions for long periods of time or worn out through heavy use is not covered. - Page 27 This warranty only covers failures due to defects in materials or workmanship which occur during normal use and does not cover damage that occurs in shipment or failures which are caused by products not supplied by Komfi-Rider or failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, commercial use or by anyone other than an authorized dealer, or damage that is attributable to the acts of God.
- Page 28 Manufacture: Komfi-Rider, Fernwood Estate, Shillinglee Road, Surrey, GU8 4SX Authorized Dealer:...
