Skippa
Mobility Scooter
Owner Manual
Page 1
Komfi Rider Skippa

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skippa and is the answer not in the manual?

Questions and answers

Summary of Contents for KOMFI-RIDER Skippa

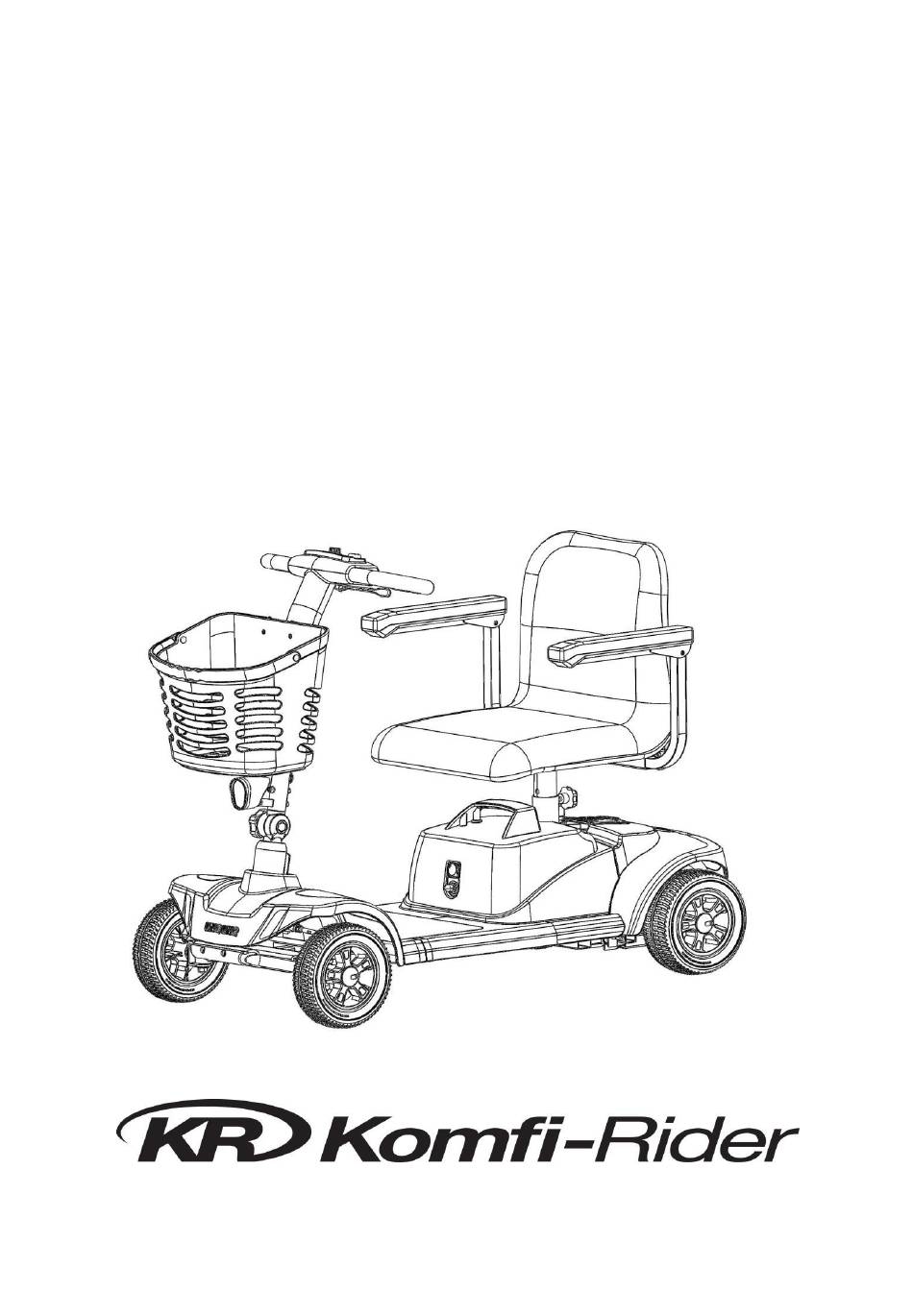

  • Page 1 Skippa Mobility Scooter Owner Manual Page 1 Komfi Rider Skippa...
  • Page 2: Table Of Contents

    ....................5 III. YOUR TRAVEL SCOOTER ................6 IV. OPERATION ....................9 V. DISASSEMBLY AND ASSEMBLY ................ VI. BATTERY AND CHARGING ................14 VII. COMFORT ADJUSTMENTS................15 VIII. CARE AND MAINTENANCE ................IX. FAULT DIAGNOSIS ..................X. WARRANTY ....................Page 2 Komfi Rider Skippa...
  • Page 3: Safety Guidelines

    The contents of this manual are based on the expectation that a mobility device expert has properly fitted the Travel Scooter to the user and has assisted the prescribing health care professional and/or the authorized Provider in the instruction process for the use of the product. Page 3 Komfi Rider Skippa...
  • Page 4 ■ Ensure the manual freewheel lever is in drive mode before sitting on the Travel Scooter. If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact Information insert in your Owner’s Package. Page 4 Komfi Rider Skippa...
  • Page 5: Specification

    Driving System Direct drive (the rear wheel) Brake System Automatic Electromagnetic brake Control Method By throttle lever; Dynamic 45A 2 x 21AH Batteries – 10-12mi/16-19km* Optional Extra – Supper Batteries *Subject to user weight and terrain Page 5 Komfi Rider Skippa...
  • Page 6: Your Travel Scooter

    ④ TILLER ADJUSTMENT KNOB ⑤BUMPER ⑥SHROUD ⑦ REAR WHEEL ⑧ ARM REST ⑨SEAT ● DETAILS ① BATTERY GAUGE ② KEY SWITCH ③ LIGHT SWITCH ④ HAND GRIP ⑤ SPEED ADJUSTMENT DIAL ⑥ THROTTLE CONTROL LEVER ⑦ HORN Page 6 Komfi Rider Skippa...
  • Page 7 Scooter up to the maximum speed you pre-set with the speed adjustment dial. Place your right hand on the right hand grip and your left hand on the left hand grip. To move forward, use either of the following: Page 7 Komfi Rider Skippa...
  • Page 8 You may now push your Travel Scooter. 3. Push the manual freewheel lever rearward to reengage the drive and the brake systems; this takes your Travel Scooter out of freewheel mode. Page 8 Komfi Rider Skippa...
  • Page 9: Operation

    3. Disengage the seat rotation lever and rotate the seat until it is facing you. 4. Make certain that the seat is secured into position. 5. Position yourself comfortably and securely in the seat. 6. Disengage the seat rotation lever and rotate the seat until you are facing forward. Page 9 Komfi Rider Skippa...
  • Page 10 5. Carefully and safely get out of the seat and stand to the side of your Travel Scooter. 6. You can leave the seat facing to the side to facilitate boarding your Travel Scooter next time. Page 10 Komfi Rider Skippa...
  • Page 11: Disassembly And Assembly

    2. Remove the seat by pulling up the seat rotation lever and lifting it straight up off the scooter. If you encounter resistance, disengage the seat rotation lever and swivel the seat back and forth while lifting up. Page 11 Komfi Rider Skippa...
  • Page 12 Hand of battery Frame Separation Press the release level with one hand and lift up the seat tube to slowly separate the two sections of the Travel Scooter. Release level Seat post Page 12 Komfi Rider Skippa...
  • Page 13 5. Reinstall the battery pack. 6. Reinstall the seat and rotate it until it is secured into place. Frame hook NOTE: Prior to moving your travel scooter, please make sure the tiller is fixed securely. Tiller Control knob Page 13 Komfi Rider Skippa...
  • Page 14: Battery And Charging

    WARNING! Do not attempt to open the battery charger case. If the battery charger does not appear to be working correctly, contact your authorized Provider. Charging your batteries The charger specification is DC24V/2.0Amp. Follow the 6 easy steps to charge your batteries safely: Page 14 Komfi Rider Skippa...
  • Page 15: Comfort Adjustments

    4. While holding the upper seat post at that height, align the adjustment holes of the upper and lower seat post. 5. Fully insert the detent pin and tighten the seat post knob. 6. Replace the battery pack and seat. Page 15 Komfi Rider Skippa...
  • Page 16 Never attempt to adjust the tiller or the seat while the Travel Scooter is in motion. 1.Loosen the tiller angle adjustment knob. Adjust the tiller to the desired position. 3. Tighten the tiller adjustment knob. Page 16 Komfi Rider Skippa...
  • Page 17: Care And Maintenance

    ■ Avoid storing your Scooter where it will be exposed to temperature extremes. WARNING! Always protect batteries from freezing temperatures and never charge a frozen battery. Charging a frozen battery can result in damage to the battery. Page 17 Komfi Rider Skippa...
  • Page 18: Fault Diagnosis

    NOTE: Your Travel Scooter will not run unless the flash code condition is resolved and the Travel Scooter has been turned off, then turned back on Page 18 Komfi Rider Skippa...
  • Page 19 Speed Pot error Contact your authorized dealer for assistance. Motor voltage error Contact your authorized dealer for assistance. Other internal errors Contact your authorized dealer for assistance. Page 19 Komfi Rider Skippa...
  • Page 20 Skippa Mobility Scooter Owner Manual Page 20 Komfi Rider Skippa...
