  • Page 1 MOBILITY SCOOTER USER MANUAL...

  • Page 2: Table Of Contents

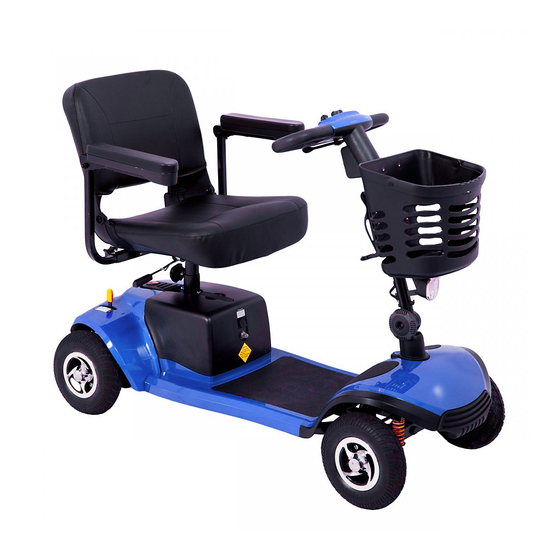

    Congratulations on the purchase of your new Vantage Mobility Scooter! The advanced design of the Vantage with its superb power, full suspension and streamline design ensures many years of enhanced trouble-free mobility. Correct use improves your mobility and quality of life.

  • Page 3: Safety Guidelines

    SAFETY GUIDELINES WARNING! An authorized Provider or qualified technician must perform the initial setup of this scooter and must perform all of the procedures in this manual. The symbols below are used throughout this owner's manual and on the scooter to identify warnings and important information.

  • Page 4: Pre Ride Safety Check

    PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. We recommend that you perform a safety check before each use to make sure your scooter operates smoothly and safely. Perform the following inspections prior to using your Travel Scooter: ■...

  • Page 5: Specification

    SPECIFICATION Model Reference Vantage Speed (Max) 4 mph (6 km/h) Travel Range (Max)* 16 mi. (26 km)* Battery 2 x 12V 22Ah AGM User Weight (Max) 26 st. (170kg) Heaviest Part When Disassembled 18 kg Total Weight W/O Batteries 45 kg...

  • Page 6: Components Of The Scooter

    COMPONENTS OF THE SCOOTER Control Panel Seat Post Retaining Screw Seat Arm Pad Freewheel Lever Seat Splitting Lever Basket Anti-Tip Wheel LED Light Rear Wheel Tiller Adjuster Knob Battery Indicator/Gauge Tiler Lock Speed Adjustment Dial Front Wheel Key Switch Seat Post Tiller Handle Charger Socket –...

  • Page 7: Operation - Control Panel

    CONTROL PANEL 18. Battery Indicator/Gauge Horn Button 19. Speed Adjustment Dial Throttle Lever Forward/Back 20. Key Switch Charger Socket – Tiller 21. Tiller Handle Light Switch Battery Indicator/Gauge: (18) Indicates the voltage of the batteries:  Green – batteries are fully charged. ...
  • Page 8 Throttle Control Lever – Forward/Back: (23) This lever allows you to control the forward speed and the reverse speed of your scooter up to the maximum speed you pre-set with the speed adjustment dial. Place your right hand on the right hand tiller handle and your left hand on the left hand tiller handle.

  • Page 9: Operation - Scooter Assembly

    Light Switch: (25) The light switch turns the front LED light on and off. і USEFUL TIP! There is also a switch on the back of the light so check that this is on if the light is not working. ASSEMBLY OF YOUR SCOOTER The scooter assembles from five main pieces: the basket, front section, rear section, seat and battery box as shown below:...
  • Page 10 TILLER ADJUSTMENT KNOB  Loosen the tiller adjustment knob by tuning anti-clockwise - see below.  Raise the tiller to the required position.  Fully tighten the adjustment knob by turning clockwise making sure the tiller is securely positioned with the teeth fully engaged together. WARNING! Never operate the scooter unless the tiller is raised, the teeth are fully engaged and the tiller adjustment bolt fully tightened and securely positioned.
  • Page 11 CONNECTING FRONT & REAR SECTIONS  Connect the front and rear sections by aligning them and gently lifting the front section onto the two hooks of the rear section. (See Fig 6.3.1) Make sure the rear section is tipping back to allow the front section to lower into the correct position.
  • Page 12 FITTING BATTERY BOX AND BASKET  Carefully lower the battery box into position on the scooter making sure the box is securely and fully connected to the battery connector. (See Fig 6.5.1)  Place basket onto bracket and make sure it is securely fixed. (See Fig 6.5.2) Fig 6.5.1 Fig 6.5.2 FITTING SEAT...
  • Page 13 FREEWHEEL LEVER  The Freewheel lever on the scooter is located on the rear section of the scooter. Before driving the scooter needs to be put into the drive position. The two positions are: 1. Drive position - is indicated by ‘Closed’ - pull the lever backwards for this position. (Fig 6.7.1) 2.

  • Page 14: Operation - Scooter Disassembly

    DISASSEMBLY OF YOUR SCOOTER The scooter disassembles into five main pieces: the basket, front section, rear section, seat and battery box as shown below: Front Section Rear Section Battery Box Seat Basket  When disassembling or assembling your scooter, always make sure you have sufficient room to move the parts around.

  • Page 15: Operation - Getting On Your Scooter

    7.5 DISCONNECTING FRONT & REAR SECTIONS  Push down the splitter lever and at the same time grip the seat post and lift upwards lifting the front section off the rear section hooks (Fig 7.5.1), disconnecting the front section from the rear (Fig 7.5.2).
  • Page 16 GETTING ONTO YOUR SCOOTER Make certain that the key is removed from the key switch. Make sure the tiller is in the un-locked position. Stand at the side of your scooter. Disengage the seat rotation lever and rotate the seat until it is facing you. Make certain that the seat is secured into position.

  • Page 17: Operation - Operating Your Scooter

    OPERATING YOUR SCOOTER STARTING  Make sure you are seated safely and properly on your scooter.  Turn the speed adjustment dial fully anti-clockwise to the slowest setting.  Insert the key into the key switch.  Turn the key clockwise to the ‘’On’’ position. ...
  • Page 18 WARNING! Never descend or climb a gradient which is greater than the recommended maximum see 3.0 Specifications°. WARNING! Never drive across (traverse) an incline, ramp etc, in any direction. WARNINIG! The anti-tip wheels are only effective on firm ground. They will sink into soft ground such as grass, snow or mud if the scooter rests on them.

  • Page 19: Operation - Getting Off Your Scooter

    10.0 GETTING OFF YOUR SCOOTER Bring your scooter to a complete stop. Remove the key from the key switch. Disengage the seat rotation lever and rotate the seat until you are facing toward the side of your scooter. Make certain that the seat is secured into position. Carefully and safely get out of the seat and stand to the side of your scooter.
  • Page 20 11.2 CHARGING YOUR BATTERIES  Make sure you read and understand the battery chargers user manual, if supplied, as well as the safety notes on the charger.  Turn off the scooter power and remove the key  Decide on which charging socket to use - You have a choice of two charging sockets: o Battery Box Socket (allows you to charge batteries ‘off board’...
  • Page 21 WARNING! Risk of electric shock and damage to the battery charger if it gets wet. Always protect the battery charger from water and always charge in a dry environment. WARNING! Risk of short circuit and electric shock if the battery charger has been damaged.

  • Page 22: Emi

    12.0 EMI / RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CB’s), amateur radios (ham radios), wireless computer left, microwave transmitters, paging transmitters etc.

  • Page 23: Daily Checking

    13.0 DAILY CHECKING Check the following items before driving. If you find anything abnormal, contact your scooter dealer for a further inspection before using it. Item Inspection Content Is it tight? Handle bar Can they be turned left or right smoothly? Speed Dial Can it be adjusted freely and function well? Does the scooter move when the lever is engaged?

  • Page 24: Basic Troubleshooting

    15.0 BASIC TROUBLESHOOTING This table is only a guide to aid you in getting your scooter operating, should you have any problems. If you are unable to get your scooter operating, please contact your Scooter Dealer. Symptom Possible Solution Scooter does 1.

  • Page 25: 16.0 Flash Codes

    16.0 FLASH CODES Scooter controller internal diagnostics The diagnostic flash codes for your scooter are designed to help you perform basic troubleshooting quickly and easily. A diagnostic flash code flashes from the Power light in the event one of the conditions listed below develops. FLASH FAULT CONSEQUENCE...
  • Page 26 17.0 WARRANTY RRANTY WARRANTY POLICY: LIMITED WARRANTY. IMPORTANT NOTICE – TO ENSURE THIS WARRANTY IS VALIDATED IT HAS TO BE COMPLETED AND RETURNED TO ONE REHAB WITHIN 14 DAYS OF PURCHASE 17.1 TWO-YEAR LIMITED WARRANTY Two years on all structural frame components; fork, seat post, and frame. Structural Frame Components, including Main Frame Fork...

  • Page 27: Warranty

    17.4 WARRANTY EXCLUSIONS 1. ABS plastic shrouds and footrest covers (wear items are not warranted). 3. Tyres and Anti-tip Wheels (wear items are not warranted). 4. Upholstery and seating (wear items are not warranted). 5. Motor Brushes. 6. Brake Pads (wear items are not warranted). 7.
